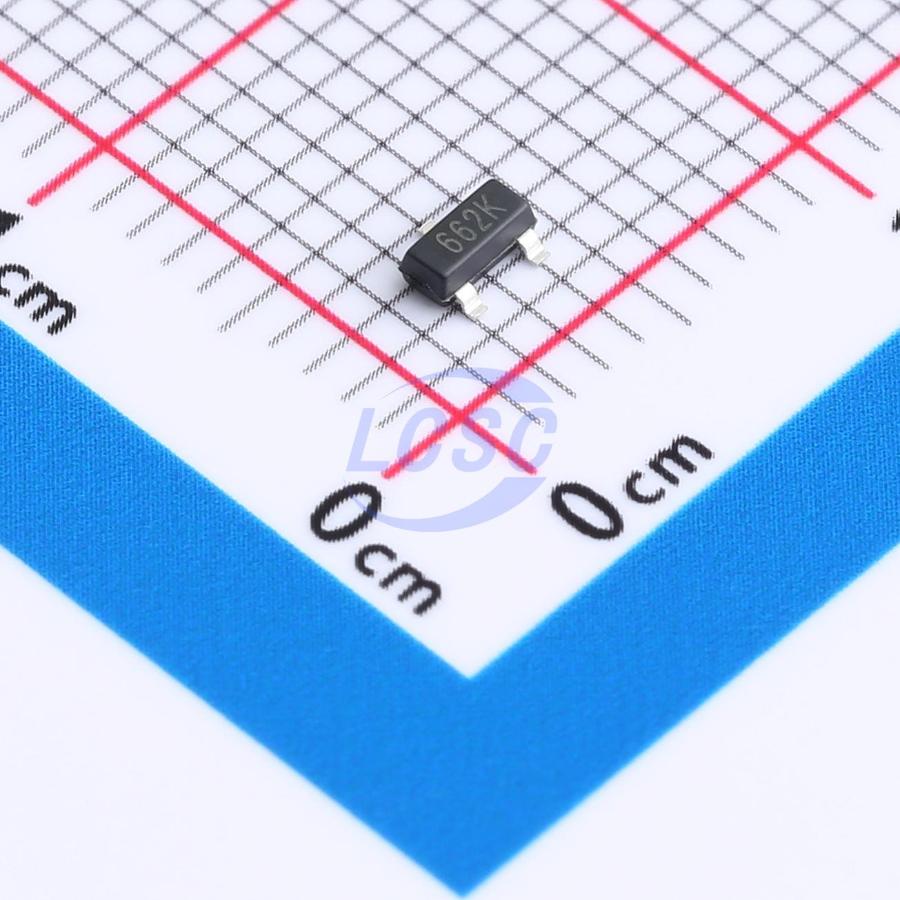

XC6206P332MR-Y
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23
SOT-23RoHSActive
High-precision, low-power three-terminal positive voltage regulator
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- XC6206P332MR-Y
- Store part #
- C47147603
- Package / case
- SOT-23
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
8,720 in stock
#C47147603
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 20+ | ₹3.16 | ₹63.20 |
| 200+ | ₹2.45 | ₹490.00 |
| 600+ | ₹2.06 | ₹1,236.00 |
| 3,000+ | ₹1.83 | ₹5,490.00 |
| 9,000+ | ₹1.63 | ₹14,670.00 |
| 21,000+ | ₹1.51 | ₹31,710.00 |
20 × ₹3.16
₹63.20
excl. GST
₹74.58 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P332MR-Y
₹63.20 for 20 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+85℃
- Supply Current (Iq)
- 5uA
- Output Configuration
- Positive
- Output Current
- 300mA
- Operating Voltage
- 8V
- Features
- Short Circuit Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 20 (multiples of 20)
- Unit weight
- 0.031 g
Overview
XC6206PxxxMR-Y is a high-accuracy, low-power-consumption, three-terminal, positive voltage regulator fabricated using CMOS and laser trimming technology. This series delivers high output current with an extremely low dropout voltage. It incorporates a current limiter circuit, a driver transistor, a precision reference voltage, and an error correction circuit. The series is compatible with low-ESR ceramic capacitors. The foldback circuit of the current limiter serves both as short-circuit protection and as an output current limiter for the output pin. The output voltage is set via internal laser trimming and can be selected from 1.2V to 5.0V in 0.1V increments. The device is available in a SOT-23 package.
Applications
- Battery-powered devices
- Reference voltage sources
- Cameras and camcorders
- Portable audio/video systems
- Mobile phones
Key features
- Low power consumption
- Low dropout voltage
- Low temperature drift coefficient
- Low quiescent current: 5uA at 6V
- Output voltage accuracy: ±2% tolerance
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 662K#C47147602YONGYUTAI · SOT-23 | YONGYUTAI | SOT-23 | 18,060 | ₹3.18 · 18,060 in stock | View |
 | XC6206P332MR#C2897477YONGYUTAI · SOT-23-3L | YONGYUTAI | SOT-23-3L | 4,940 | ₹5.16 · 4,940 in stock | View |
