YONGYUTAIDatasheet (PDF)

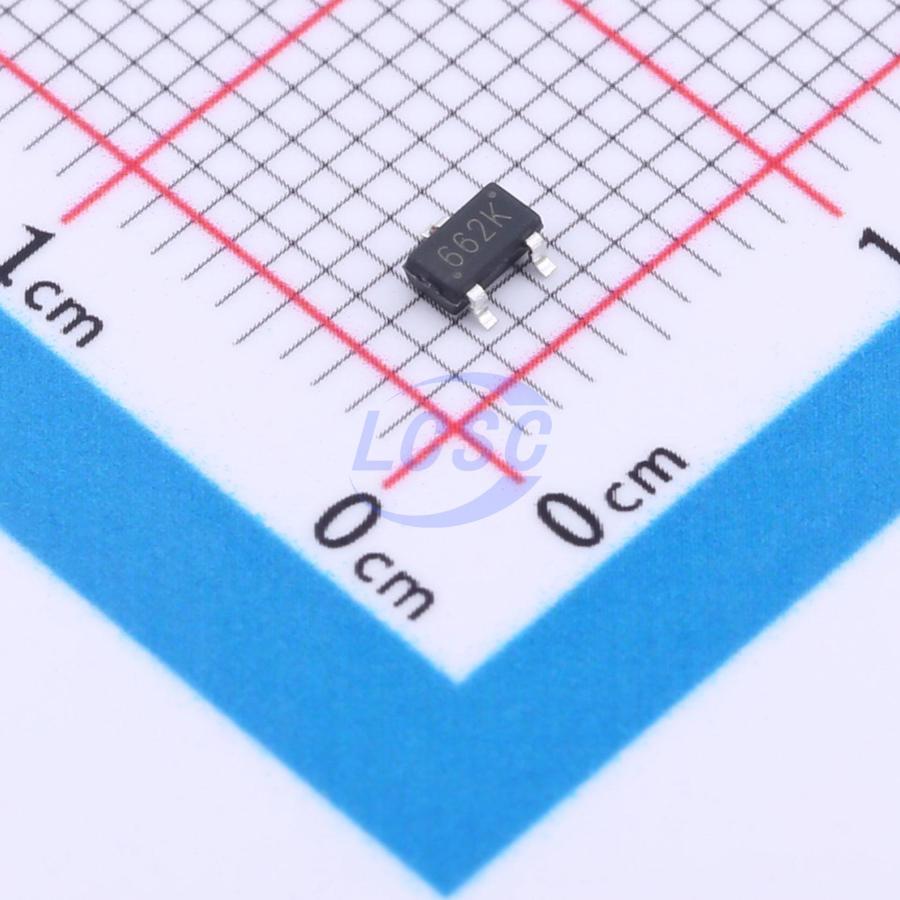

XC6206P332MR
Linear Voltage Regulator IC Positive Fixed 1 Output 300mA SOT-23-3L
SOT-23-3LRoHSActive
High-precision, low-power positive voltage regulator
- Manufacturer
- YONGYUTAI
- Manufacturer part #
- XC6206P332MR
- Store part #
- C2897477
- Package / case
- SOT-23-3L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,940 in stock
#C2897477
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.16 | ₹51.60 |
| 100+ | ₹4.10 | ₹410.00 |
| 300+ | ₹3.59 | ₹1,077.00 |
| 3,000+ | ₹3.20 | ₹9,600.00 |
| 6,000+ | ₹2.88 | ₹17,280.00 |
| 9,000+ | ₹2.73 | ₹24,570.00 |
10 × ₹5.16
₹51.60
excl. GST
₹60.89 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
XC6206P332MR
₹51.60 for 10 + GST
Specifications
- Output Voltage
- 3.3V
- Number of Outputs
- 1
- Operating Temperature
- -40℃~+125℃@(Tj)
- Supply Current (Iq)
- 8uA
- Output Configuration
- Positive
- Operating Voltage
- 6V
- Output Current
- 300mA
- Features
- Short Circuit Protection;Over Current Protection
- Output Type
- Fixed
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.035 g
Overview
The XC6206PxxxMR series is a high-precision, low-power, high-voltage, positive voltage regulator IC fabricated using CMOS process technology and laser trimming. It maintains a very low dropout voltage even under output current conditions. The chip integrates a current limiting circuit, a driver transistor, a high-precision reference voltage source, and an error correction circuit. Low-ESR ceramic capacitors are supported. The return circuit of the current limiter provides short-circuit protection for both the current limiter and the output pin. Through laser trimming technology, the output voltage can be set in the range of 1.2V to 5.0V in 0.1V increments.
Applications
- Cordless telephone equipment
- Wireless control systems
- Portable/handheld computers
- Portable consumer devices
- Portable instruments
- Electronic equipment
- Automotive electronics
- Voltage reference sources
Key features
- High accuracy output voltage: ±2%
- Output voltage: 1.2V to 5.0V (step 0.1V)
- Maximum operating voltage: 6V
- Ultra-low quiescent current (Typ. = 8.0μA)
- High load capability: Iout = 300mA at Vin = 4.3V and Vout = 3.3V
- Ultra-low dropout voltage: 0.2V at 90mA and 0.40V at 200mA
- Good input stability
- Low temperature coefficient suitable for use as regulator and reference voltage in battery-powered systems
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 662K#C47147602YONGYUTAI · SOT-23 | YONGYUTAI | SOT-23 | 18,060 | ₹3.18 · 18,060 in stock | View |
 | XC6206P332MR-Y#C47147603YONGYUTAI · SOT-23 | YONGYUTAI | SOT-23 | 8,720 | ₹3.16 · 8,720 in stock | View |
