onsemi

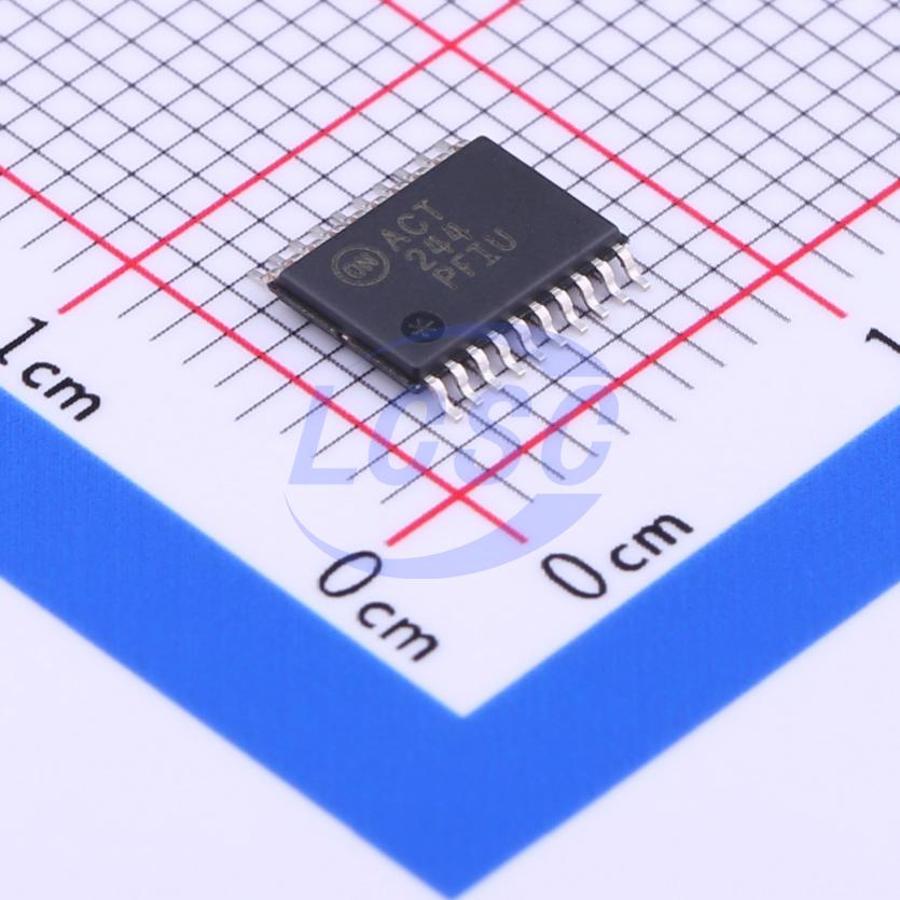

74ACT244MTCX

4.5V~5.5V 4 2 6.5ns@5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS

TSSOP-20ROHS3 CompliantActive

Octal Buffer/Line Driver with 3-STATE Outputs

Manufacturer: onsemi
Manufacturer part #: 74ACT244MTCX
Store part #: C5496
Package / case: TSSOP-20
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

6,037 in stock

#C5496

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹57.54	₹57.54
10+	₹46.03	₹460.30
30+	₹41.04	₹1,231.20
100+	₹34.74	₹3,474.00
500+	₹31.70	₹15,850.00
1,000+	₹30.18	₹30,180.00

Quantity (min 1)

1 × ₹57.54

₹57.54

excl. GST

₹67.90 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74ACT244MTCX

₹57.54 for 1 + GST

Specifications

Function: Output enable
Current - Output High(IOH): 24mA
Voltage - Supply: 4.5V~5.5V
Series: 74ACT
Output Type: Tri-State
Current - Output Low(IOL): 24mA
Number of Bits per Element: 4
Channel Type: Bidirectional
Number of Elements: 2
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 40uA
Propagation Delay: 6.5ns@5V,50pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.2 g

Overview

The AC/ACT244 is an octal buffer and line driver designed to be employed as a memory address driver, clock driver and bus-oriented transmitter/receiver which provides improved PC board density.

Key features

Il(CC) and I(0Z) reduced by 50%
3-STATE outputs drive bus lines or buffer memory address registers
Outputs source/sink 24 mA
ACT244 has TTL-compatible inputs
