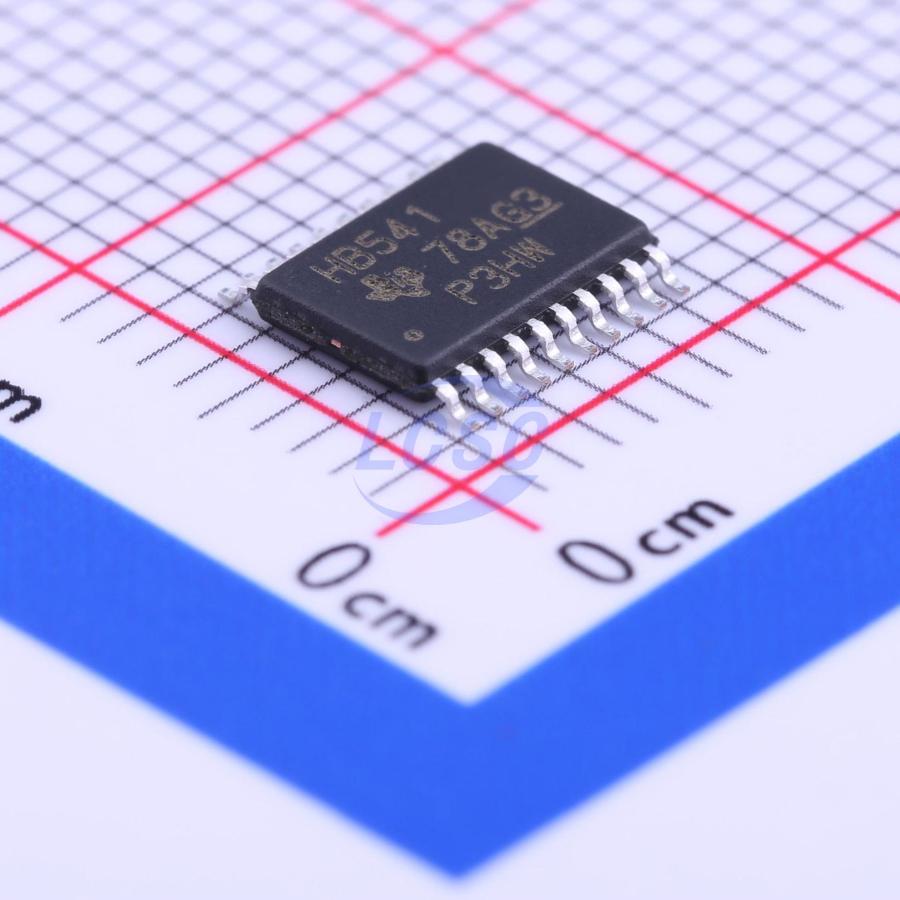

SN74AHCT541PWR
4.5V~5.5V 8 1 9.5ns@5V,50pF TSSOP-20 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-20ROHS3 CompliantActive
OCTAL BUFFERS/DRIVERS WITH 3-STATE OUTPUTS
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT541PWR
- Store part #
- C50989
- Package / case
- TSSOP-20
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
90,410 in stock
#C50989
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹49.64 | ₹248.20 |
| 50+ | ₹39.02 | ₹1,951.00 |
| 150+ | ₹34.48 | ₹5,172.00 |
| 500+ | ₹28.79 | ₹14,395.00 |
| 2,000+ | ₹22.74 | ₹45,480.00 |
| 4,000+ | ₹21.23 | ₹84,920.00 |
5 × ₹49.64
₹248.20
excl. GST
₹292.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,000 per reel
SN74AHCT541PWR
₹248.20 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 8mA
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74AHCT
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 9.5ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.25 g
Overview
The 'AHCT541 octal buffers/drivers are ideal for driving bus lines or buffer memory address registers. These devices feature inputs and outputs on opposite sides of the package to facilitate printed circuit board layout. The 3- state control gate is a 2- input AND gate with active- low inputs so that if either output- enable (OE1 or OE2) input is high, all corresponding outputs are in the high- impedance state. The outputs provide noninverted data when they are not in the high- impedance state. To ensure the high- impedance state during power up or power down, OE should be tied to VCC through a pullup resistor; the minimum value of the resistor is determined by the current- sinking capability of the driver.
Applications
- Bus line driving
- Memory address register buffering
Key features
- Inputs Are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA Per JESD 17
- ESD Protection Exceeds JESD 22
- 2000-V Human-Body Model (A114-A)
- 200-V Machine Model (A115-A)
- 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT541PW#C54411090MDD(Microdiode Semiconductor) · TSSOP-20L | MDD(Microdiode Semiconductor) | TSSOP-20L | 1,315 | ₹34.05 · 1,315 in stock | View |
 | 74AHCT541PW,118#C84548Nexperia · TSSOP-20 | Nexperia | TSSOP-20 | 15,960 | ₹28.70 · 15,960 in stock | View |
 | SN74AHCT540PWR#C7626TI · TSSOP-20 | TI | TSSOP-20 | 610 | ₹83.36 · 610 in stock | View |
 | 74VHCT541AMTCX#C903433onsemi · TSSOP-20 | onsemi | TSSOP-20 | 45 | ₹139.63 · 45 in stock | View |
 | 74VHCT240AFT(BE)#C7421306TOSHIBA · TSSOP20B | TOSHIBA | TSSOP20B | 75 | ₹72.50 · 75 in stock | View |
