74HC125D,653
2V~6V 1 4 11ns@4.5V,50pF SOIC-14 Buffers, Drivers, Receivers, Transceivers RoHS
SOIC-14ROHS3 CompliantActive

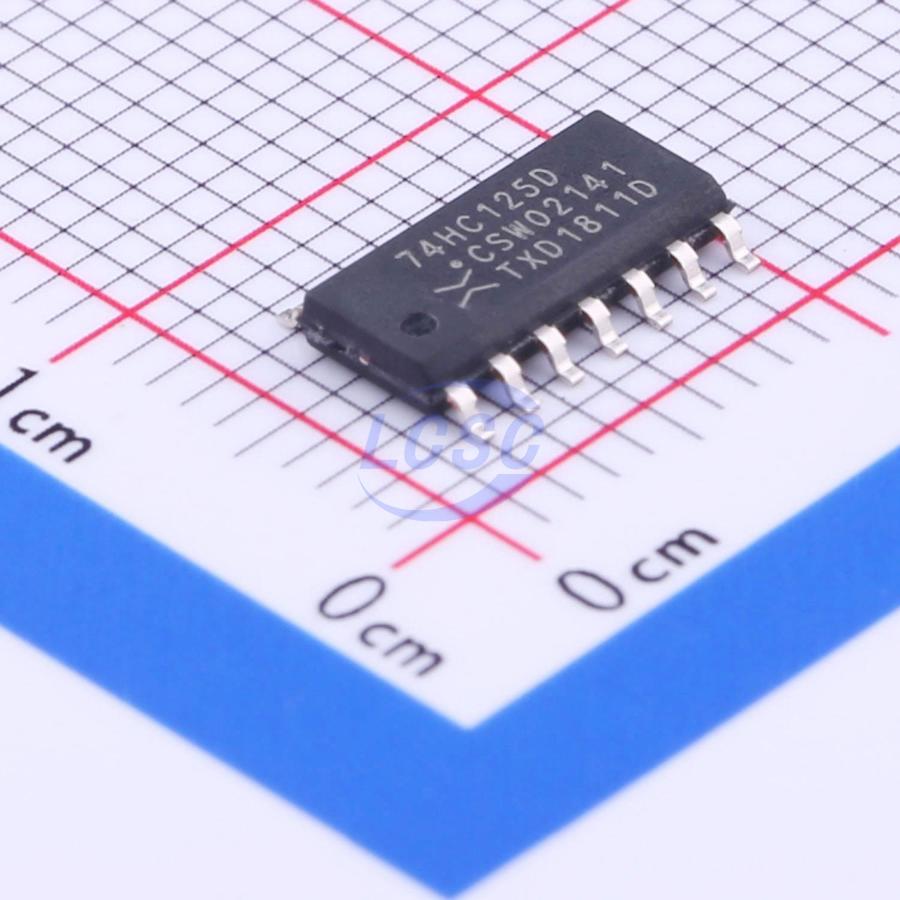

Quad buffer/line driver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC125D,653
- Store part #
- C5598
- Package / case
- SOIC-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
49,665 in stock
#C5598
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹18.95 | ₹94.75 |
| 50+ | ₹14.02 | ₹701.00 |
| 150+ | ₹11.91 | ₹1,786.50 |
| 500+ | ₹9.27 | ₹4,635.00 |
| 2,500+ | ₹8.10 | ₹20,250.00 |
| 5,000+ | ₹7.40 | ₹37,000.00 |
5 × ₹18.95
₹94.75
excl. GST
₹111.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC125D,653
₹94.75 for 5 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 160uA
- Propagation Delay
- 11ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.327 g
Overview
The 74HC125; 74HCT125 is a quad buffer/line driver with 3-state outputs controlled by the output enable inputs (nOE). A HIGH on nOE causes the outputs to assume a high impedance OFF-state. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Logic level translation
- Bus buffering
- Data transmission line driving
- Signal isolation
- Tri-state output control
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- Input levels:
- The 74HC125: CMOS levels
- The 74HCT125: TTL levels
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | CD74HC125M96#C2675777TI · SOIC-14 | TI | SOIC-14 | 22 | ₹111.81 · 22 in stock | View |
 | 74HC126D-Q100J#C458154Nexperia · SO-14 | Nexperia | SO-14 | 85 | ₹103.19 · 85 in stock | View |
 | 74HC126D,653#C5600Nexperia · SOIC-14 | Nexperia | SOIC-14 | 2,420 | ₹34.36 · 2,420 in stock | View |
 | 74HC125D#C2675676TOSHIBA · SOIC-14 | TOSHIBA | SOIC-14 | 51 | ₹55.95 · 51 in stock | View |
 | SN74HC125DR(LX)#C22436984lingxingic · SOP-14 | lingxingic | SOP-14 | 4,035 | ₹15.76 · 4,035 in stock | View |
