NexperiaDatasheet (PDF)

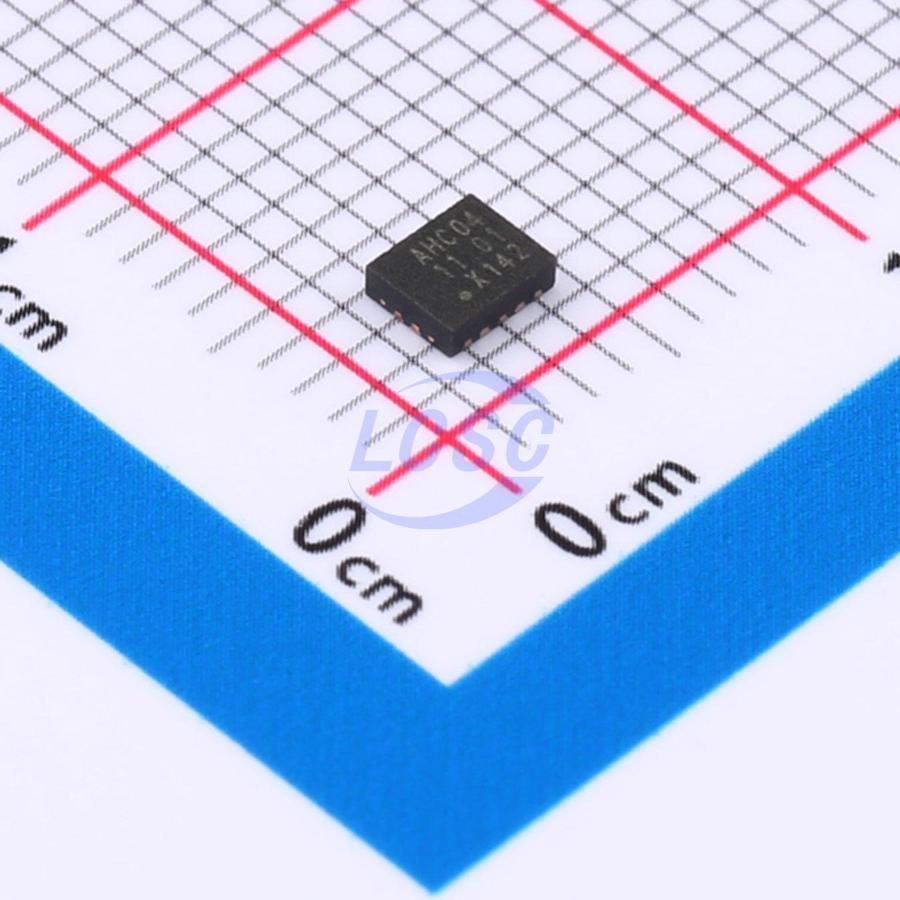

74AHC04BQ,115
StandardCMOS 2V~5.5V 7.5ns@5V,50pF 2uA 6 DHVQFN-14-EP(2.5x3) Gates and Inverters RoHS
DHVQFN-14-EP(2.5x3)ROHS3 CompliantActive
Hex inverter
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHC04BQ,115
- Store part #
- C554198
- Package / case
- DHVQFN-14-EP(2.5x3)
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,040 in stock
#C554198
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.67 | ₹123.35 |
| 50+ | ₹21.74 | ₹1,087.00 |
| 150+ | ₹20.48 | ₹3,072.00 |
| 500+ | ₹18.92 | ₹9,460.00 |
| 3,000+ | ₹18.22 | ₹54,660.00 |
| 6,000+ | ₹17.79 | ₹1,06,740.00 |
5 × ₹24.67
₹123.35
excl. GST
₹145.55 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC04BQ,115
₹123.35 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHC
- Input Type
- StandardCMOS
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;550mV
- Propagation Delay
- 7.5ns@5V,50pF
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 1.5V~3.85V
- Input Logic Level - Low
- 500mV~1.65V
- Output Logic Level - High
- 4.4V~4.5V;3.94V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 6
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.053 g
Overview
The 74AHC04; 74AHCT04 is a high-speed Si-gate CMOS device and is pin compatible with Lowpower Schottky TTL (LSTTL). It is specified in compliance with JEDEC standard No. 7-A. The 74AHC04; 74AHCT04 provides six inverting buffers.
Applications
- Logic level translation
- Signal buffering
- Signal inversion
Key features
- Balanced propagation delays
- Inputs accept voltages higher than VCC
- Input levels: For 74AHC04: CMOS level; For 74AHCT04: TTL level
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V; CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 °C to +85 °C and from -40 °C to +125 °C
