DIODESDatasheet (PDF)

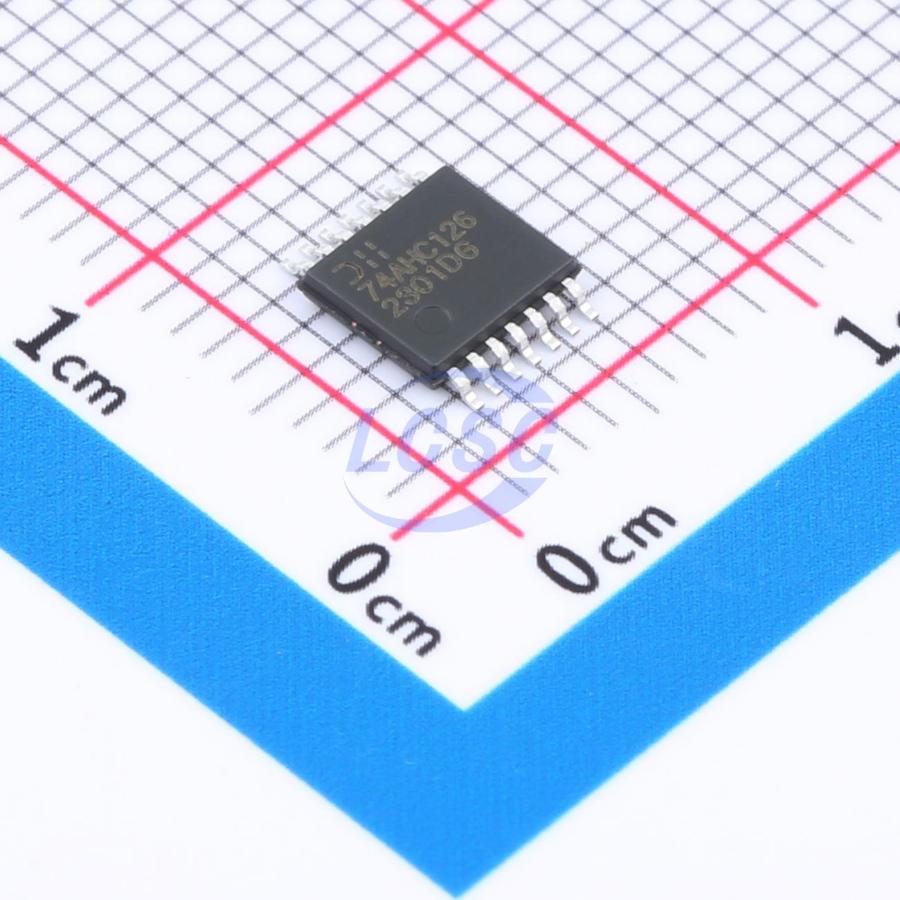

74AHC126T14-13
Schmitt trigger 2V~5.5V 1 4 4.3ns@4.5V,50pF TSSOP-14 Buffers, Drivers, Receivers, Transceivers RoHS
TSSOP-14ROHS3 CompliantActive
QUADRUPLE 3-STATE BUFFERS
- Manufacturer
- DIODES
- Manufacturer part #
- 74AHC126T14-13
- Store part #
- C842280
- Package / case
- TSSOP-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,985 in stock
#C842280
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹24.61 | ₹123.05 |
| 50+ | ₹19.55 | ₹977.50 |
| 150+ | ₹17.40 | ₹2,610.00 |
| 500+ | ₹14.70 | ₹7,350.00 |
| 2,500+ | ₹13.49 | ₹33,725.00 |
| 5,000+ | ₹12.77 | ₹63,850.00 |
5 × ₹24.61
₹123.05
excl. GST
₹145.20 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74AHC126T14-13
₹123.05 for 5 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 2V~5.5V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Function
- Output enable;Level shifting
- Current - Output High(IOH)
- 8mA
- Series
- 74AHC
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Propagation Delay
- 4.3ns@4.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.295 g
Overview
The 74AHC126 provides four independent buffer gates with 3-state outputs. Each buffer has a separate enable pin that when driven with a low logic level places the corresponding output in the high-impedance state. The device is designed for operation with a power supply range of 2.0V to 5.5V. The inputs are tolerant to 5.5V allowing this device to be used in a mixed voltage environment.
Applications
- General Purpose Logic
- Wide Array of Products, such as: PCs, Networking, Notebooks, Netbooks
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set Top Box
Key features
- Wide Supply Voltage Range from 2.0V to 5.5V
- Outputs Sink or Source 8mA at VCC = 4.5V
- CMOS Low Power Consumption
- Schmitt Trigger Action at All Inputs
- Inputs can be Driven by 3.3V or 5.5V Allowing for Voltage Translation Applications
- ESD Protection Exceeds JESD 22 200V Machine Model (A115) 2000V Human Body Model (A114) Exceeds 1000V Charged Device Model (C101)
- Latch-Up Exceeds 250mA per JESD 78, Class II
- Range of Package Options SO-14 and TSSOP-14
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. "Green" Device
