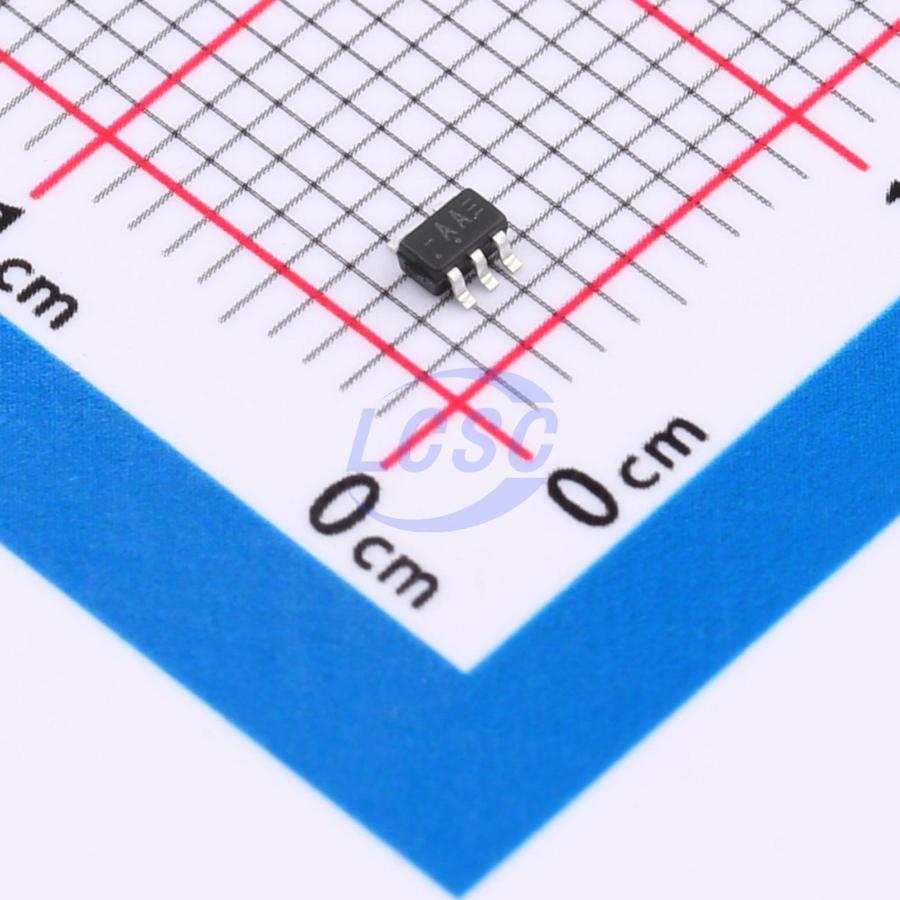

74AHC1G00GW
1uA 2V~5.5V 5.2ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
Single 2-Input NAND Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G00GW
- Store part #
- C19829640
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,890 in stock
#C19829640
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.89 | ₹58.90 |
| 100+ | ₹4.64 | ₹464.00 |
| 300+ | ₹4.02 | ₹1,206.00 |
| 3,000+ | ₹3.55 | ₹10,650.00 |
| 6,000+ | ₹3.18 | ₹19,080.00 |
| 9,000+ | ₹2.99 | ₹26,910.00 |
10 × ₹5.89
₹58.90
excl. GST
₹69.50 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G00GW
₹58.90 for 10 + GST
Specifications
- Input Logic Level - High
- 2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Propagation Delay
- 5.2ns@5V,50pF
- Output Logic Level - Low
- 100mV;550mV
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs, Networking, Notebooks, Netbooks, PDAs, Tablet Computers, E-readers
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set-Top Box
- Cell Phones, Personal Navigation / GPS
- MP3 Players, Cameras, Video Recorders
Key features
- Operation Voltage Range: 2~5.5V
- Low Power Dissipation: ICC = 1.0μA (Max)
- High Speed: tPD = 4.3ns (Typ)
- SOT23-5 Package Available
- SOT353 Package Available
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | TP74AHC1G00C5#C52205177TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹7.38 · 2,990 in stock | View |
 | 74AHC1G00SE-TP#C52098183TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,990 | ₹6.42 · 2,990 in stock | View |
 | SN74AHC1G00DCKR#C19829634TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 5,910 | ₹7.03 · 5,910 in stock | View |
 | MC74VHC1G132DFT1G-TP#C53100498TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,160 | ₹6.34 · 2,160 in stock | View |
 | MC74VHC1G00DFT1G-TP#C53100506TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,820 | ₹6.35 · 2,820 in stock | View |
