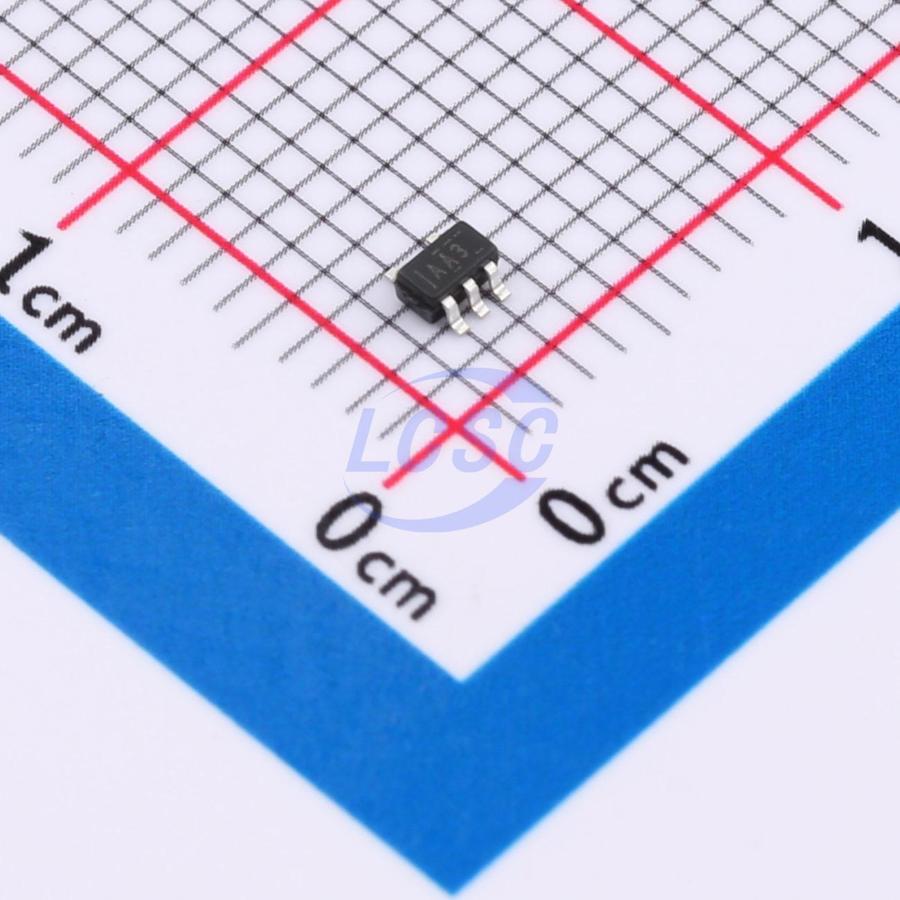

SN74AHC1G00DCKR
1uA 2V~5.5V 7.5ns@5V,50pF SOT-353 Gates and Inverters
SOT-353RoHSActive
Single 2-Input NAND Gate
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- SN74AHC1G00DCKR
- Store part #
- C19829634
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
5,880 in stock
#C19829634
Stock & price checked 20 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹7.03 | ₹70.30 |
| 100+ | ₹5.46 | ₹546.00 |
| 300+ | ₹4.68 | ₹1,404.00 |
| 3,000+ | ₹4.10 | ₹12,300.00 |
| 6,000+ | ₹3.64 | ₹21,840.00 |
| 9,000+ | ₹3.41 | ₹30,690.00 |
10 × ₹7.03
₹70.30
excl. GST
₹82.95 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHC1G00DCKR
₹70.30 for 10 + GST
Specifications
- Input Logic Level - High
- 2.1V;3.85V
- Input Logic Level - Low
- 900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 2.9V;4.4V;3.94V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Output Logic Level - Low
- 360mV;550mV
- Propagation Delay
- 7.5ns@5V,50pF
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.027 g
Overview
The SN74AHC1G00 is a 2-input NAND gate which provides the Function Y = A(overline) × B(overline)
Applications
- Voltage Level Shifting
- General Purpose Logic
- Power Down Signal Isolation
- PCs
- Networking
- Notebooks
- Netbooks
- PDAs
- Tablet Computers
- E-readers
- Computer Peripherals
- Hard Drives
- CD/DVD ROM
- TV
- DVD
- DVR
- Set-Top Box
- Cell Phones
- Personal Navigation / GPS
- MP3 Players
- Cameras
- Video Recorders
Key features
- Operation Voltage Range: 2 ~ 5.5V
- Low Power Dissipation: ICC = 1.0μA (Max)
- High Speed: tPD = 4.3ns (Typ)
- ESD Protection Exceeds JESD 22 - 2000-V Human-Body Model (A114-A) - 1000-V Charged-Device Model (C101)
- SOT23-5 Package Available
- SOT353 Package Available
