NexperiaDatasheet (PDF)

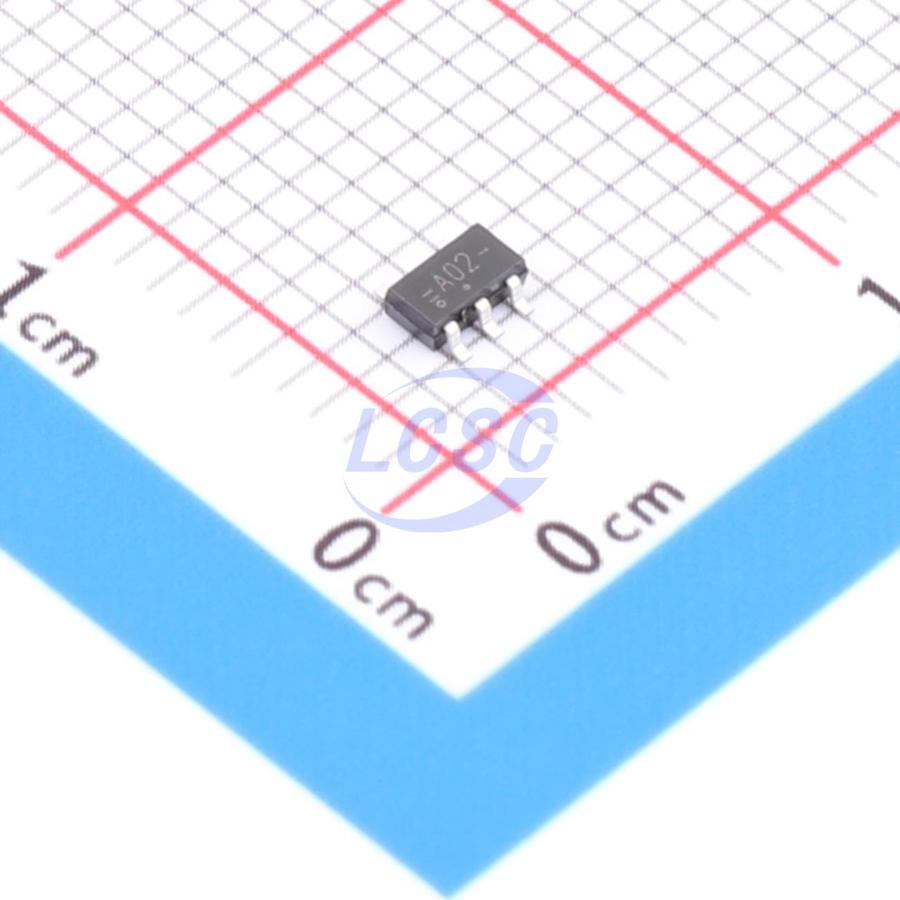

74AHC1G02GV,125
StandardCMOS 2V~5.5V 7.5ns@5V,50pF 1uA SOT-753 Gates and Inverters RoHS
SOT-753ROHS3 CompliantActive
2-input NOR gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHC1G02GV,125
- Store part #
- C554269
- Package / case
- SOT-753
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,895 in stock
#C554269
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.07 | ₹80.35 |
| 50+ | ₹12.63 | ₹631.50 |
| 150+ | ₹10.91 | ₹1,636.50 |
| 500+ | ₹9.62 | ₹4,810.00 |
| 3,000+ | ₹8.59 | ₹25,770.00 |
| 6,000+ | ₹8.07 | ₹48,420.00 |
5 × ₹16.07
₹80.35
excl. GST
₹94.81 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G02GV,125
₹80.35 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 7.5ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.063 g
Overview
The 74AHC1G02; 74AHCT1G02 is a single 2-input NOR gate. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Key features
- Wide supply voltage range from 2.0 to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Symmetrical output impedance
- Balanced propagation delays
- Input levels:
- For 74AHC1G02: CMOS level
- For 74AHCT1G02: TTL level
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G02W5-7#C842262DIODES · SOT-25 | DIODES | SOT-25 | 2,025 | ₹10.16 · 2,025 in stock | View |
 | SN74AHC1G02DBVR#C7463TI · SOT-23-5 | TI | SOT-23-5 | 14,710 | ₹13.40 · 14,710 in stock | View |
 | 74AHC1G02QW5-7#C4468981DIODES · SOT-25 | DIODES | SOT-25 | 15 | ₹9.18 · 15 in stock | View |
 | U74AHC1G02G-AE5-R#C22364923UTC · SOT-23-5 | UTC | SOT-23-5 | 1,790 | ₹6.89 · 1,790 in stock | View |
 | SN74AHC1G02DBVR#C41348119TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,330 | ₹5.85 · 3,330 in stock | View |
