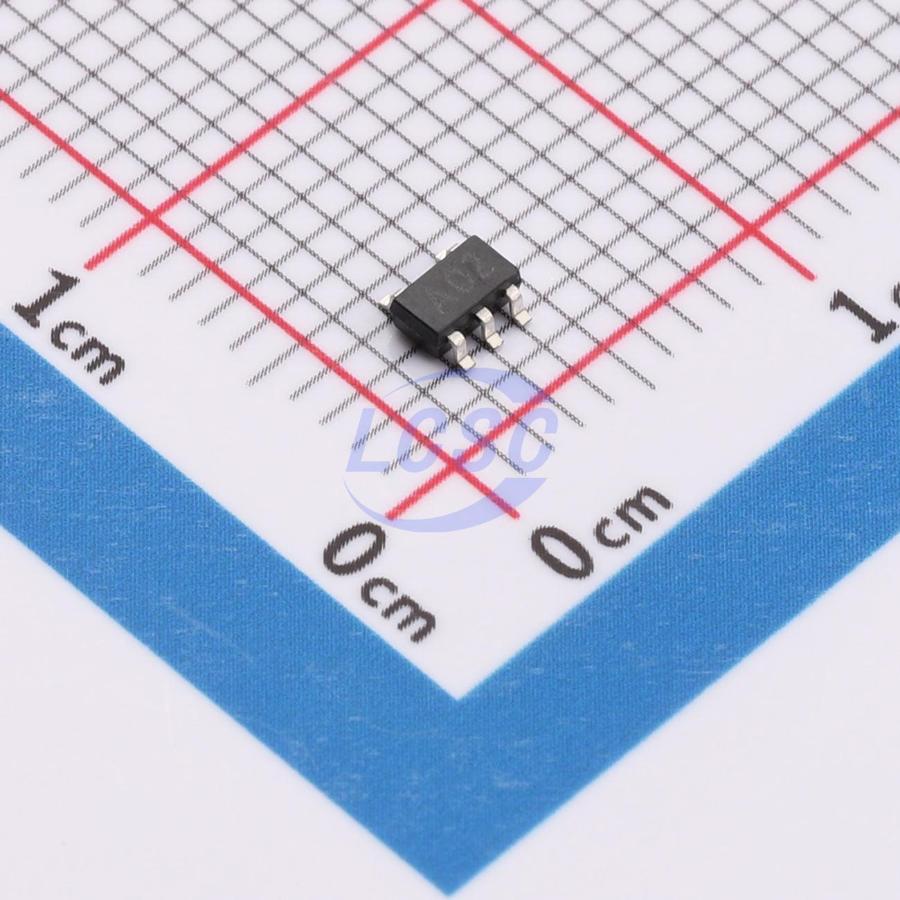

74AHC1G02W5-TP
1uA 2V~5.5V 11.4ns@3.3V,50pF SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AHC1G02W5-TP
- Store part #
- C52098172
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,910 in stock
#C52098172
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.85 | ₹58.50 |
| 100+ | ₹4.59 | ₹459.00 |
| 300+ | ₹3.97 | ₹1,191.00 |
| 3,000+ | ₹3.51 | ₹10,530.00 |
| 6,000+ | ₹3.14 | ₹18,840.00 |
| 9,000+ | ₹2.95 | ₹26,550.00 |
10 × ₹5.85
₹58.50
excl. GST
₹69.03 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G02W5-TP
₹58.50 for 10 + GST
Specifications
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Logic Family
- 74AHC
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.9V~3V;4.4V~4.5V
- Quiescent Current(Iq)
- 1uA
- Voltage - Supply
- 2V~5.5V
- Number of Channels
- 1;2
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 11.4ns@3.3V,50pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
74AHC1G02 is a single 2-input NOR gate with the function Y = NOT(A+B).
Applications
- Voltage level translation
- General-purpose logic
- Power-down signal isolation
- Personal computers
- Network equipment
Key features
- Operating voltage range: 2.0~5.5V
- Low power consumption
- High noise immunity
- Balanced propagation delay
- Operating temperature range: -40 to +125°C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G02GV#C41348121TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 1,900 | ₹5.20 · 1,900 in stock | View |
 | MC74VHC1G02DTT1G-TP#C53100493TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,960 | ₹5.66 · 2,960 in stock | View |
 | SN74AHC1G02DBVR#C41348119TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 3,330 | ₹5.85 · 3,330 in stock | View |
 | TP74AHC1G02S5#C52205180TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,980 | ₹6.77 · 2,980 in stock | View |
 | 74HC1G02GV#C52205092TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,080 | ₹5.77 · 4,080 in stock | View |
