TECH PUBLICDatasheet (PDF)

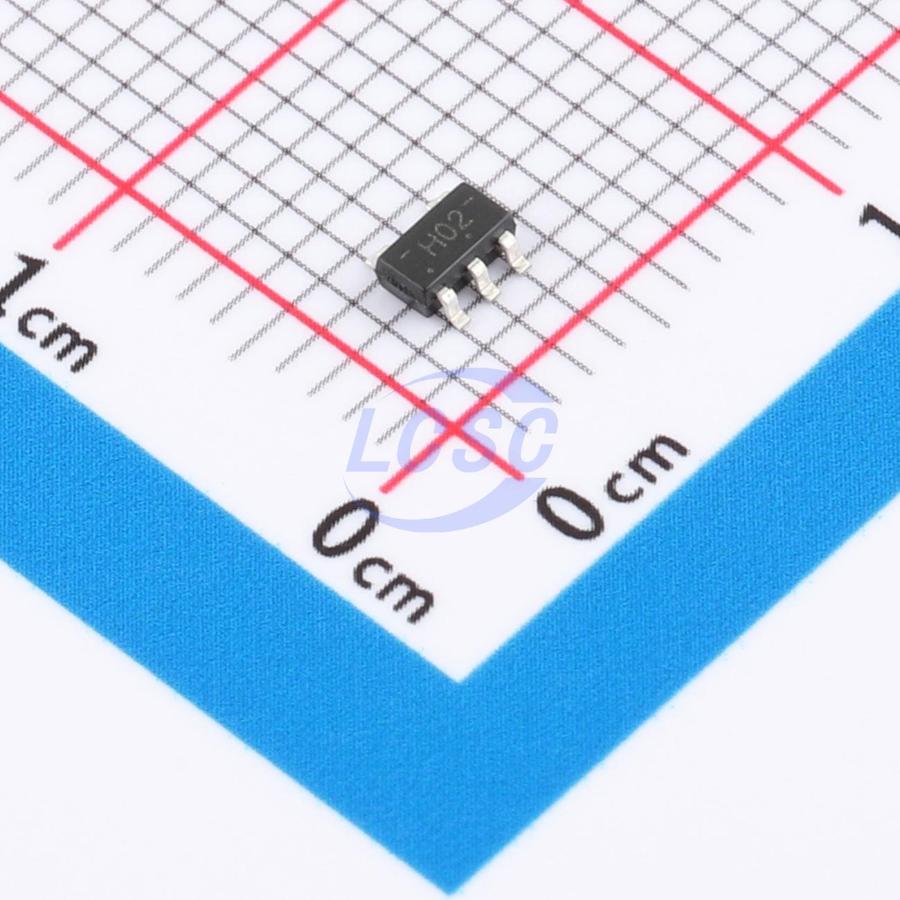

74HC1G02GV
2V~6V 21ns@6V,50pF 1uA SOT-23-5 Gates and Inverters
SOT-23-5RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74HC1G02GV
- Store part #
- C52205092
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
4,080 in stock
#C52205092
Stock & price checked 43 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹5.77 | ₹57.70 |
| 100+ | ₹4.54 | ₹454.00 |
| 300+ | ₹3.93 | ₹1,179.00 |
| 3,000+ | ₹3.47 | ₹10,410.00 |
| 6,000+ | ₹3.10 | ₹18,600.00 |
| 9,000+ | ₹2.92 | ₹26,280.00 |
10 × ₹5.77
₹57.70
excl. GST
₹68.09 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74HC1G02GV
₹57.70 for 10 + GST
Specifications
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;260mV
- Propagation Delay
- 21ns@6V,50pF
- Input Logic Level - High
- 1.5V;3.15V;4.2V
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - Low
- 500mV;1.35V;1.8V
- Output Logic Level - High
- 1.9V;4.4V;4.18V;5.9V;5.68V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 2.6mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 2.6mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.036 g
Overview
The 74HC1G02 is a high-speed CMOS 2-input NOR gate fabricated using silicon gate CMOS technology. It combines the low power consumption of CMOS with speed performance comparable to the LS-TTL series. The internal three-stage buffered circuit architecture provides wide noise margins and stable output.
Key features
- Basic gate function as part of Renesas unified logic series product line
- Embossed carrier tape packaging for high-speed automated placement
- Electrical characteristics equivalent to 74HC1G02
- Supply voltage range: 2 ~ 6 V
- Operating temperature range: -40 ~ +85°C
- |IOH| = IOL = 2mA (min)
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | MC74HC1G02DTT1G-TP#C52205118TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,610 | ₹5.72 · 2,610 in stock | View |
 | TP74LVC1G02S5#C42460125TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,320 | ₹7.44 · 4,320 in stock | View |
 | TC7S02F#C41348274TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,290 | ₹6.06 · 2,290 in stock | View |
 | NC7S02M5X#C41348080TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 4,960 | ₹6.72 · 4,960 in stock | View |
 | MC74VHC1G02DTT1G-TP#C53100493TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,960 | ₹5.66 · 2,960 in stock | View |
