DIODES

74AHC1G04W5-7

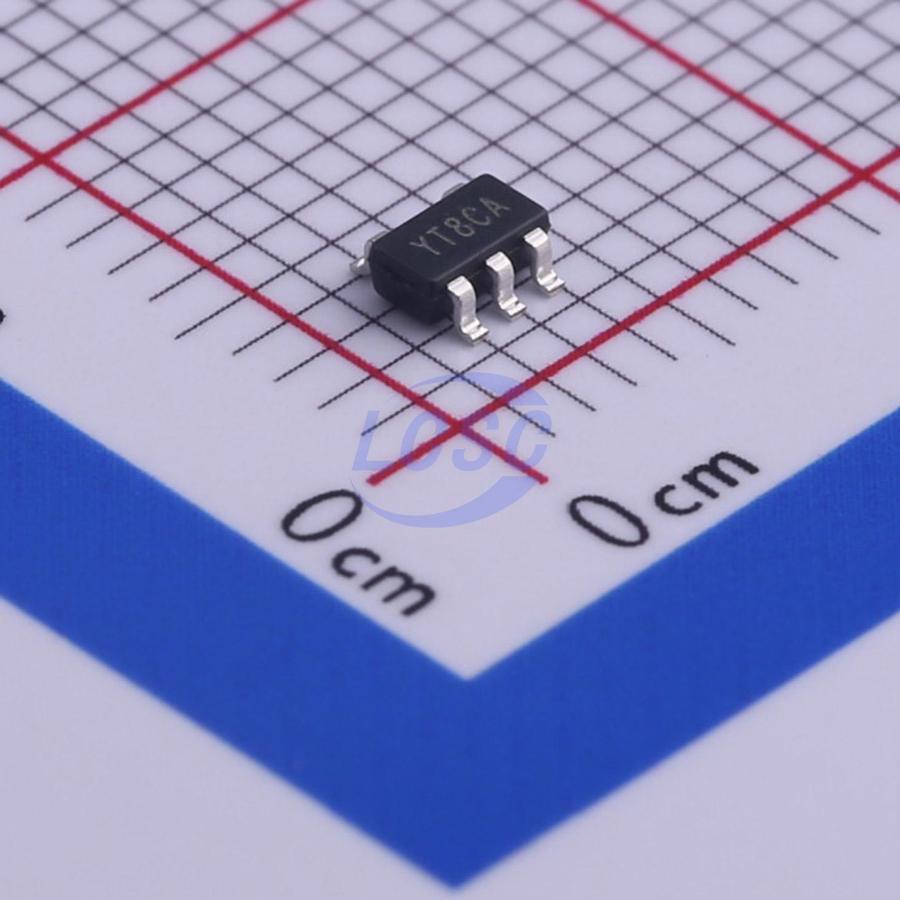

Schmitt trigger 2V~5.5V 7.5ns@5V,50pF 1uA 1 SOT-25 Gates and Inverters RoHS

SOT-25ROHS3 CompliantActive

SINGLE INVERTER GATE

Manufacturer: DIODES
Manufacturer part #: 74AHC1G04W5-7
Store part #: C460486
Package / case: SOT-25
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,610 in stock

#C460486

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹14.01	₹140.10
100+	₹11.22	₹1,122.00
300+	₹9.83	₹2,949.00
3,000+	₹7.42	₹22,260.00
6,000+	₹6.59	₹39,540.00
9,000+	₹6.17	₹55,530.00

Quantity (min 10, multiples of 10)

10 × ₹14.01

₹140.10

excl. GST

₹165.32 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHC1G04W5-7

₹140.10 for 10 + GST

Specifications

output type: Push-pull
Logic Family: 74AHC
Input Type: Schmitt trigger
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV;550mV
Propagation Delay: 7.5ns@5V,50pF
Features: Noise suppression function
Operating Temperature: -40℃~+125℃
Input Logic Level - High: 1.5V~3.85V
Input Logic Level - Low: 500mV~1.65V
Output Logic Level - High: 1.9V;2.9V;4.4V
Quiescent Current(Iq): 1uA
Number of Channels: 1
Current - Output High(IOH): 8mA
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.023 g

Overview

The 74AHC1G04 is a single inverter gate with a standard push-pull output. The device is designed for operation with a power supply range of 2.0V to 5.5V. The gate performs the positive Boolean function: Pin Assignments Y = A(overline)

Applications

General Purpose Logic
Wide array of products such as:
PCs, networking, notebooks, netbooks, PDAs
Computer peripherals, hard drives, CD/DVD ROM
TV, DVD, DVR, set top box
Personal Navigation / GPS
MP3 players, Cameras, Video Recorders

Key features

Supply Voltage Range from 2.0V to 5.5V
±8 mA Output Drive at 5.0V
CMOS low power consumption
Schmitt Trigger Action at Input Makes the Circuit Tolerant for Slower Input Rise and Fall Time
ESD Protection per JESD 22
Exceeds 200-V Machine Model (A115-A)
Exceeds 2000-V Human Body Model (A114-A)
Exceeds 1000-V Charged Device Model (C101C)
Latch-Up Exceeds 100mA per JESD 78, Class II
SOT25 and SOT353: Assembled with “Green” Molding Compound (no Br, Sb)
Lead Free Finish / RoHS Compliant
