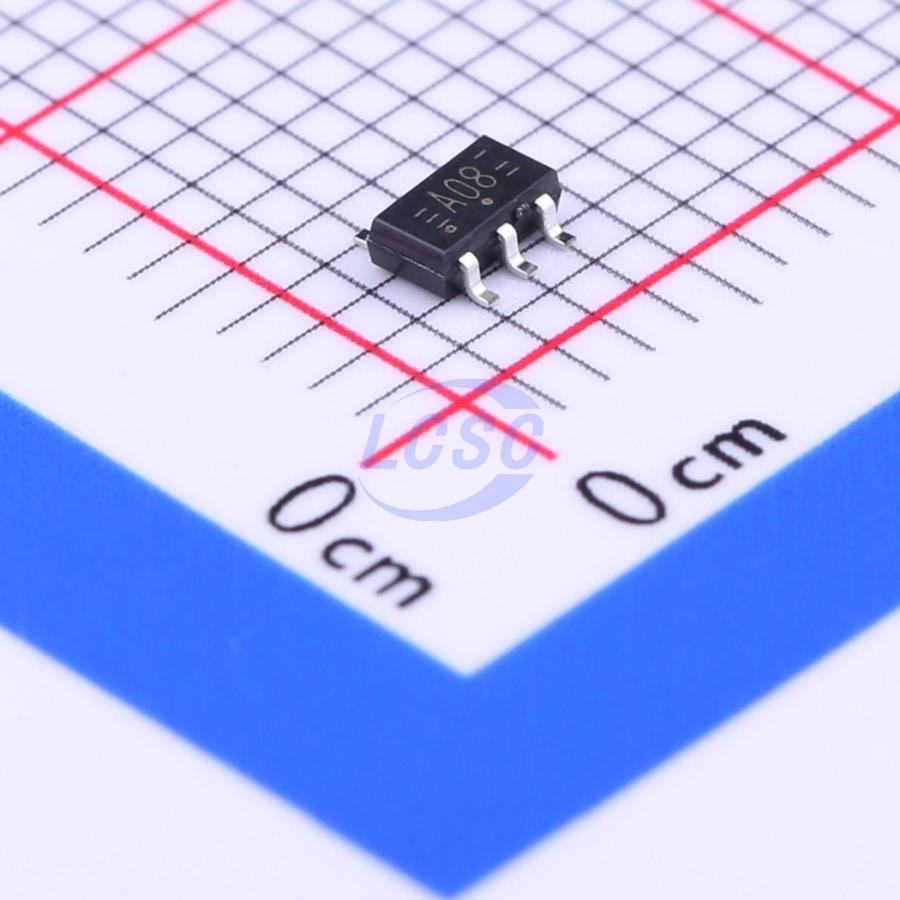

74AHC1G08GV,125
StandardCMOS 2V~5.5V 7.9ns@5V,50pF 1uA SC-74A Gates and Inverters RoHS
SC-74AROHS3 CompliantActive
2-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHC1G08GV,125
- Store part #
- C12487
- Package / case
- SC-74A
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,780 in stock
#C12487
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.71 | ₹153.55 |
| 50+ | ₹24.41 | ₹1,220.50 |
| 150+ | ₹21.70 | ₹3,255.00 |
| 500+ | ₹18.34 | ₹9,170.00 |
| 3,000+ | ₹16.83 | ₹50,490.00 |
| 6,000+ | ₹15.93 | ₹95,580.00 |
5 × ₹30.71
₹153.55
excl. GST
₹181.19 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G08GV,125
₹153.55 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;550mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;2.9V;4.4V;2.58V;3.94V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.029 g
Overview
The 74AHC1G08; 74AHCT1G08 is a single 2-input AND gate. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Key features
- Wide supply voltage range from 2.0 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Symmetrical output impedance
- Balanced propagation delays
- Input levels:
- For 74AHC1G08: CMOS level
- For 74AHCT1G08: TTL level
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC1G08DB(LX)#C22469963lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 2,370 | ₹6.91 · 2,370 in stock | View |
 | 74AHC1G08GV-Q100,1#C554279Nexperia · SOT-753 | Nexperia | SOT-753 | 2,810 | ₹25.84 · 2,810 in stock | View |
 | MC74VHC1G08DBVT1G#C891462onsemi · SC-74A-5 | onsemi | SC-74A-5 | 55 | ₹10.46 · 55 in stock | View |
 | MC74VHC1G08DTT1G#C457628onsemi · TSOP-5-1.5mm | onsemi | TSOP-5-1.5mm | 140 | ₹36.38 · 140 in stock | View |
 | XC7SH08GV,125#C553870Nexperia · SC-74A | Nexperia | SC-74A | 100 | ₹110.34 · 100 in stock | View |
