NexperiaDatasheet (PDF)

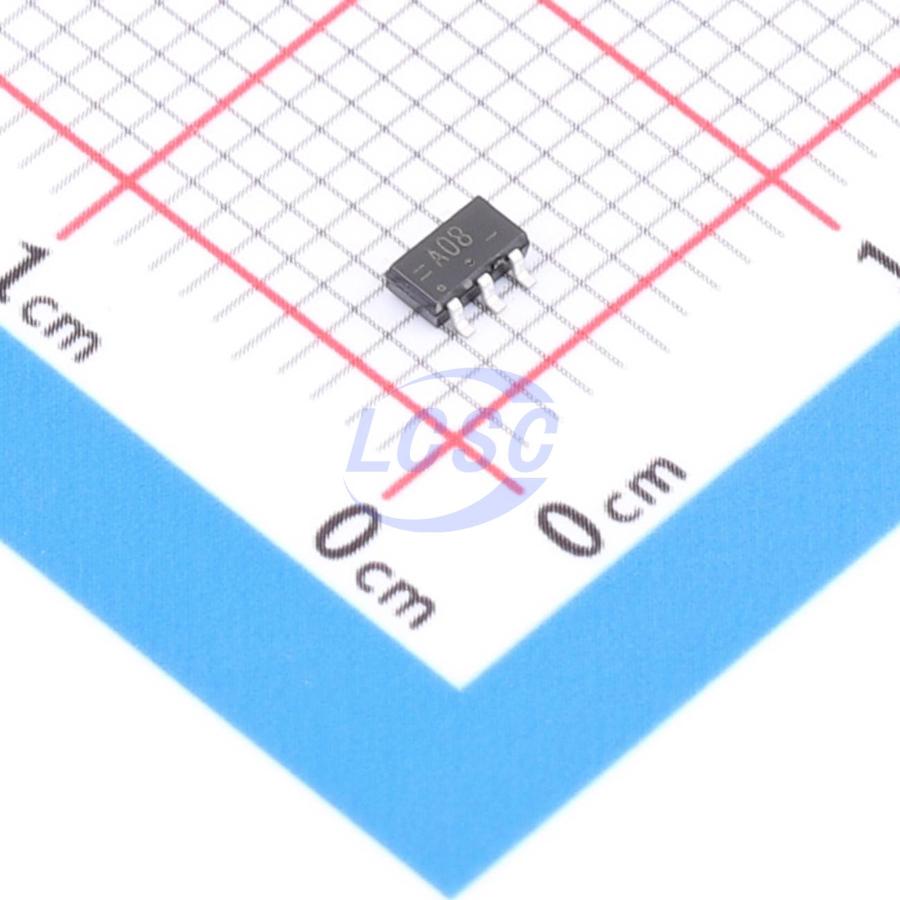

74AHC1G08GV-Q100,1
StandardCMOS 2V~5.5V 7.9ns@5V,50pF 1uA SOT-753 Gates and Inverters RoHS
SOT-753ROHS3 CompliantActive
2-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHC1G08GV-Q100,1
- Store part #
- C554279
- Package / case
- SOT-753
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,810 in stock
#C554279
Stock & price checked 27 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹25.84 | ₹129.20 |
| 50+ | ₹20.35 | ₹1,017.50 |
| 150+ | ₹17.99 | ₹2,698.50 |
| 500+ | ₹15.06 | ₹7,530.00 |
| 3,000+ | ₹13.75 | ₹41,250.00 |
| 6,000+ | ₹12.97 | ₹77,820.00 |
5 × ₹25.84
₹129.20
excl. GST
₹152.46 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G08GV-Q100,1
₹129.20 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;360mV~550mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.9V~3V;4.4V~4.5V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.073 g
Overview
The 74AHC1G08-Q100; 74AHCT1G08-Q100 is a single 2-input AND gate. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.
Key features
- Automotive product qualification in accordance with AEC-Q100 (Grade 1)
- Specified from -40°C to +85°C and from -40°C to +125°C
- Wide supply voltage range from 2.0 to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Symmetrical output impedance
- Balanced propagation delays
- Input levels: For 74AHC1G08-Q100: CMOS level For 74AHCT1G08-Q100: TTL level
- ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHC1G08DB(LX)#C22469963lingxingic · SOT-23-5 | lingxingic | SOT-23-5 | 2,370 | ₹6.91 · 2,370 in stock | View |
 | 74AHC1G08GV,125#C12487Nexperia · SC-74A | Nexperia | SC-74A | 1,380 | ₹30.71 · 1,380 in stock | View |
 | SN74AHC1G08QDBVRQ1#C133547TI · SOT-23-5 | TI | SOT-23-5 | 1,995 | ₹22.93 · 1,995 in stock | View |
 | 74AHC1G08W5-7#C460487DIODES · SOT-25 | DIODES | SOT-25 | 6,630 | ₹13.63 · 6,630 in stock | View |
 | MC74VHC1G08DTT1G#C457628onsemi · TSOP-5-1.5mm | onsemi | TSOP-5-1.5mm | 140 | ₹36.38 · 140 in stock | View |
