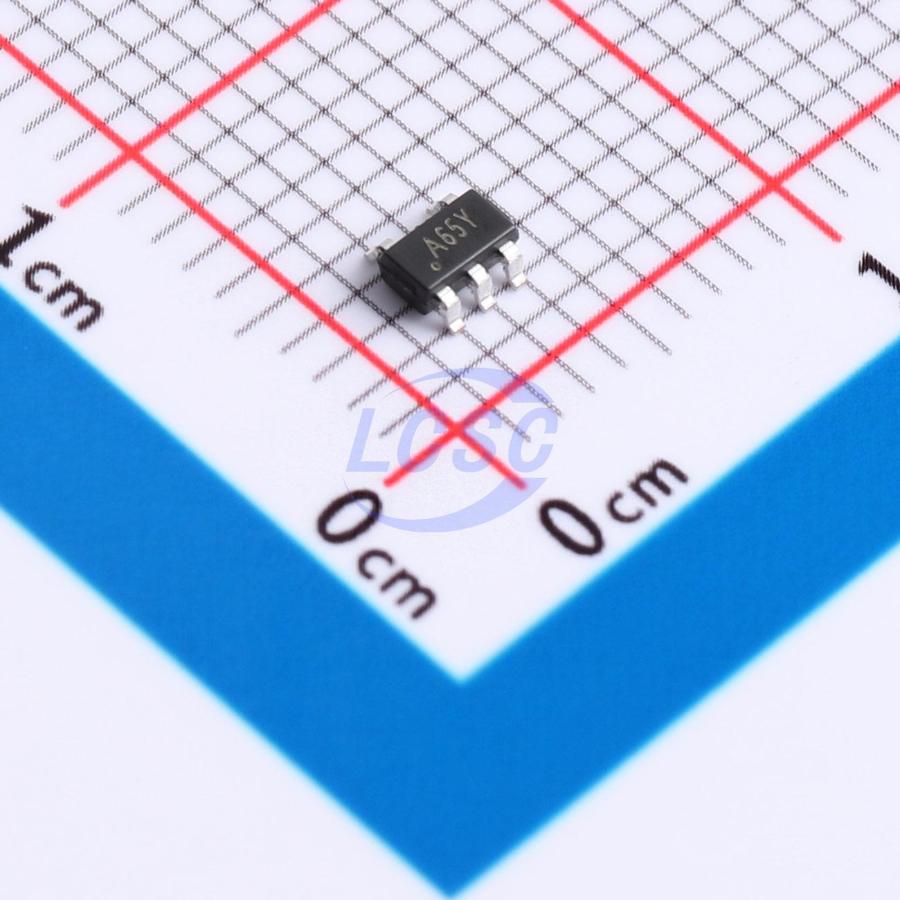

74AHC1G08GV
2V~5.5V 6.5ns@5.5V,15pF 10nA SOT-23-5L Gates and Inverters
SOT-23-5LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74AHC1G08GV
- Store part #
- C52953348
- Package / case
- SOT-23-5L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,860 in stock
#C52953348
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹9.50 | ₹95.00 |
| 100+ | ₹7.49 | ₹749.00 |
| 300+ | ₹6.48 | ₹1,944.00 |
| 3,000+ | ₹5.73 | ₹17,190.00 |
| 6,000+ | ₹5.12 | ₹30,720.00 |
| 9,000+ | ₹4.83 | ₹43,470.00 |
10 × ₹9.50
₹95.00
excl. GST
₹112.10 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G08GV
₹95.00 for 10 + GST
Specifications
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 6.5ns@5.5V,15pF
- Output Logic Level - Low
- 0V;50mV;70mV
- Input Logic Level - High
- 1.5V;2.1V;3.85V
- Input Logic Level - Low
- 500mV;900mV;1.65V
- Operating Temperature
- -40℃~+125℃
- Features
- Overvoltage-tolerant input
- Output Logic Level - High
- 2V;3V;4.5V;2.93V;4.39V
- Quiescent Current(Iq)
- 10nA
- Number of Channels
- 1;2
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.084 g
Overview
74AHC1G08 and 74AHCT1G08 are single 2-input AND gates. The inputs are overvoltage tolerant. This feature allows these devices to be used as level translators in mixed-voltage environments.
Key features
- Wide supply voltage range: 2.0V ~ 5.5V
- Input overvoltage tolerance up to 5.5V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 200mA
- Symmetrical output impedance
- Balanced propagation delay
- Input levels: CMOS for 74AHC1G08; TTL for 74AHCT1G08
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 7000V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G09GV#C52140421MDD(Microdiode Semiconductor) · SOT-23-5L | MDD(Microdiode Semiconductor) | SOT-23-5L | 2,956 | ₹14.46 · 2,956 in stock | View |
