MDD(Microdiode Semiconductor)Datasheet (PDF)

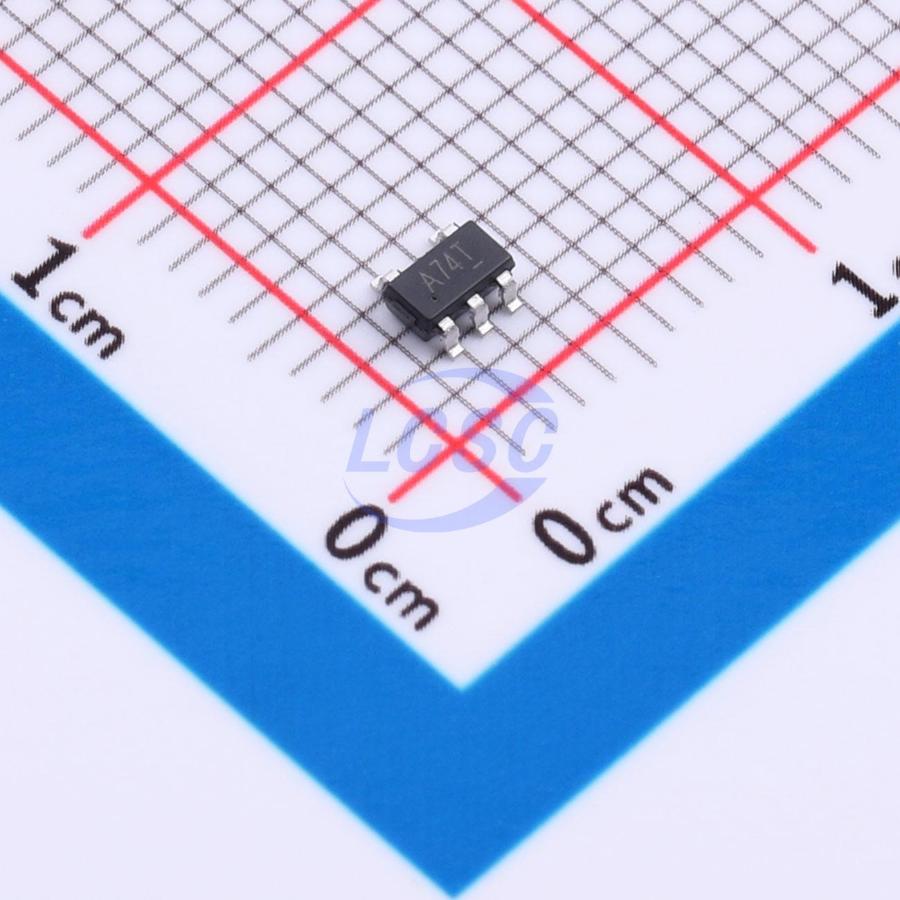

74AHC1G09GV
StandardCMOS 2V~5.5V 4.1ns@5V 10nA SOT-23-5L Gates and Inverters
SOT-23-5LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74AHC1G09GV
- Store part #
- C52140421
- Package / case
- SOT-23-5L
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,956 in stock
#C52140421
Stock & price checked 2 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹14.46 | ₹14.46 |
| 10+ | ₹11.40 | ₹114.00 |
| 30+ | ₹9.87 | ₹296.10 |
| 100+ | ₹8.72 | ₹872.00 |
| 500+ | ₹7.81 | ₹3,905.00 |
| 1,000+ | ₹7.34 | ₹7,340.00 |
1 × ₹14.46
₹14.46
excl. GST
₹17.06 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G09GV
₹14.46 for 1 + GST
Specifications
- Input Type
- StandardCMOS
- output type
- Open-drain
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Propagation Delay
- 4.1ns@5V
- Output Logic Level - Low
- 550mV;100mV
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Quiescent Current(Iq)
- 10nA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.082 g
Overview
74AHC1G09 and 74AHCT1G09 are single 2-input AND gates with open-drain outputs. The inputs are overvoltage tolerant, allowing these devices to be used as level translators in mixed-voltage environments.
Key features
- Wide supply voltage range: 2.0V ~ 5.5V
- Input overvoltage tolerance up to 5.5V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 200mA
- Input levels: CMOS for 74AHC1G09; TTL for 74AHCT1G09
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 3A exceeds 7000V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G08GV#C52953348MDD(Microdiode Semiconductor) · SOT-23-5L | MDD(Microdiode Semiconductor) | SOT-23-5L | 2,860 | ₹9.50 · 2,860 in stock | View |
