NexperiaDatasheet (PDF)
74AHC1G08GW,125
StandardCMOS 2V~5.5V 7.9ns@5V,50pF 1uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive

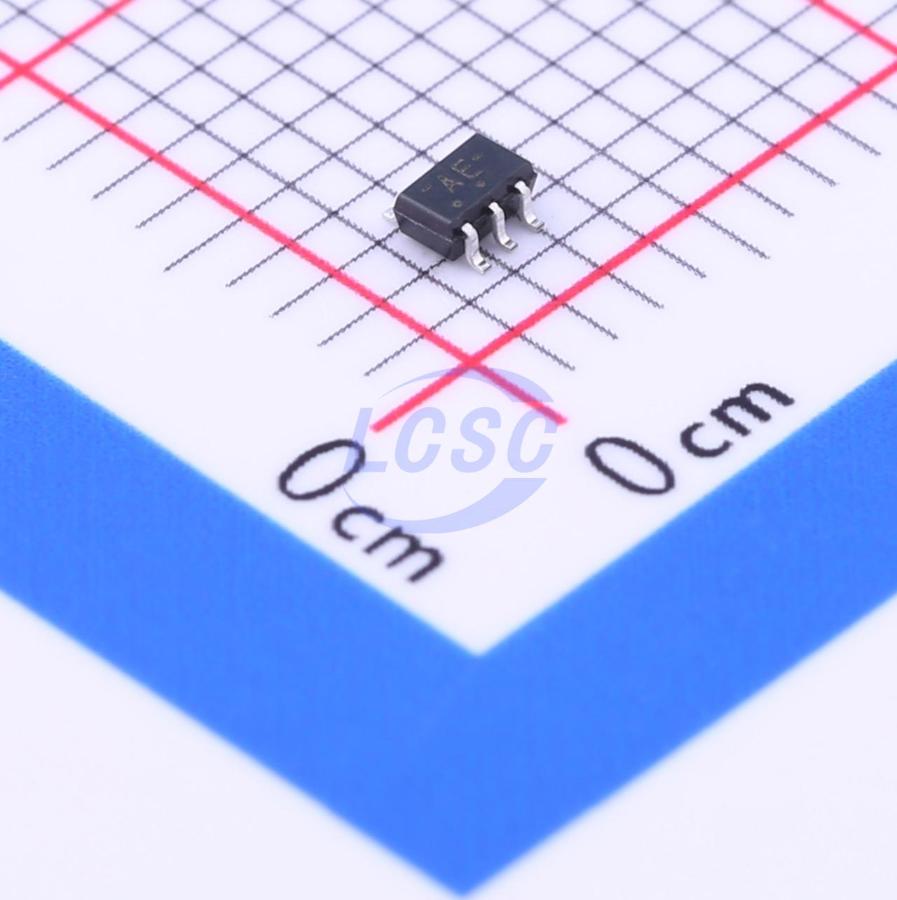

2-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHC1G08GW,125
- Store part #
- C12490
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46,590 in stock
#C12490
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.75 | ₹58.75 |
| 50+ | ₹9.25 | ₹462.50 |
| 150+ | ₹8.00 | ₹1,200.00 |
| 500+ | ₹7.06 | ₹3,530.00 |
| 3,000+ | ₹5.90 | ₹17,700.00 |
| 6,000+ | ₹5.53 | ₹33,180.00 |
5 × ₹11.75
₹58.75
excl. GST
₹69.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1G08GW,125
₹58.75 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74AHC Series
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 100mV;360mV~550mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 500mV~1.65V
- Input Logic Level - High
- 1.5V~3.85V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V~2V;2.9V~3V;4.4V~4.5V;3.7V~3.94V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The 74AHC1G08; 74AHCT1G08 is a single 2-input AND gate. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Key features
- Wide supply voltage range from 2.0 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Symmetrical output impedance
- Balanced propagation delays
- Input levels:
- For 74AHC1G08: CMOS level
- For 74AHCT1G08: TTL level
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHC1G08GW-Q100,1#C426693Nexperia · TSSOP-5-1.3mm | Nexperia | TSSOP-5-1.3mm | 5 | ₹18.83 · 5 in stock | View |
 | MC74VHC1G08DFT1G#C233638onsemi · SC-70-5 | onsemi | SC-70-5 | 2,440 | ₹13.15 · 2,440 in stock | View |
 | SN74AHC1G08DC(LX)#C22469964lingxingic · SOT-353 | lingxingic | SOT-353 | 740 | ₹5.97 · 740 in stock | View |
 | 74AHC1G08SE-7#C459531DIODES · SOT-353 | DIODES | SOT-353 | 6,810 | ₹9.99 · 6,810 in stock | View |
 | 74AHC1G09QSE-7#C4472512DIODES · SOT-353 | DIODES | SOT-353 | 2,820 | ₹16.43 · 2,820 in stock | View |
