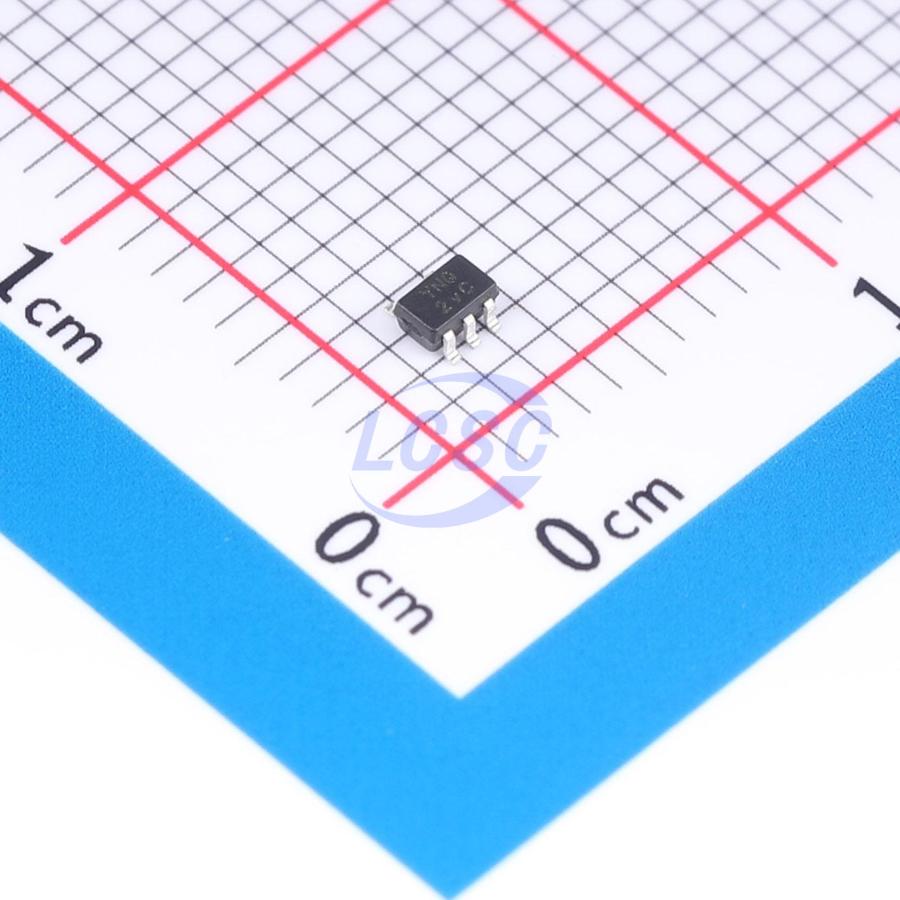

DIODES

74AHC1G09QSE-7

Schmitt trigger 2V~5.5V 7.5ns@5V,50pF 1uA SOT-353 Gates and Inverters RoHS

SOT-353ROHS3 CompliantSold out at source

SINGLE 2-INPUT POSITIVE AND GATE WITH OPEN DRAIN OUTPUT

Manufacturer: DIODES
Manufacturer part #: 74AHC1G09QSE-7
Store part #: C4472512
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,820 in stock

#C4472512

Stock & price checked 5 days ago

Quantity	Unit price	Pack price
5+	₹16.43	₹82.15
50+	₹13.14	₹657.00
150+	₹11.48	₹1,722.00
500+	₹10.25	₹5,125.00
3,000+	₹9.26	₹27,780.00
6,000+	₹8.76	₹52,560.00

Quantity (min 5, multiples of 5)

5 × ₹16.43

₹82.15

excl. GST

₹96.94 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHC1G09QSE-7

₹82.15 for 5 + GST

Specifications

Input Type: Schmitt trigger
output type: Open-drain
Logic Family: 74AHC Series
Voltage - Supply: 2V~5.5V
Output Logic Level - Low: 100mV;360mV
Propagation Delay: 7.5ns@5V,50pF
Features: Overvoltage-tolerant input
Input Logic Level - Low: 500mV~1.65V
Input Logic Level - High: 1.5V~3.85V
Operating Temperature: -40℃~+125℃
Quiescent Current(Iq): 1uA
Current - Output High(IOH): 8mA
Number of Channels: 1;2
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Sold out at source
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.032 g

Overview

The 74AHC1G09Q is an automotive- compliant, single, two- input positive AND gate with an open drain output. The device is designed for operation with a power supply range of 2.0V to 5.5V. The gate performs the positive Boolean function: Y = A • B or Y = (A(overline) + B(overline))(overline) A pull- up resistor is required to achieve a high- output state.

Applications

General- purpose logic
Automotive applications within Grade 1 temperature range
Industrial computing/controls/automation
High- reliability networking/communications
Industrial/agricultural equipment

Key features

Grade 1 Ambient Temperature Operation: -40°C to +125°C
Supply Voltage Range from 2.0V to 5.5V
8mA Output Sink at VCC = 4.5V
CMOS Low-Power Consumption
Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for Slower Input Rise and Fall Time
Inputs Not Limited by VCC
Balanced Propagation Delays
Balanced Drive Capability
ESD Protection Tested per AEC-Q100
Exceeds 2000-V Human Body Model (AEC-Q100-002)
Exceeds 1000-V Charged Device Model (AEC-Q100-011)
Latch-Up Exceeds 100mA (AEC-Q100-004)
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. "Green" Device
