JSMSEMI

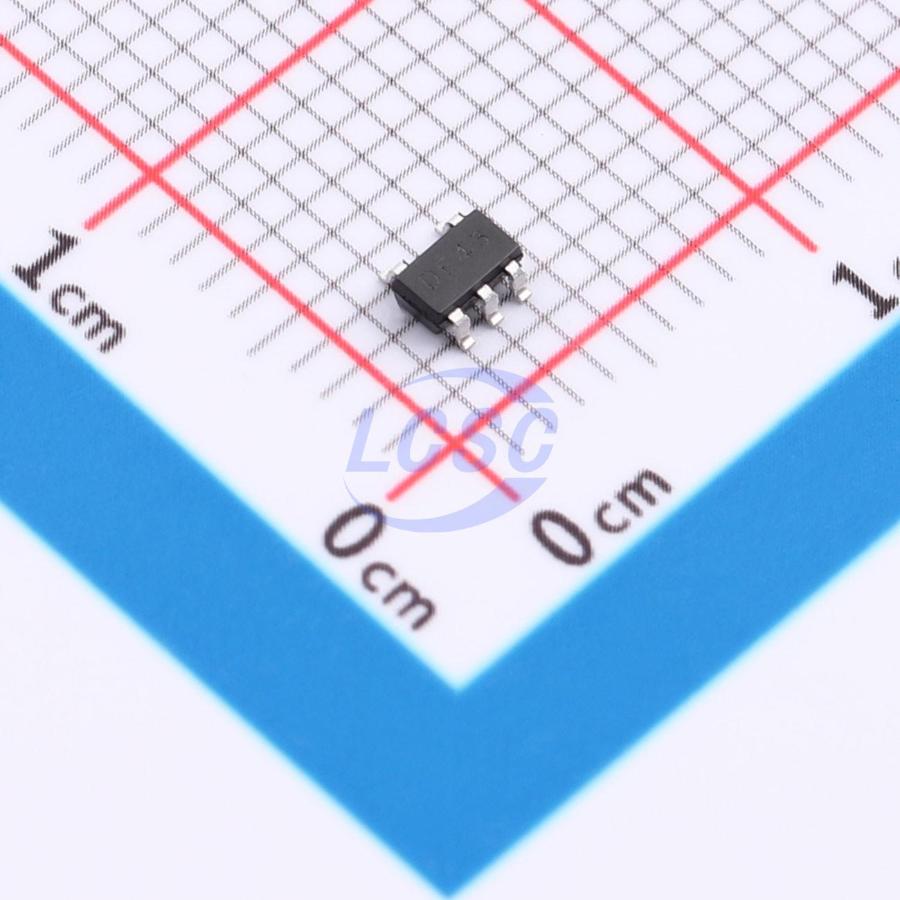

74AHC1G125GV-JSM

StandardCMOS 2V~5.5V 1 1 4.8ns@5V,50pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS

SOT-23-5ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74AHC1G125GV-JSM
Store part #: C53114313
Package / case: SOT-23-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,950 in stock

#C53114313

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
10+	₹7.33	₹73.30
100+	₹5.83	₹583.00
300+	₹5.08	₹1,524.00
3,000+	₹4.52	₹13,560.00
6,000+	₹4.07	₹24,420.00
9,000+	₹3.85	₹34,650.00

Quantity (min 10, multiples of 10)

10 × ₹7.33

₹73.30

excl. GST

₹86.49 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHC1G125GV-JSM

₹73.30 for 10 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Output enable
Input type: StandardCMOS
Current - Output High(IOH): 25mA
Series: 74AHC
Voltage - Supply: 2V~5.5V
Output Type: Tri-State
Current - Output Low(IOL): 25mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 40uA
Propagation Delay: 4.8ns@5V,50pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.043 g

Overview

The 74AHC1G125 and 74AHCT1G125 are non-inverting buffers/line drivers with 3-state outputs. The output enable input controls the 3-state output. A HIGH on the output enable input forces the output into a high-impedance state. The 74AHC1G125 is compatible with CMOS input switching levels, with a supply voltage range of 2V to 5.5V. The 74AHCT1G125 is compatible with TTL input switching levels, with a supply voltage range of 4.5V to 5.5V.
