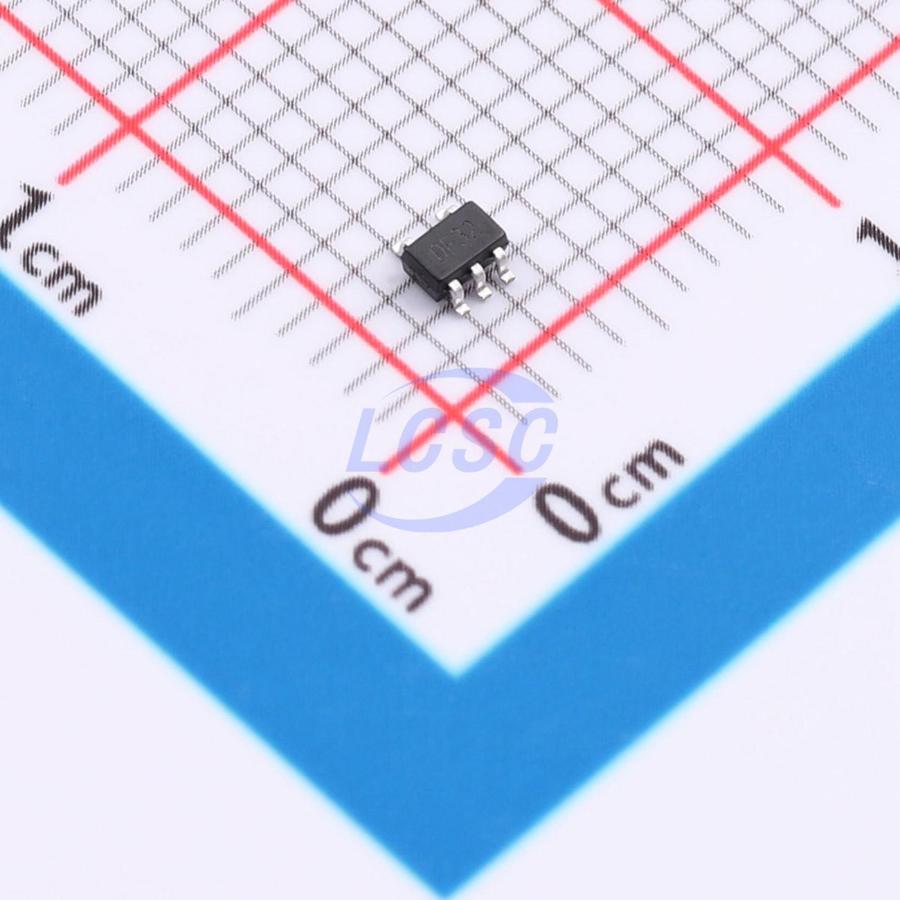

JSMSEMI

74AHC1G125GW,125-JSM

StandardCMOS 2V~5.5V 1 1 9.5ns@5.5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS

SOT-353ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74AHC1G125GW,125-JSM
Store part #: C53114370
Package / case: SOT-353
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

8,520 in stock

#C53114370

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
5+	₹12.70	₹63.50
50+	₹10.11	₹505.50
150+	₹8.80	₹1,320.00
500+	₹7.83	₹3,915.00
3,000+	₹7.05	₹21,150.00
6,000+	₹6.65	₹39,900.00

Quantity (min 5, multiples of 5)

5 × ₹12.70

₹63.50

excl. GST

₹74.93 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHC1G125GW,125-JSM

₹63.50 for 5 + GST

Specifications

Function: Output enable
Input type: StandardCMOS
Current - Output High(IOH): 25mA
Series: 74AHC
Voltage - Supply: 2V~5.5V
Output Type: Tri-State
Current - Output Low(IOL): 25mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 40uA
Propagation Delay: 9.5ns@5.5V,50pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.034 g

Overview

74AHC1G125 and 74AHCT1G125 are non-inverting buffer/line drivers with 3-state outputs. The output enable input (OE) controls the 3-state output; when the OE input is HIGH, the output is in a high-impedance state. The 74AHC1G125 is compatible with CMOS input levels, with a supply voltage range of 2V to 5.5V. The 74AHCT1G125 is compatible with TTL input levels, with a supply voltage range of 4.5V to 5.5V.
