DIODESDatasheet (PDF)
74AHC1GU04SE-7
StandardCMOS 2V~5.5V 7ns@5V,50pF 1uA 1 SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive

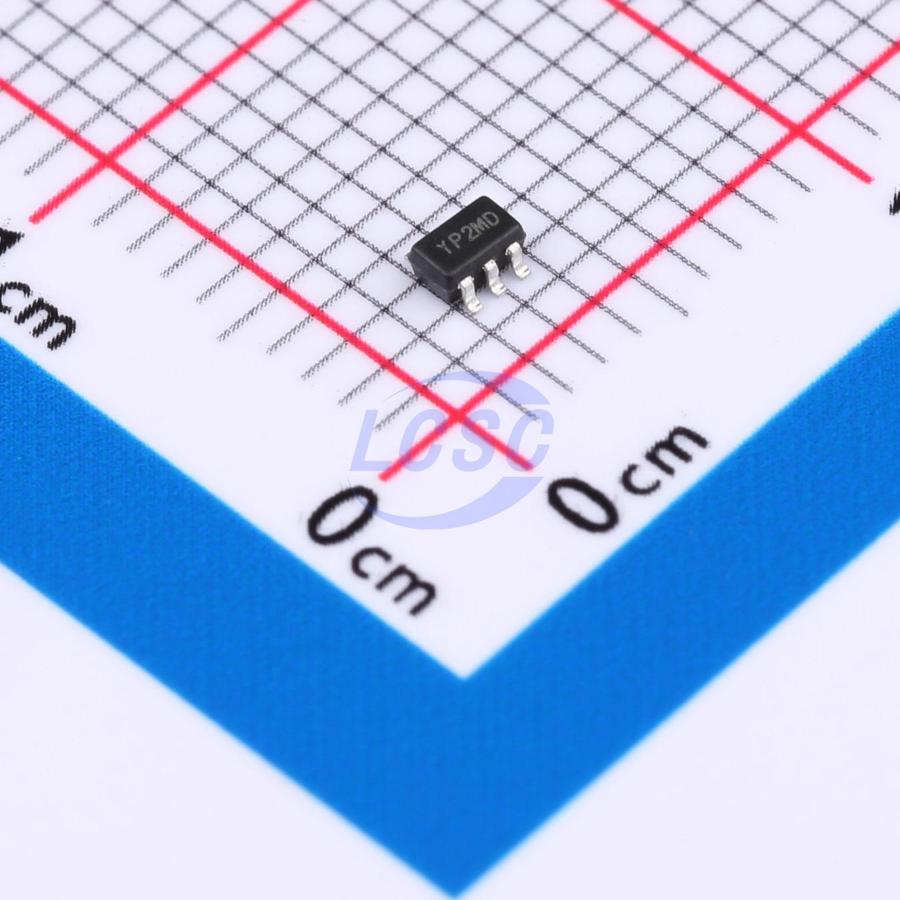

Unbuffered Single Inverter Gate
- Manufacturer
- DIODES
- Manufacturer part #
- 74AHC1GU04SE-7
- Store part #
- C460495
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,535 in stock
#C460495
Stock & price checked 32 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.19 | ₹55.95 |
| 50+ | ₹9.10 | ₹455.00 |
| 150+ | ₹8.06 | ₹1,209.00 |
| 500+ | ₹7.28 | ₹3,640.00 |
| 3,000+ | ₹6.65 | ₹19,950.00 |
| 6,000+ | ₹6.34 | ₹38,040.00 |
5 × ₹11.19
₹55.95
excl. GST
₹66.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHC1GU04SE-7
₹55.95 for 5 + GST
Specifications
- output type
- Push-pull
- Input Type
- StandardCMOS
- Logic Family
- 74AHC
- Voltage - Supply
- 2V~5.5V
- Output Logic Level - Low
- 200mV;300mV;500mV
- Propagation Delay
- 7ns@5V,50pF
- Input Logic Level - Low
- 300mV~1.1V
- Input Logic Level - High
- 1.7V~4.4V
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.8V;2.7V;4V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 6mA
- Current - Output Low(IOL)
- 6mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.036 g
Overview
The 74AHC1GU04 is a single inverter gate with a standard totem pole output. The device is designed for operation with a power supply range of 2.0 V to 5.5 V. The inverter can be used in analog circuits such as crystal oscillators.
Applications
- Crystal Oscillators, Analog Inverters
- PCs, networking, notebooks, netbooks, PDAs
- Computer peripherals, hard drives, CD/DVD ROM
- TV, DVD, DVR, set top box
- Personal Navigation / GPS
- MP3 players, Cameras, Video Recorders
Key features
- Supply Voltage Range from 2.0V to 5.5V
- ± 6 mA Output Drive at 5.0V
- CMOS low power consumption
- Unbuffered Output
- ESD Protection Exceeds JESD 22
- 200-V Machine Model (A115-A)
- 2000-V Human Body Model (A114-A)
- Latch-Up Exceeds 100mA per JESD 78, Class II
- SOT25 and SOT353: Assembled with “Green” Molding Compound (no Br, Sb) Lead Free Finish / RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | XC7SHU04GW,125#C461158Nexperia · TSSOP-5 | Nexperia | TSSOP-5 | 50 | ₹65.82 · 50 in stock | View |
 | 74AHC1G04GW,125#C148197Nexperia · SOT-353 | Nexperia | SOT-353 | 1,320 | ₹9.82 · 1,320 in stock | View |
 | EM74AHC1G04GW#C49188282EnergyMath · SOT-353 | EnergyMath | SOT-353 | 60 | ₹8.88 · 60 in stock | View |
 | 74HC1G04GW,125#C10234Nexperia · SOT-353 | Nexperia | SOT-353 | 17,490 | ₹16.21 · 17,490 in stock | View |
 | 74HC1GU04GW,125#C546712Nexperia · TSSOP-5-1.3mm | Nexperia | TSSOP-5-1.3mm | 1,015 | ₹21.06 · 1,015 in stock | View |
