DIODESDatasheet (PDF)

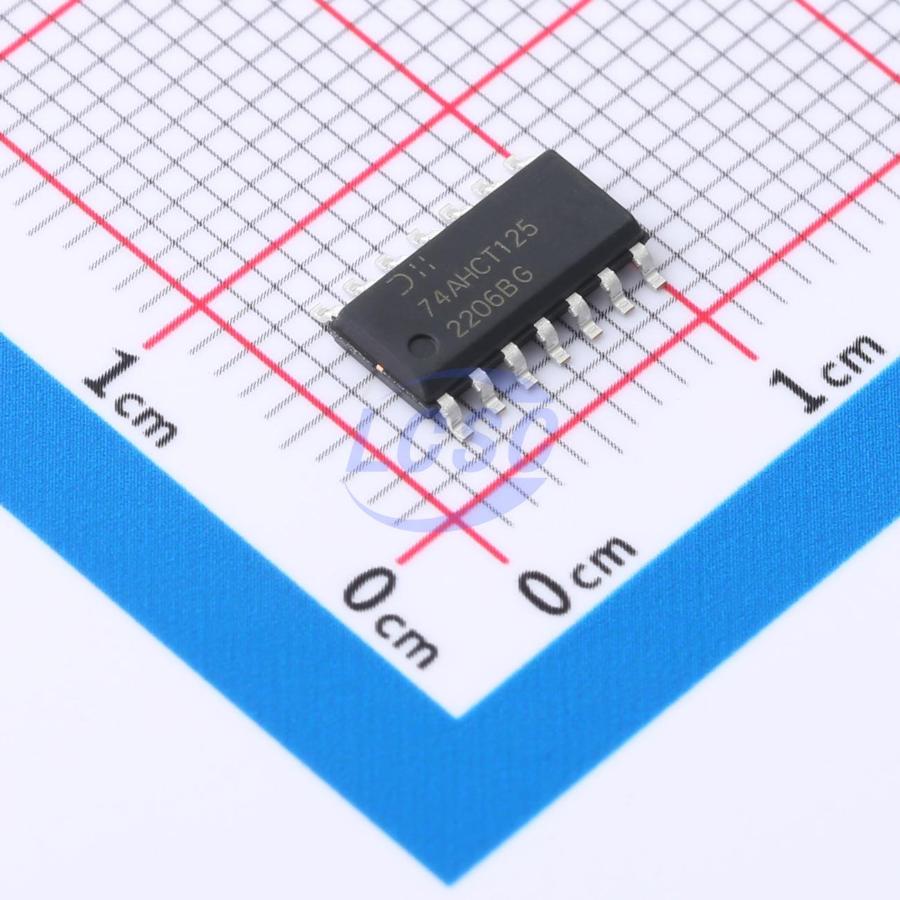

74AHCT125S14-13
Schmitt trigger 4.5V~5.5V 1 4 4.3ns@5.5V,50pF SO-14 Buffers, Drivers, Receivers, Transceivers RoHS
SO-14ROHS3 CompliantActive
QUADRUPLE 3-STATE BUFFERS OE LOW
- Manufacturer
- DIODES
- Manufacturer part #
- 74AHCT125S14-13
- Store part #
- C842299
- Package / case
- SO-14
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,450 in stock
#C842299
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹27.03 | ₹135.15 |
| 50+ | ₹21.18 | ₹1,059.00 |
| 150+ | ₹18.67 | ₹2,800.50 |
| 500+ | ₹15.55 | ₹7,775.00 |
| 2,500+ | ₹14.16 | ₹35,400.00 |
| 5,000+ | ₹13.32 | ₹66,600.00 |
5 × ₹27.03
₹135.15
excl. GST
₹159.48 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74AHCT125S14-13
₹135.15 for 5 + GST
Specifications
- Function
- Output enable
- Input type
- Schmitt trigger
- Current - Output High(IOH)
- 8mA
- Voltage - Supply
- 4.5V~5.5V
- Series
- 74AHCT
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 4
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 4.3ns@5.5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.222 g
Overview
The 74AHCT125 provides provides four independent buffer gates with 3-state outputs. Each buffer has a separate enable pin that if driven with a high logic level places the corresponding output in the high impedance state. The device is designed for operation with a power supply range of 4.5V to 5.5V.
Applications
- General Purpose Logic
- Wide array of products such as:
- PCs, Networking, Notebooks, Netbooks
- Computer Peripherals, Hard Drives, CD/DVD ROM
- TV, DVD, DVR, Set Top Box
Key features
- Wide Supply Voltage Range from 4.5V to 5.5V
- Inputs Are TTL Voltage Level Compatible
- Outputs Sink or Source 8mA at VCC = 4.5V
- CMOS Low Power Consumption
- Schmitt Trigger Action at All Inputs ESD Protection Exceeds JESD 22 200-V Machine Model (A115-A) 2000-V Human Body Model (A114-A) Exceeds 1000-V Charged Device Model (C101C)
- Latch-Up Exceeds 250mA per JESD 78, Class II
- Range of Package Options SO-14 and TSSOP-14
- Totally Lead-Free & Fully RoHS Compliant
- Halogen and Antimony Free. “Green” Device
