NexperiaDatasheet (PDF)

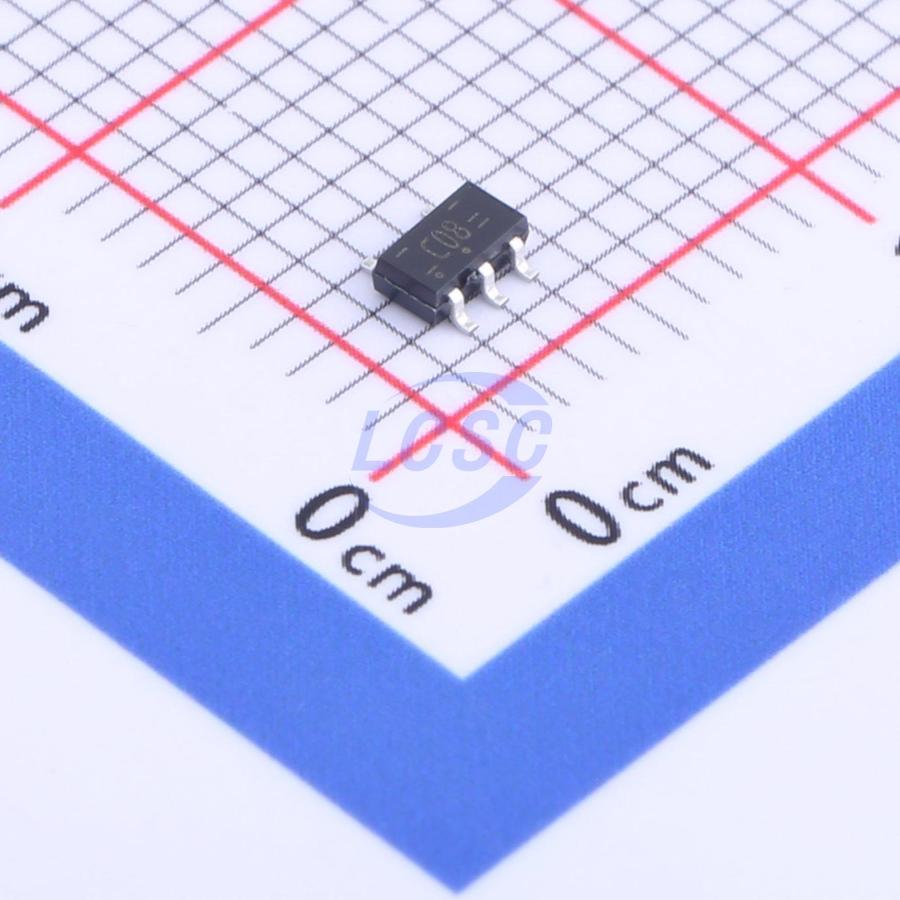

74AHCT1G08GV,125
TTL-compatible CMOS 4.5V~5.5V 7.9ns@5V,50pF 1uA SC-74A Gates and Inverters RoHS
SC-74AROHS3 CompliantActive
2-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHCT1G08GV,125
- Store part #
- C554562
- Package / case
- SC-74A
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,825 in stock
#C554562
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.10 | ₹65.50 |
| 50+ | ₹10.29 | ₹514.50 |
| 150+ | ₹8.89 | ₹1,333.50 |
| 500+ | ₹7.83 | ₹3,915.00 |
| 3,000+ | ₹6.99 | ₹20,970.00 |
| 6,000+ | ₹6.56 | ₹39,360.00 |
5 × ₹13.10
₹65.50
excl. GST
₹77.29 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHCT1G08GV,125
₹65.50 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 100mV;550mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Output Logic Level - High
- 4.4V;3.7V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.046 g
Overview
The 74AHC1G08; 74AHCT1G08 is a single 2-input AND gate. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Key features
- Wide supply voltage range from 2.0 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Symmetrical output impedance
- Balanced propagation delays
- Input levels:
- For 74AHC1G08: CMOS level
- For 74AHCT1G08: TTL level
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHCT1G08DBVR#C113521TI · SOT-23-5 | TI | SOT-23-5 | 18,755 | ₹11.92 · 18,755 in stock | View |
 | 74AHCT1G08GV-Q100,#C554563Nexperia · SC-74A | Nexperia | SC-74A | 200 | ₹16.76 · 200 in stock | View |
 | SN74AHCT1G08DBV3#C2866340TI · SOT-23-5 | TI | SOT-23-5 | 115 | ₹46.78 · 115 in stock | View |
 | 74AHCT1G08W5-TP#C54780775TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,960 | ₹5.85 · 2,960 in stock | View |
 | 74AHCT1G08W5-7#C460500DIODES · SOT-25-5 | DIODES | SOT-25-5 | 270 | ₹13.55 · 270 in stock | View |
