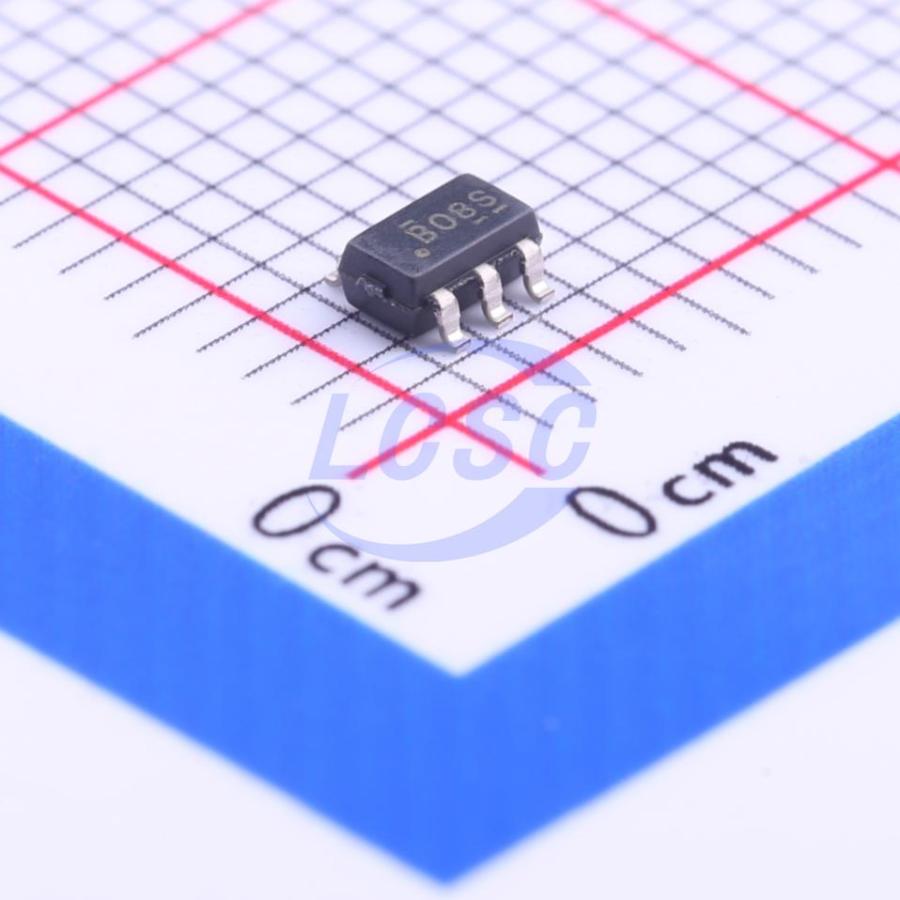

SN74AHCT1G08DBVR
TTL-compatible CMOS 4.5V~5.5V 7.9ns@5V,50pF 1uA SOT-23-5 Gates and Inverters RoHS
SOT-23-5ROHS CompliantActive
Single 2-Input Positive-AND Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT1G08DBVR
- Store part #
- C113521
- Package / case
- SOT-23-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
18,755 in stock
#C113521
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹11.92 | ₹59.60 |
| 50+ | ₹9.64 | ₹482.00 |
| 150+ | ₹8.47 | ₹1,270.50 |
| 500+ | ₹7.50 | ₹3,750.00 |
| 3,000+ | ₹7.16 | ₹21,480.00 |
| 6,000+ | ₹6.93 | ₹41,580.00 |
5 × ₹11.92
₹59.60
excl. GST
₹70.33 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G08DBVR
₹59.60 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V;3.94V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The SN74AHCT1G08 device is a single 2-input positive-AND gate. The device performs the Boolean function Y = A · B or Y = (A + B) (overline) in positive logic. Low I_CC current allows this device to be used in powersensitive or battery-powered applications.
Applications
- TV, Set-Top Box, and Audio
- Wireless Infrastructure
- Factory Automation and Control
- PC and Notebooks
- Building Automation
- Grid Infrastructure
- Medical, Healthcare, and Fitness
- Printers
- Test and Measurement
- EPOS (Electronic Point of Sale)
- Telecom Infrastructure Projectors
Key features
- Operating Range: 4.5 V to 5.5 V
- Maximum propagation delay (tpd) of 7.1 ns at 5 V
- Low Power Consumption: Maximum ICC of 10 μA
- ±8-mA Output Drive at 5 V
- Inputs Are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA
- Per JESD 17
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT1G08GV-Q100,#C554563Nexperia · SC-74A | Nexperia | SC-74A | 200 | ₹16.76 · 200 in stock | View |
 | 74AHCT1G08GV,125#C554562Nexperia · SC-74A | Nexperia | SC-74A | 2,825 | ₹13.10 · 2,825 in stock | View |
 | 74AHCT1G08W5-TP#C54780775TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,960 | ₹5.85 · 2,960 in stock | View |
 | SN74AHCT1G08DBV3#C2866340TI · SOT-23-5 | TI | SOT-23-5 | 115 | ₹46.78 · 115 in stock | View |
 | 74AHCT1G08W5-7#C460500DIODES · SOT-25-5 | DIODES | SOT-25-5 | 270 | ₹13.55 · 270 in stock | View |
