NexperiaDatasheet (PDF)

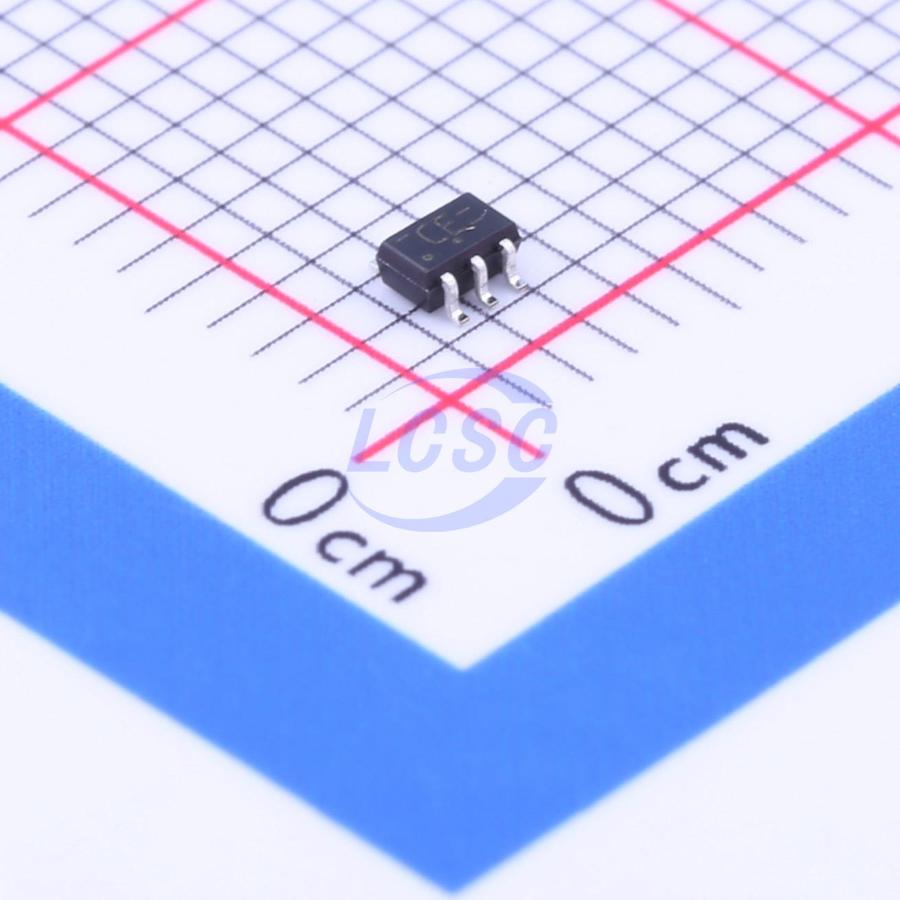

74AHCT1G08GW,125
TTL-compatible CMOS 4.5V~5.5V 7.9ns@5V,50pF 1uA SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive
2-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74AHCT1G08GW,125
- Store part #
- C12493
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,760 in stock
#C12493
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹30.11 | ₹150.55 |
| 50+ | ₹23.93 | ₹1,196.50 |
| 150+ | ₹21.29 | ₹3,193.50 |
| 500+ | ₹17.98 | ₹8,990.00 |
| 3,000+ | ₹16.51 | ₹49,530.00 |
| 6,000+ | ₹15.62 | ₹93,720.00 |
5 × ₹30.11
₹150.55
excl. GST
₹177.65 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHCT1G08GW,125
₹150.55 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 100mV;550mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V;3.7V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.04 g
Overview
The 74AHC1G08; 74AHCT1G08 is a single 2-input AND gate. Inputs are overvoltage tolerant. This feature allows the use of these devices as translators in mixed voltage environments.
Key features
- Wide supply voltage range from 2.0 V to 5.5 V
- Overvoltage tolerant inputs to 5.5 V
- High noise immunity
- CMOS low power dissipation
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level A
- Symmetrical output impedance
- Balanced propagation delays
- Input levels:
- For 74AHC1G08: CMOS level
- For 74AHCT1G08: TTL level
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Specified from -40 °C to +125 °C
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHCT1G08DCKR#C113517TI · SC-70-5 | TI | SC-70-5 | 12,310 | ₹15.96 · 12,310 in stock | View |
 | SN74AHCT1G08DCKT#C2864983TI · SC-70-5 | TI | SC-70-5 | 38 | ₹111.24 · 38 in stock | View |
 | XC7SET08GW,125#C394296Nexperia · TSSOP-5 | Nexperia | TSSOP-5 | 30 | ₹71.65 · 30 in stock | View |
 | 74AHCT1G08GW-TP#C54780773TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹5.89 · 3,000 in stock | View |
 | SN74AHCT1G08DCKR-TP#C42460243TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,180 | ₹3.24 · 2,180 in stock | View |
