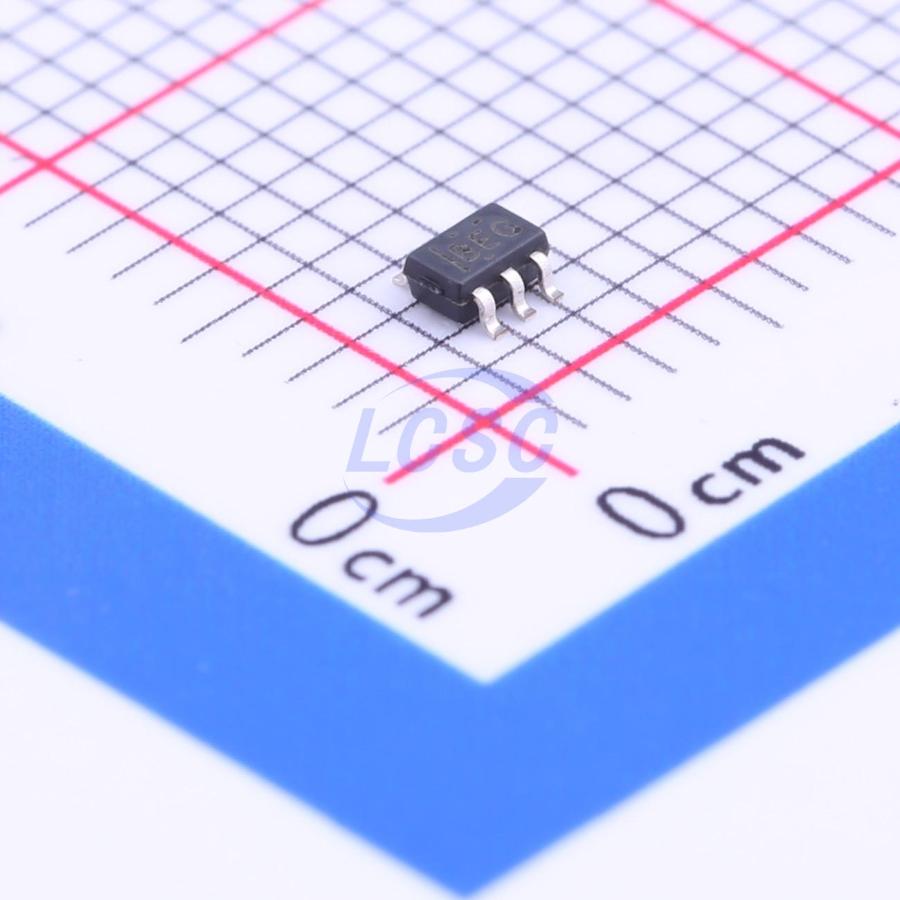

SN74AHCT1G08DCKR
TTL-compatible CMOS 4.5V~5.5V 7.9ns@5V,50pF 1uA SC-70-5 Gates and Inverters RoHS
SC-70-5ROHS3 CompliantActive
Single 2-Input Positive-AND Gate
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT1G08DCKR
- Store part #
- C113517
- Package / case
- SC-70-5
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
12,310 in stock
#C113517
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹15.96 | ₹79.80 |
| 50+ | ₹12.74 | ₹637.00 |
| 150+ | ₹11.14 | ₹1,671.00 |
| 500+ | ₹9.92 | ₹4,960.00 |
| 3,000+ | ₹7.59 | ₹22,770.00 |
| 6,000+ | ₹7.12 | ₹42,720.00 |
5 × ₹15.96
₹79.80
excl. GST
₹94.16 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G08DCKR
₹79.80 for 5 + GST
Specifications
- Input Type
- TTL-compatible CMOS
- Logic Family
- 74AHCT Series
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 100mV;360mV
- Propagation Delay
- 7.9ns@5V,50pF
- Features
- Overvoltage-tolerant input
- Input Logic Level - Low
- 800mV
- Input Logic Level - High
- 2V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 4.4V;3.94V
- Quiescent Current(Iq)
- 1uA
- Current - Output High(IOH)
- 8mA
- Number of Channels
- 1;2
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The SN74AHCT1G08 device is a single 2-input positive-AND gate. The device performs the Boolean function Y = A · B or Y = (A + B) (overline) in positive logic. Low I_CC current allows this device to be used in powersensitive or battery-powered applications.
Applications
- TV, Set-Top Box, and Audio
- Wireless Infrastructure
- Factory Automation and Control
- PC and Notebooks
- Building Automation
- Grid Infrastructure
- Medical, Healthcare, and Fitness
- Printers
- Test and Measurement
- EPOS (Electronic Point of Sale)
- Telecom Infrastructure Projectors
Key features
- Operating Range: 4.5 V to 5.5 V
- Maximum propagation delay (tpd) of 7.1 ns at 5 V
- Low Power Consumption: Maximum ICC of 10 μA
- ±8-mA Output Drive at 5 V
- Inputs Are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA
- Per JESD 17
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74AHCT1G08DCKT#C2864983TI · SC-70-5 | TI | SC-70-5 | 38 | ₹111.24 · 38 in stock | View |
 | 74AHCT1G08GW,125#C12493Nexperia · SOT-353 | Nexperia | SOT-353 | 2,760 | ₹30.11 · 2,760 in stock | View |
 | XC7SET08GW,125#C394296Nexperia · TSSOP-5 | Nexperia | TSSOP-5 | 30 | ₹71.65 · 30 in stock | View |
 | 74AHCT1G08GW-TP#C54780773TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 3,000 | ₹5.89 · 3,000 in stock | View |
 | SN74AHCT1G08DCKR-TP#C42460243TECH PUBLIC · SOT-353 | TECH PUBLIC | SOT-353 | 2,180 | ₹3.24 · 2,180 in stock | View |
