JSMSEMI

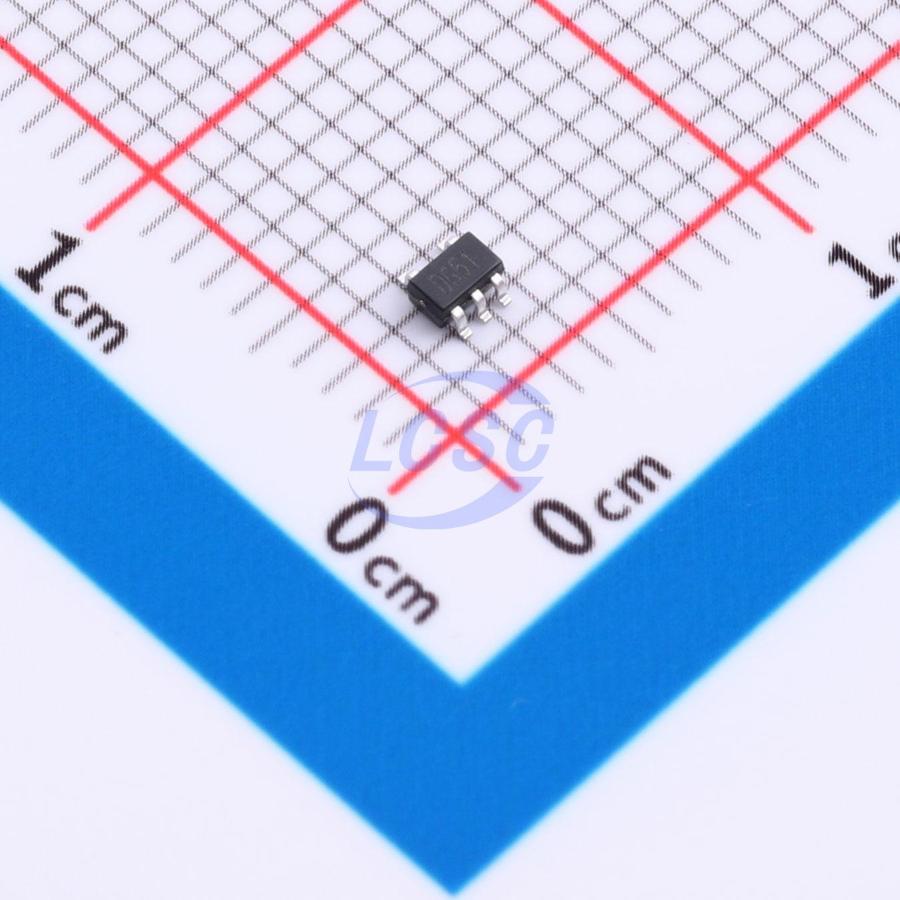

74AHCT1G125GW,125-JSM

TTL-compatible CMOS 4.5V~5.5V 1 1 4.8ns@5V,50pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS

SOT-353ROHS CompliantActive

Manufacturer: JSMSEMI
Manufacturer part #: 74AHCT1G125GW,125-JSM
Store part #: C53114384
Package / case: SOT-353
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

1,380 in stock

#C53114384

Stock & price checked 33 h ago

Quantity	Unit price	Pack price
5+	₹10.76	₹53.80
50+	₹8.56	₹428.00
150+	₹7.47	₹1,120.50
500+	₹6.65	₹3,325.00
3,000+	₹5.99	₹17,970.00
6,000+	₹5.68	₹34,080.00

Quantity (min 5, multiples of 5)

5 × ₹10.76

₹53.80

excl. GST

₹63.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHCT1G125GW,125-JSM

₹53.80 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Function: Output enable
Input type: TTL-compatible CMOS
Current - Output High(IOH): 25mA
Voltage - Supply: 4.5V~5.5V
Series: 74AHCT
Output Type: Tri-State
Current - Output Low(IOL): 25mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 40uA
Propagation Delay: 4.8ns@5V,50pF

Packaging & compliance

RoHS: ROHS Compliant
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.035 g

Overview

The 74AHC1G125 and 74AHCT1G125 are non-inverting buffers/line drivers with 3-state outputs. The output enable input (OE) controls the 3-state output. A HIGH on OE forces the output into a high-impedance state. The 74AHC1G125 is compatible with CMOS input switching levels, with a supply voltage range of 2V to 5.5V. The 74AHCT1G125 is compatible with TTL input switching levels, with a supply voltage range of 4.5V to 5.5V.
