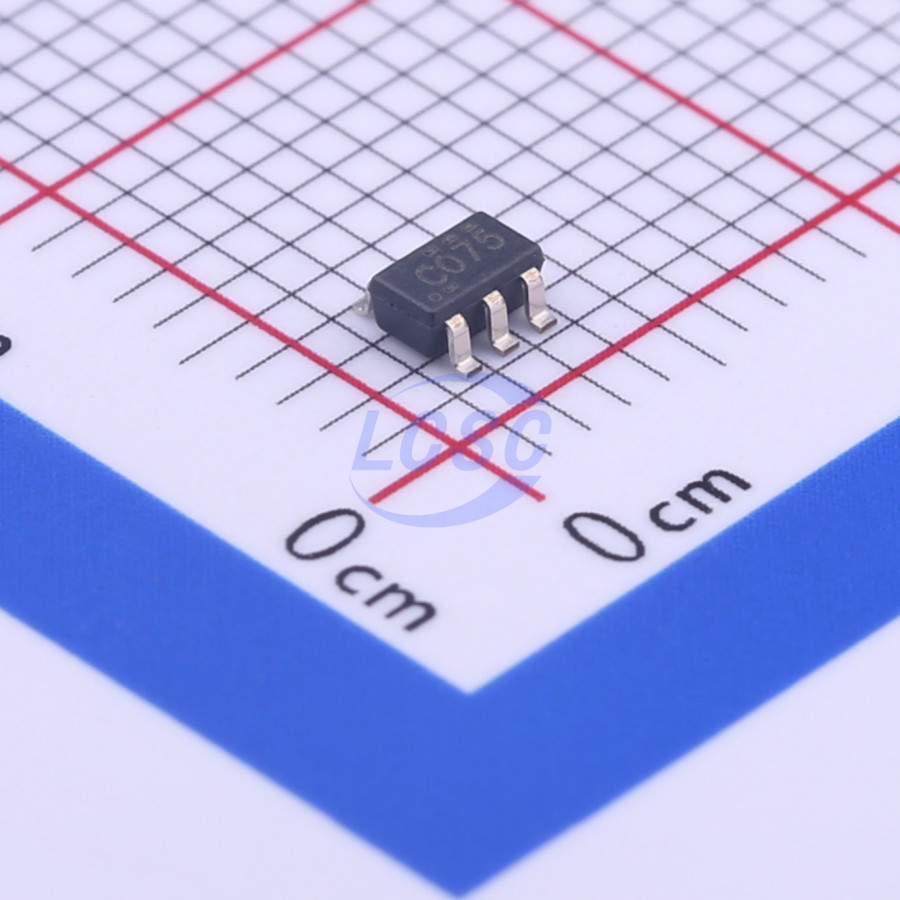

SN74LVC2G07DBVR

This dual buffer/driver is designed for 1.65- V to 5.5- V VCC operation. The output of the SN74LVC2G07 is open drain and can be connected to other open- drain outputs to implement active- low wired- OR or active- high wired- AND functions. The maximum sink current is 32mA. NanoFree package technology is a major breakthrough in IC packaging concepts, using the die as the package. This device is fully specified for partial- power- down applications using Ioff. The Ioff circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down.

Key features

• Available in the NanoFree Package
• Supports 5- V Vcc Operation
• Inputs and Open- Drain Outputs Accept Voltages up to 5.5V Max
• Max tpd of 3.7 ns at 3.3V
• Low Power Consumption, 10- μA Max Icc
• ±24 - mA Output Drive at 3.3V
• Typical VOLP (Output Ground Bounce) < 0.8V at VCC = 3.3V, TA = 25℃
• Typical VOHV (Output VOH Undershoot) >2V at VCC = 3.3V, TA = 25℃
• Ioff Supports Live Insertion, Partial Power Down Mode, and Back Drive Protection
• Support Translation- Up/Down
• Latch- Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22:
• 2000- V Human- Body Model (A114- A)
• 200- V Machine Model (A115- A)
• 1000- V Charged- Device Model (C101)
