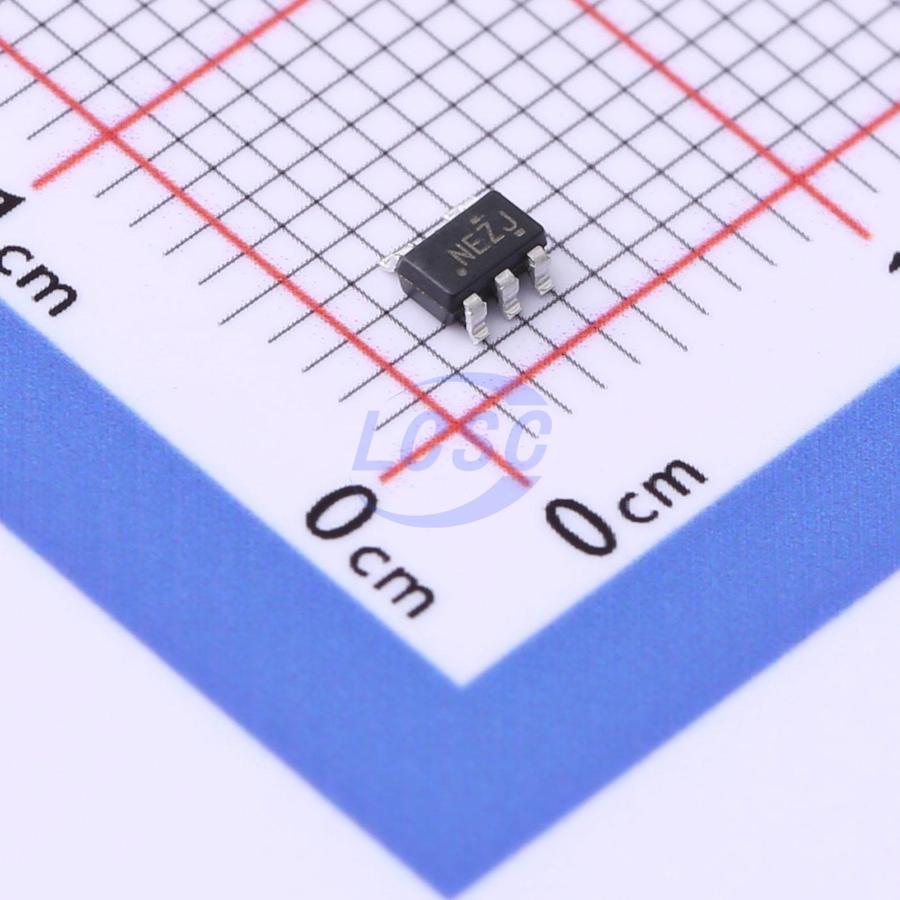

SN74LV1T125DBVR

1.6V~5.5V 1 1 5.5ns@5V,15pF SOT-23-5 Buffers, Drivers, Receivers, Transceivers RoHS

SOT-23-5ROHS3 CompliantActive

Single Power Supply Single Buffer Gate with 3-State Output CMOS Logic Level Shifter

Manufacturer: TI
Manufacturer part #: SN74LV1T125DBVR
Store part #: C473338
Package / case: SOT-23-5
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,07,155 in stock

#C473338

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹21.35	₹106.75
50+	₹17.62	₹881.00
150+	₹15.76	₹2,364.00
500+	₹14.35	₹7,175.00
3,000+	₹13.23	₹39,690.00
6,000+	₹12.67	₹76,020.00

Quantity (min 5, multiples of 5)

5 × ₹21.35

₹106.75

excl. GST

₹125.96 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

SN74LV1T125DBVR

₹106.75 for 5 + GST

Specifications

Function: Level shifting
Current - Output High(IOH): 8mA
Series: 74LV
Voltage - Supply: 1.6V~5.5V
Output Type: Tri-State
Current - Output Low(IOL): 8mA
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 10uA
Propagation Delay: 5.5ns@5V,15pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.025 g

Overview

SN74LV1T125 is a low voltage CMOS gate logic that operates at a wider voltage range for industrial, portable, telecom, and automotive applications. The output level is referenced to the supply voltage and is able to support 1.8V/2.5V/3.3V/5V CMOS levels. The input is designed with a lower threshold circuit to match 1.8V input logic at VCC = 3.3V and can be used in 1.8V to 3.3V level up translation. In addition, the 5V tolerant input pins enable down translation (e.g. 3.3V to 2.5V output at VCC = 2.5V). The wide VCC range of 1.8V to 5.5V allows generation of desired output levels to connect to controllers or processors. The SN74LV1T125 is designed with current-drive capability of 8 mA to reduce line reflections, overshoot, and undershoot caused by high-drive outputs.

Applications

Industrial controllers
Telecom
Portable applications
Servers
PC and notebooks
Automotive

Key features

Single-Supply Voltage Translator at 5.0/3.3/2.5/1.8V VCC Operating Range of 1.8V to 5.5V
1.2V(1) to 1.8V at 1.8V VCC
1.5V(1) to 2.5V at 2.5V VCC
1.8V(1) to 3.3V at 3.3V VCC
3.3V to 5.0V at 5.0V VCC
Down Translation:
3.3V to 1.8V at 1.8V VCC
3.3V to 2.5V at 2.5V VCC
5.0V to 3.3V at 3.3V VCC
Logic Output is Referenced to VCC
Output Drive:
8.0mA Output Drive at 5.0V
7.0mA Output Drive at 3.3V
3.0mA Output Drive at 1.8V
Characterized up to 50MHz at 3.3V VCC
2000-V Human-Body Model (A114-B, Class II)
200-V Machine Model (A115-A)
1000-V Charged-Device Model (C101)
Supports Standard Logic Pinouts

Alternatives
