DIODESDatasheet (PDF)

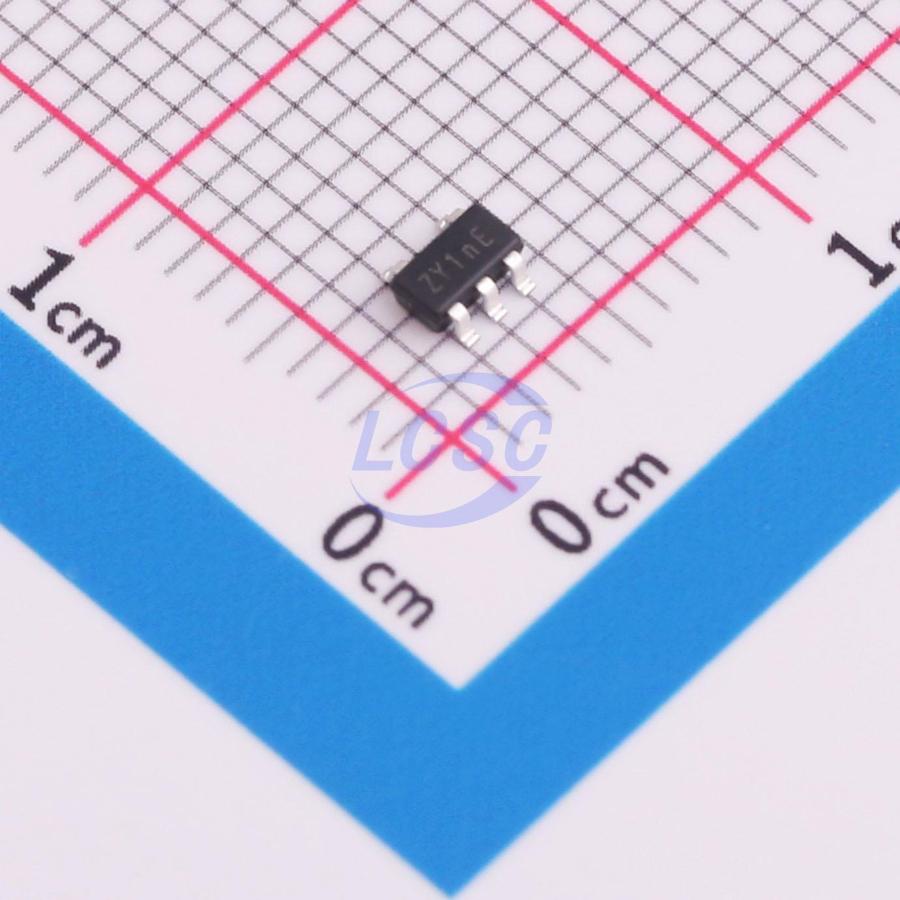

74AHCT1G125W5-7
Schmitt trigger 4.5V~5.5V 1 1 4.7ns@5V,50pF SOT-25-5 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-25-5ROHS3 CompliantActive
SINGLE BUFFER GATE WITH 3-STATE OUTPUT
- Manufacturer
- DIODES
- Manufacturer part #
- 74AHCT1G125W5-7
- Store part #
- C842287
- Package / case
- SOT-25-5
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,255 in stock
#C842287
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.26 | ₹81.30 |
| 50+ | ₹12.67 | ₹633.50 |
| 150+ | ₹10.88 | ₹1,632.00 |
| 500+ | ₹9.54 | ₹4,770.00 |
| 3,000+ | ₹8.45 | ₹25,350.00 |
| 6,000+ | ₹7.92 | ₹47,520.00 |
5 × ₹16.26
₹81.30
excl. GST
₹95.93 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AHCT1G125W5-7
₹81.30 for 5 + GST
Specifications
- Function
- Output enable
- Input type
- Schmitt trigger
- Current - Output High(IOH)
- 8mA
- Series
- 74AHCT
- Voltage - Supply
- 4.5V~5.5V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 8mA
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 4.7ns@5V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.061 g
Overview
The 74AHCT1G125 is a single non-inverting buffer/bus driver with a 3-state output. The output enters a high impedance state when a HIGH-level is applied to the output enable (OE) pin. The device is designed for operation with a power supply range of 4.5V to 5.5V.
Applications
- General Purpose Logic
- Wide array of products such as:
- PCs, networking, notebooks, netbooks, PDAs
- Computer peripherals, hard drives, CD/DVD ROM
- TV, DVD, DVR, set top box
- Phones, Personal Navigation / GPS
- MP3 players, Cameras, Video Recorders
Key features
- Supply Voltage Range from 4.5V to 5.5V
- ±8 mA Output Drive at 5.0V CMOS low power consumption
- Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for Slower Input Rise and Fall Time
- ESD Protection per JESD 22: Exceeds 200-V Machine Model (A115-A); Exceeds 2000-V Human Body Model (A114-A); Exceeds 1000-V Charged Device Model (C101C)
- Latch-Up Exceeds 100mA per JESD 78, Class II
- SOT25 and SOT353: Assembled with “Green” Molding Compound (no Br, Sb)
- Lead Free Finish / RoHS Compliant
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT1G125QW5-7#C3755013DIODES · SOT-25 | DIODES | SOT-25 | 5 | ₹9.75 · 5 in stock | View |
 | 74AHCT1G126W5-7#C842288DIODES · SOT-25 | DIODES | SOT-25 | 2,330 | ₹9.13 · 2,330 in stock | View |
 | 74AHCT1G126GV,125#C554572Nexperia · SC-74A | Nexperia | SC-74A | 2,110 | ₹11.34 · 2,110 in stock | View |
 | 74AHCT1G125GV,125#C12494Nexperia · SOT-753 | Nexperia | SOT-753 | 455 | ₹45.10 · 455 in stock | View |
 | SN74AHCT1G126DBVR-TP#C42460245TECH PUBLIC · SOT-23-5 | TECH PUBLIC | SOT-23-5 | 2,970 | ₹5.34 · 2,970 in stock | View |
