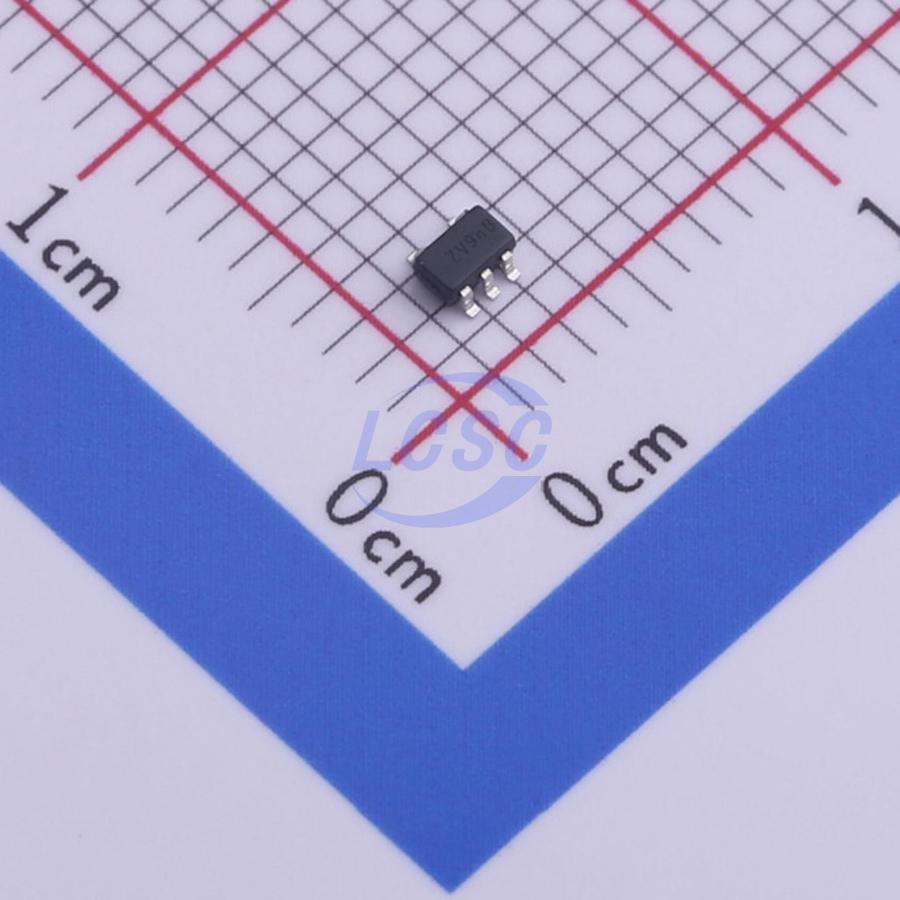

74AHCT1G14SE-7

Schmitt trigger 4.5V~5.5V 8ns@5V,50pF 2uA 1 SOT-353 Gates and Inverters RoHS

SOT-353ROHS3 CompliantActive

SINGLE SCHMITT-TRIGGER INVERTER

Manufacturer: DIODES
Manufacturer part #: 74AHCT1G14SE-7
Store part #: C460501
Package / case: SOT-353
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,650 in stock

#C460501

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
10+	₹8.39	₹83.90
100+	₹6.76	₹676.00
300+	₹5.94	₹1,782.00
3,000+	₹5.33	₹15,990.00
6,000+	₹4.84	₹29,040.00
9,000+	₹4.60	₹41,400.00

Quantity (min 10, multiples of 10)

10 × ₹8.39

₹83.90

excl. GST

₹99.00 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AHCT1G14SE-7

₹83.90 for 10 + GST

Specifications

output type: Push-pull
Logic Family: 74AHCT
Input Type: Schmitt trigger
Voltage - Supply: 4.5V~5.5V
Output Logic Level - Low: 550mV
Propagation Delay: 8ns@5V,50pF
Features: Noise suppression function
Operating Temperature: -40℃~+125℃
Input Logic Level - Low: 500mV~600mV
Input Logic Level - High: 1.9V~2.1V
Output Logic Level - High: 3.7V
Quiescent Current(Iq): 2uA
Number of Channels: 1
Current - Output High(IOH): 8mA
Current - Output Low(IOL): 8mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.014 g

Overview

The 74AHCT1G14 is a single 1-input Schmitt-trigger inverter gate with a standard push-pull output. The device is designed for operation with a power supply range of 4.5V to 5.5V. The gate performs the positive Boolean function: Y = A(overline)

Applications

General Purpose Logic
Wide array of products such as:
PCs, networking, notebooks, netbooks, PDAs
Computer peripherals, hard drives, CD/DVD ROM
TV, DVD, DVR, set top box
Cell Phones, Personal Navigation / GPS, MP3 players, Cameras, Video Recorders

Key features

Supply Voltage Range from 4.5V to 5.5V
±8 mA Output Drive at 5.0V
CMOS low power consumption
Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for Slower Input Rise and Fall Time
ESD Protection per JESD 22: Exceeds 200-V Machine Model (A115-A); Exceeds 2000-V Human Body Model (A114-A); Exceeds 1000-V Charged Device Model (C101C)
Latch-Up Exceeds 100mA per JESD 78, Class II
SOT25 and SOT353: Assembled with “Green” Molding Compound (no Br, Sb)
Lead Free Finish / RoHS Compliant
