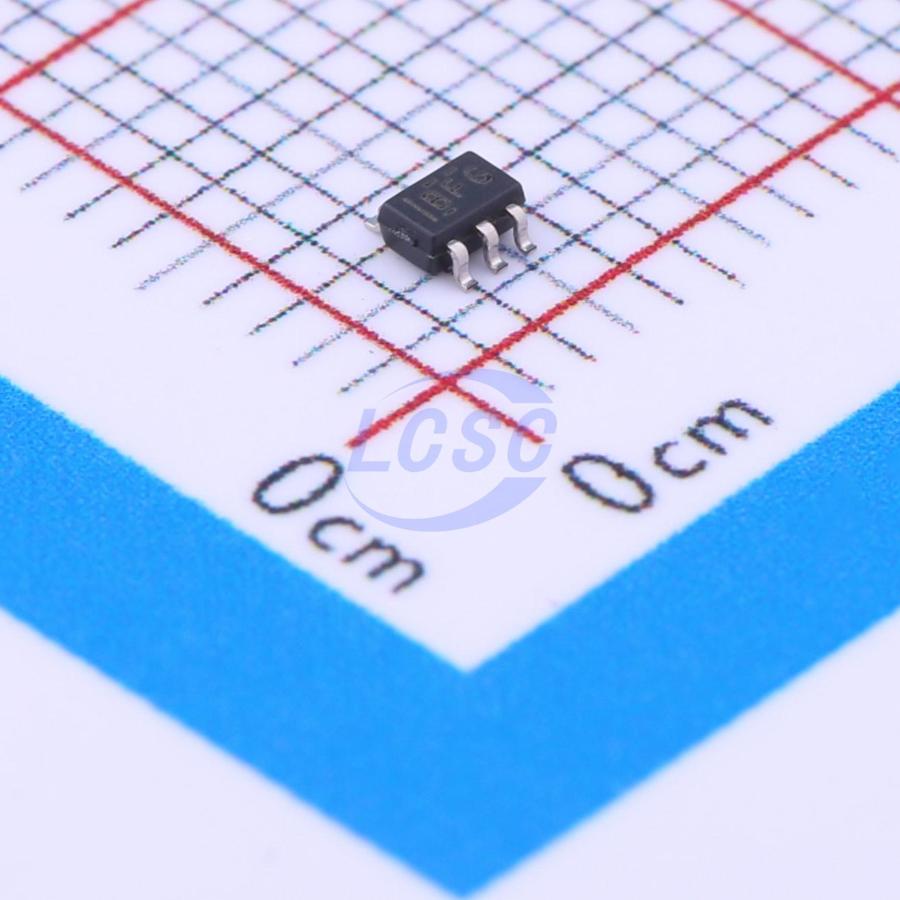

SN74AHCT1G14DCKR
Schmitt trigger 4.5V~5.5V 8ns@5V,50pF 1uA 1 SOT-353 Gates and Inverters RoHS
SOT-353ROHS3 CompliantActive
SINGLE SCHMITT-TRIGGER INVERTER GATE
- Manufacturer
- TI
- Manufacturer part #
- SN74AHCT1G14DCKR
- Store part #
- C7486
- Package / case
- SOT-353
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,160 in stock
#C7486
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹13.34 | ₹66.70 |
| 50+ | ₹10.49 | ₹524.50 |
| 150+ | ₹9.06 | ₹1,359.00 |
| 500+ | ₹7.99 | ₹3,995.00 |
| 3,000+ | ₹7.14 | ₹21,420.00 |
| 6,000+ | ₹6.71 | ₹40,260.00 |
5 × ₹13.34
₹66.70
excl. GST
₹78.71 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
SN74AHCT1G14DCKR
₹66.70 for 5 + GST
Specifications
- output type
- Push-pull
- Logic Family
- 74AHCT
- Input Type
- Schmitt trigger
- Voltage - Supply
- 4.5V~5.5V
- Output Logic Level - Low
- 550mV
- Propagation Delay
- 8ns@5V,50pF
- Features
- Noise suppression function
- Operating Temperature
- -40℃~+125℃
- Input Logic Level - High
- 2V
- Input Logic Level - Low
- 500mV~600mV
- Output Logic Level - High
- 3.7V
- Quiescent Current(Iq)
- 1uA
- Number of Channels
- 1
- Current - Output High(IOH)
- 8mA
- Current - Output Low(IOL)
- 8mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.048 g
Overview
The SN74AHCT1G14 contains a single inverter gate. The device performs the Boolean function Y (check) = A (overline). The device functions as an independent inverter gate, but because of the Schmitt action, gates may have different input threshold levels for positive- (VT+) and negative-going (VT-) signals.
Key features
- Operating Range 4.5-V to 5.5-V
- Max propagation delay (tₚd) of 8 ns at 5-V
- Low Power Consumption, 10-μA Max ICC
- ±8-mA Output Drive at 5-V
- Inputs Are TTL-Voltage Compatible
- Latch-Up Performance Exceeds 250 mA Per JESD 17
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74AHCT1G14SE-7#C460501DIODES · SOT-353 | DIODES | SOT-353 | 3,650 | ₹8.39 · 3,650 in stock | View |
 | 74AHCT1G04SE-7#C460498DIODES · SOT-353 | DIODES | SOT-353 | 20 | ₹10.88 · 20 in stock | View |
 | 74HCT1G14GW,125#C458805Nexperia · TSSOP-5 | Nexperia | TSSOP-5 | 4,210 | ₹18.73 · 4,210 in stock | View |
 | 74AHCT1G14GW-Q100,#C554577Nexperia · TSSOP-5-1.3mm | Nexperia | TSSOP-5-1.3mm | 140 | ₹14.45 · 140 in stock | View |
 | 74AHCT1G14GW,125#C12505Nexperia · SOT-353 | Nexperia | SOT-353 | On request | Price on request | Quote |
