MDD(Microdiode Semiconductor)Datasheet (PDF)

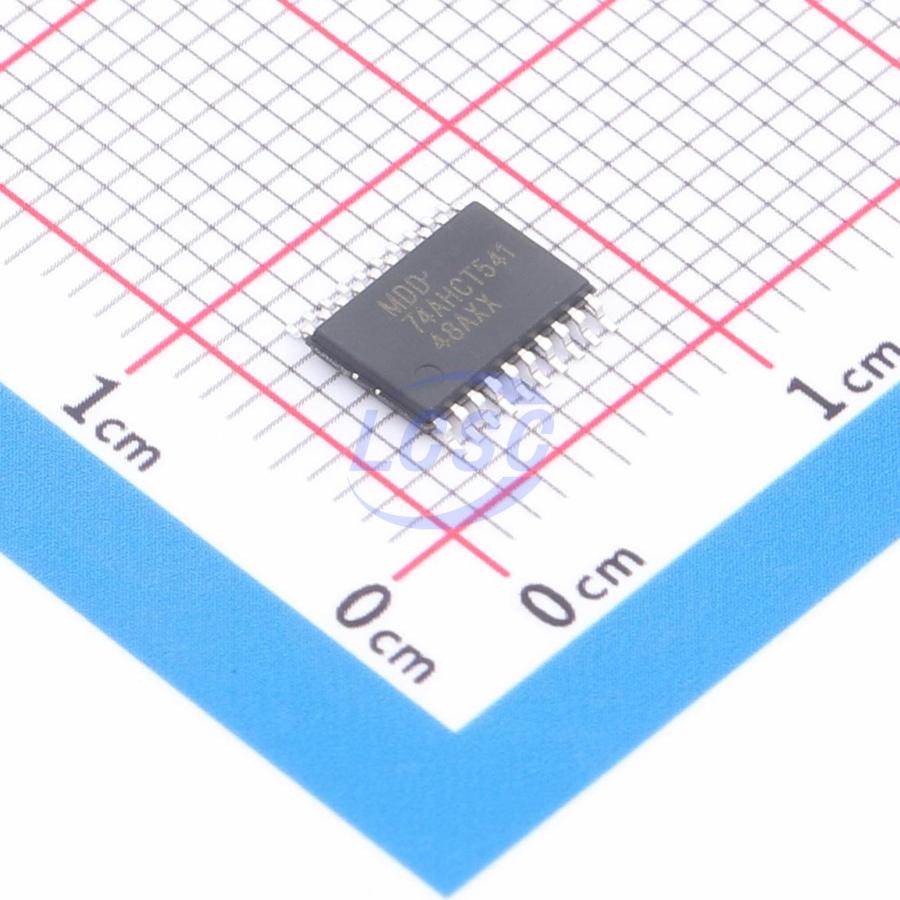

74AHCT541PW
TTL-compatible CMOS 4.5V~5.5V 8 1 10ns@5.5V,15pF TSSOP-20L Buffers, Drivers, Receivers, Transceivers
TSSOP-20LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74AHCT541PW
- Store part #
- C54411090
- Package / case
- TSSOP-20L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,315 in stock
#C54411090
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹34.05 | ₹170.25 |
| 50+ | ₹26.70 | ₹1,335.00 |
| 150+ | ₹23.55 | ₹3,532.50 |
| 500+ | ₹19.61 | ₹9,805.00 |
| 2,500+ | ₹17.85 | ₹44,625.00 |
| 5,000+ | ₹16.80 | ₹84,000.00 |
5 × ₹34.05
₹170.25
excl. GST
₹200.90 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74AHCT541PW
₹170.25 for 5 + GST
Specifications
- Input type
- TTL-compatible CMOS
- Current - Output High(IOH)
- 8mA
- Series
- 74AHCT
- Voltage - Supply
- 4.5V~5.5V
- Current - Output Low(IOL)
- 8mA
- Output Type
- Tri-State
- Number of Bits per Element
- 8
- Channel Type
- Unidirectional
- Number of Elements
- 1
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 10ns@5.5V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.283 g
Overview
The 74AHC541 and 74AHCT541 are 8-bit buffers/line drivers with 3-state outputs. The devices feature two output enable inputs (OE1 and OE2). When OEn is HIGH, the outputs are in a high-impedance off-state. The inputs are overvoltage tolerant, allowing these devices to be used as translators in mixed-voltage environments.
Key features
- Wide supply voltage range: 2.0 V ~ 5.5 V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 200 mA
- Input overvoltage tolerance up to 5.5 V
- Input levels:
- 74AHC541: CMOS level
- 74AHCT541: TTL level
- ESD protection:
- HBM ANSI/ESDA/JEDEC JS-001 Class 2A exceeds 2000 V
- CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 1000 V
- Multiple package options
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HCT541PW#C53552921MDD(Microdiode Semiconductor) · TSSOP-20 | MDD(Microdiode Semiconductor) | TSSOP-20 | 50 | ₹30.34 · 50 in stock | View |
