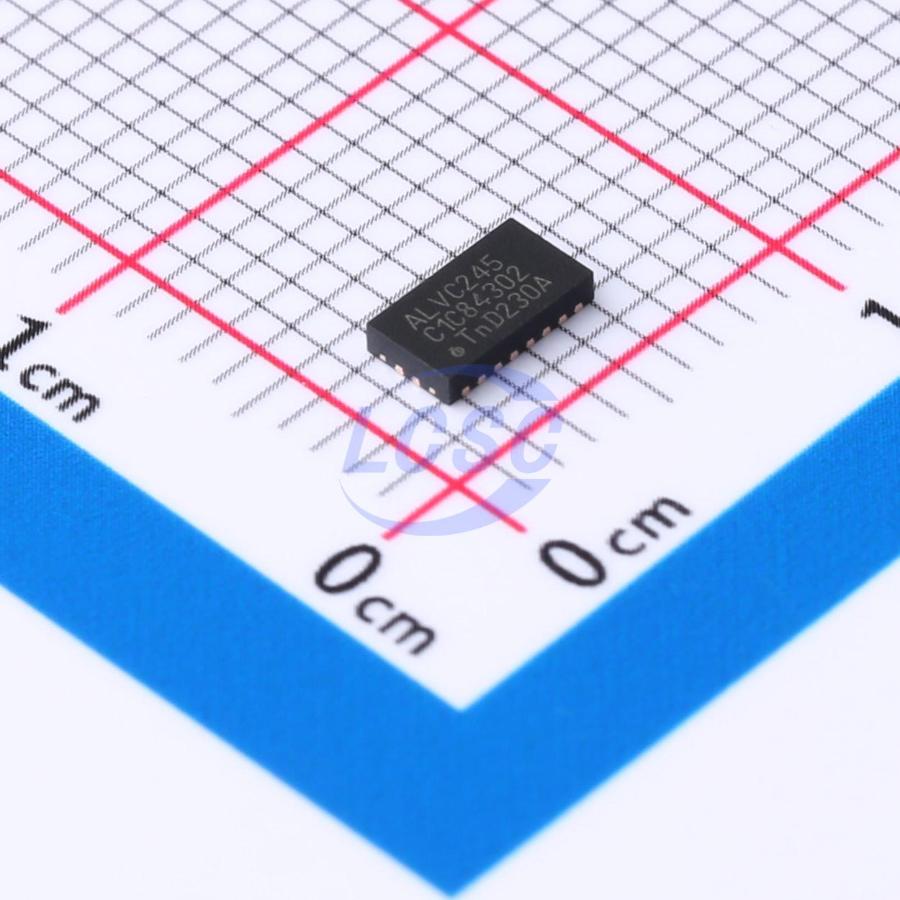

74ALVC245BQ,115
Schmitt trigger 1.65V~3.6V 8 1 2.3ns@3.3V,50pF DHVQFN-20-EP(2.5x4.5) Buffers, Drivers, Receivers, Transceivers RoHS
DHVQFN-20-EP(2.5x4.5)ROHS3 CompliantActive
Octal bus transceiver; 3-state
- Manufacturer
- Nexperia
- Manufacturer part #
- 74ALVC245BQ,115
- Store part #
- C554782
- Package / case
- DHVQFN-20-EP(2.5x4.5)
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
3,020 in stock
#C554782
Stock & price checked 47 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹32.86 | ₹164.30 |
| 50+ | ₹25.81 | ₹1,290.50 |
| 150+ | ₹22.78 | ₹3,417.00 |
| 500+ | ₹19.01 | ₹9,505.00 |
| 3,000+ | ₹17.33 | ₹51,990.00 |
| 6,000+ | ₹16.33 | ₹97,980.00 |
5 × ₹32.86
₹164.30
excl. GST
₹193.87 incl. 18% GST
- Dispatch in 15-18 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74ALVC245BQ,115
₹164.30 for 5 + GST
Specifications
- Input type
- Schmitt trigger
- Voltage - Supply
- 1.65V~3.6V
- Output Type
- Tri-State
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 80uA
- Function
- Power-off isolation;Output enable
- Current - Output High(IOH)
- 24mA
- Series
- 74ALVC
- Current - Output Low(IOL)
- 24mA
- Number of Bits per Element
- 8
- Channel Type
- Bidirectional
- Number of Elements
- 1
- Propagation Delay
- 2.3ns@3.3V,50pF
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 1 (unlimited)
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.16 g
Overview
The 74ALVC245 is an 8-bit transceiver with 3-state outputs. The device features an output enable (OE) and send/receive (DIR) for direction control. A HIGH on OE causes the outputs to assume a high-impedance OFF-state. Schmitt trigger action on all inputs makes the device tolerant of slow rise and fall times. This device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output, preventing the potentially damaging backflow current through the device when it is powered down.
Key features
- Wide supply voltage range from 1.65 V to 3.6 V
- CMOS low power dissipation
- Overvoltage tolerant inputs to 3.6 V
- Direct interface with TTL levels
- IOFF circuitry provides partial Power-down mode operation
- Latch-up performance exceeds 250 mA per JESD78 Class II.A
- Complies with JEDEC standard:
- JESD8-7 (1.65 V to 1.95 V)
- JESD8-5 (2.3 V to 2.5 V)
- JESD8C/JESD36 (2.7 V to 3.6 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
