JSMSEMIDatasheet (PDF)

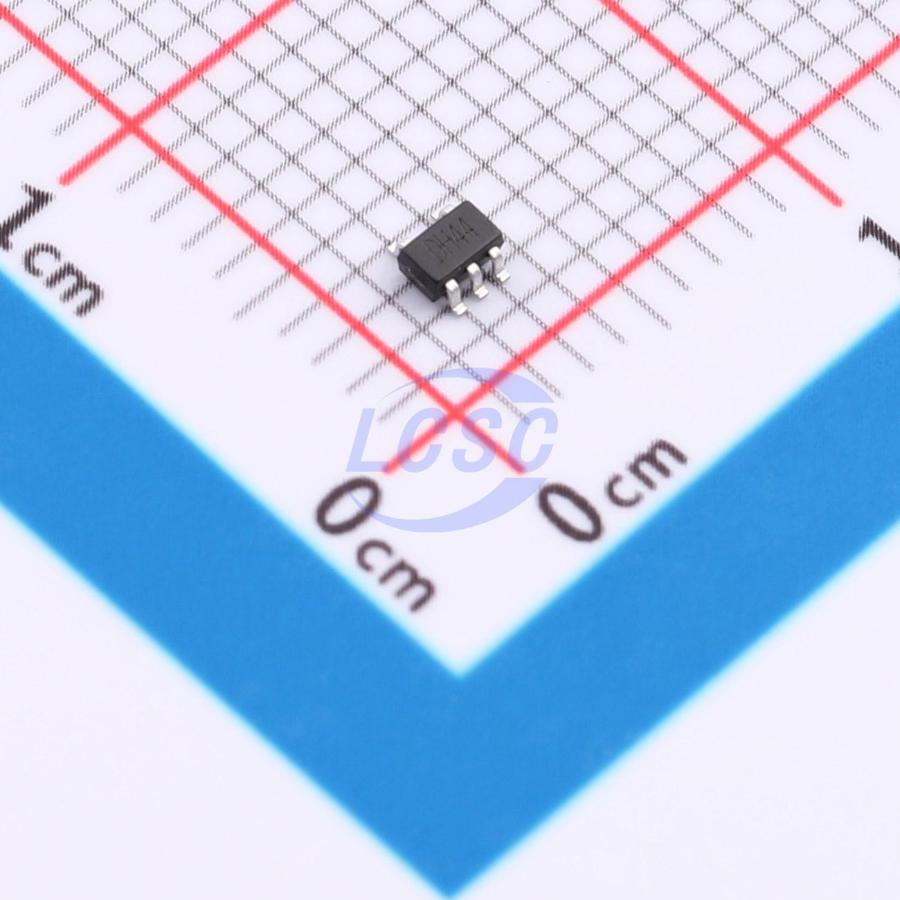

74AUP1G07GW,125-JSM
0.8V~3.6V 1 1 2.2ns@3.3V,5pF SOT-353 Buffers, Drivers, Receivers, Transceivers RoHS
SOT-353ROHS CompliantActive
- Manufacturer
- JSMSEMI
- Manufacturer part #
- 74AUP1G07GW,125-JSM
- Store part #
- C53114337
- Package / case
- SOT-353
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C53114337
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹12.28 | ₹61.40 |
| 50+ | ₹9.78 | ₹489.00 |
| 150+ | ₹8.53 | ₹1,279.50 |
| 500+ | ₹7.59 | ₹3,795.00 |
| 3,000+ | ₹6.84 | ₹20,520.00 |
| 6,000+ | ₹6.47 | ₹38,820.00 |
5 × ₹12.28
₹61.40
excl. GST
₹72.45 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP1G07GW,125-JSM
₹61.40 for 5 + GST
Specifications
- Voltage - Supply
- 0.8V~3.6V
- Series
- 74AUP
- Output Type
- Open-drain
- Number of Bits per Element
- 1
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 1
- Quiescent Supply Current
- 1uA
- Propagation Delay
- 2.2ns@3.3V,5pF
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.033 g
Overview
The 74AUP1G07 is a single non-inverting buffer with open-drain output. The open-drain output can be connected to other open-drain outputs to realize a negative-logic wired-OR or positive-logic wired-AND function. The device ensures extremely low static and dynamic power consumption across the entire VCC operating range (0.8V ~ 3.6V). The IOFF circuitry makes the device suitable for applications requiring partial power-down. The IOFF circuitry disables the output to prevent damaging backflow current when the device is powered down.
Key features
- Supply voltage range: 0.8V ~ 3.6V
- Low quiescent current: ICC = 1 uA (max)
- Input voltage up to 3.6V
- IOFF circuitry supports partial power-down operation
- Operating temperature range: -40℃ ~ +125℃
- Package: SOT353
