DIODES

74AUP1G08FW5-7

Schmitt trigger 800mV~3.6V 6.2ns@3.3V,30pF 500nA X1-DFN1010-6 Gates and Inverters RoHS

X1-DFN1010-6ROHS3 CompliantActive

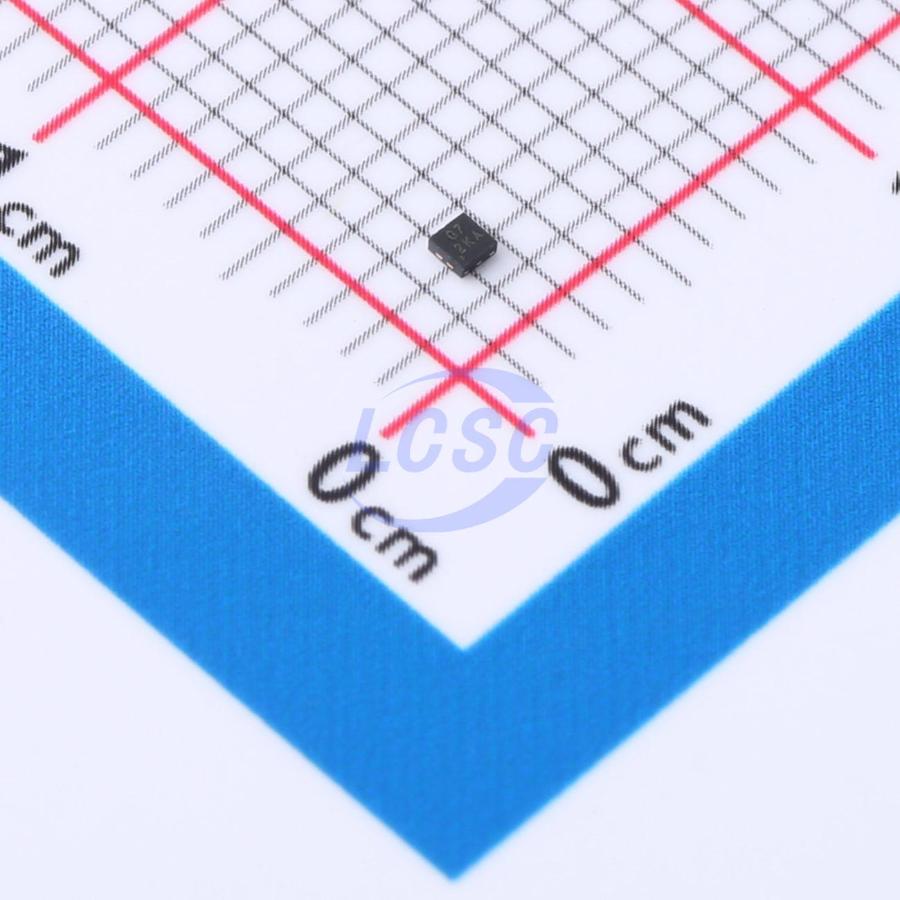

Single 2-Input Positive AND Gate

Manufacturer: DIODES
Manufacturer part #: 74AUP1G08FW5-7
Store part #: C842335
Package / case: X1-DFN1010-6
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,890 in stock

#C842335

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹11.92	₹59.60
50+	₹9.43	₹471.50
150+	₹8.19	₹1,228.50
500+	₹7.25	₹3,625.00
2,500+	₹6.51	₹16,275.00
5,000+	₹6.14	₹30,700.00

Quantity (min 5, multiples of 5)

5 × ₹11.92

₹59.60

excl. GST

₹70.33 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

74AUP1G08FW5-7

₹59.60 for 5 + GST

Specifications

Input Type: Schmitt trigger
output type: Push-pull
Logic Family: 74AUP Series
Voltage - Supply: 800mV~3.6V
Output Logic Level - Low: 440mV
Propagation Delay: 6.2ns@3.3V,30pF
Features: Local shutdown mode
Input Logic Level - Low: 700mV;900mV
Input Logic Level - High: 1.6V~2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 2.6V
Quiescent Current(Iq): 500nA
Current - Output High(IOH): 4mA
Number of Channels: 1;2
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.03 g

Overview

The advanced, ultra-low power (AUP) CMOS logic family is designed for low power and extended battery life in portable applications. The 74AUP1G08 is a single, two-input, positive AND gate with a standard push-pull output designed for operation over a power supply range of 0.8V to 3.6V. The device is fully specified for partial powerdown applications using IOFF. The IOFF circuitry disables the output, preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function:

Applications

Tablets, e-readers
Cell phones, personal navigation/GPS Systems
MP3 players, cameras, video recorders
PCs, notebooks, netbooks
Computer peripherals, hard drives, SSDs, CD/DVD ROMs
TVs, DVDs, DVRs, set-top boxes

Key features

Advanced Ultra-Low Power (AUP) CMOS
Supply Voltage Range from 0.8V to 3.6V
±4mA Output Drive at 3.0V
Low Static Power Consumption Icc<0.9μA
Low Dynamic Power Consumption CpD = 6.3 pF (Typical at 3.6V)
Schmitt Trigger Action at All Inputs Make the Circuit Tolerant for Slower Input Rise and Fall Time. The hysteresis is typically 250mV at VCC = 3.0V
IOFF Supports Partial Power-Down Mode Operation
ESD Protection Exceeds JESD 22 2000V Human Body Model (A114)
Exceeds 1000V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Leadless packages named per JESD30E
Totally Lead-Free & Fully RoHS Compliant
Halogen- and Antimony- Free. “Green” Device

Alternatives

Similar parts — check the datasheet before substituting.

	Manufacturer	Package	Stock	Price from (excl. GST)	Action
SN74AUP1G08DSFR#C2682127TI · SON-6(1x1)	TI	SON-6(1x1)	2	₹105.67 · 2 in stock	View
SN74AUP1G08DSF2#C2860776TI · SON-6(1x1)	TI	SON-6(1x1)	21	₹76.87 · 21 in stock	View
74AUP1G08GS,132#C554940Nexperia · XSON-6(1x1)	Nexperia	XSON-6(1x1)	4,035	₹18.14 · 4,035 in stock	View
74AUP1G09FW5-7#C526333DIODES · X1-DFN1010-6	DIODES	X1-DFN1010-6	1,680	₹12.40 · 1,680 in stock	View
74AUP1G09FW4-7#C842361DIODES · X2-DFN1010-6	DIODES	X2-DFN1010-6	29	₹83.34 · 29 in stock	View
