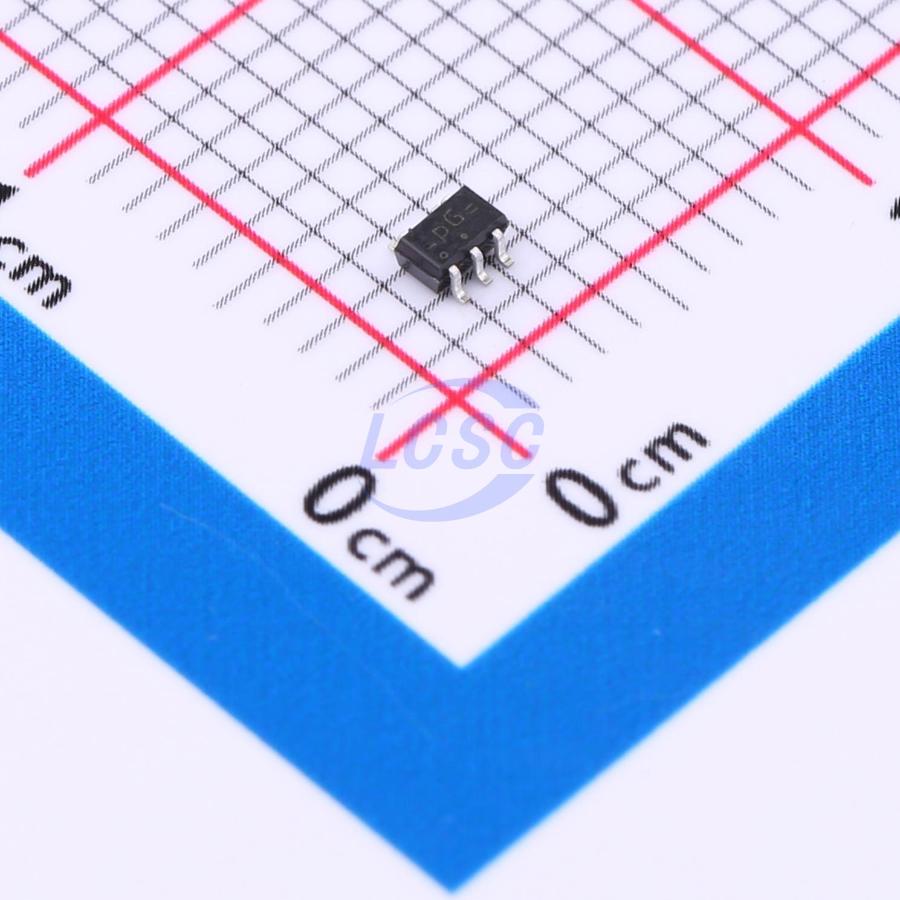

Nexperia

74AUP1G32GW-Q100H

Schmitt trigger 800mV~3.6V 3.5ns@3.0V,5pF 900nA TSSOP-5-1.3mm Gates and Inverters

TSSOP-5-1.3mmRoHSActive

Low-power 2-input OR-gate

Manufacturer: Nexperia
Manufacturer part #: 74AUP1G32GW-Q100H
Store part #: C545831
Package / case: TSSOP-5-1.3mm
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,995 in stock

#C545831

Stock & price checked 3 days ago

Quantity	Unit price	Pack price
5+	₹40.59	₹202.95
50+	₹31.82	₹1,591.00
150+	₹28.06	₹4,209.00
500+	₹23.36	₹11,680.00
3,000+	₹21.27	₹63,810.00
6,000+	₹20.03	₹1,20,180.00

Quantity (min 5, multiples of 5)

5 × ₹40.59

₹202.95

excl. GST

₹239.48 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 15-18 working days
GST invoice with every order
Standard pack: 3,000 per reel

74AUP1G32GW-Q100H

₹202.95 for 5 + GST

Need this with the rest of your board? Upload the BOM — we price every line.Upload BOM

Specifications

Input Type: Schmitt trigger
Logic Family: 74AUP
Voltage - Supply: 800mV~3.6V
Propagation Delay: 3.5ns@3.0V,5pF
Output Logic Level - Low: 440mV
Input Logic Level - Low: 700mV;900mV
Input Logic Level - High: 1.6V;2V
Features: Local shutdown mode
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 1.9V;2.6V
Quiescent Current(Iq): 900nA
Current - Output High(IOH): 4mA
Number of Channels: 1;2
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Moisture sensitivity: MSL 1 (unlimited)
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 3,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.038 g

Overview

The 74AUP1G32-Q100 provides the single 2-input OR function. Schmitt-trigger action at all inputs makes the circuit tolerant to slower input rise and fall times across the entire VCC range from 0.8 V to 3.6 V. This device ensures a very low static and dynamic power consumption across the entire VCC range from 0.8 V to 3.6 V. This device is fully specified for partial power-down applications using IOFF. The IOFF circuitry disables the output, preventing the damaging backflow current through the device when it is powered down. This product has been qualified to the Automotive Electronics Council (AEC) standard Q100 (Grade 1) and is suitable for use in automotive applications.

Key features

Automotive product qualification in accordance with AEC-Q100 (Grade 1)
Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
Wide supply voltage range from 0.8 V to 3.6 V
High noise immunity
Complies with JEDEC standards: JESD8-12 (0.8 V to 1.3 V) JESD8-11 (0.9 V to 1.65 V) JESD8-7 (1.2 V to 1.95 V) JESD8-5 (1.8 V to 2.7 V) JESD8-B (2.7 V to 3.6 V)
Low static power consumption; ICC = 0.9 μA (maximum)
Latch-up performance exceeds 100 mA per JESD 78 Class II
Inputs accept voltages up to 3.6 V
Low noise overshoot and undershoot <10 % of VCC
IOFF circuitry provides partial power-down mode operation
ESD protection: HBM: ANSI/ESDA/JEDEC JS-001 class 3A exceeds 5000 V CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
