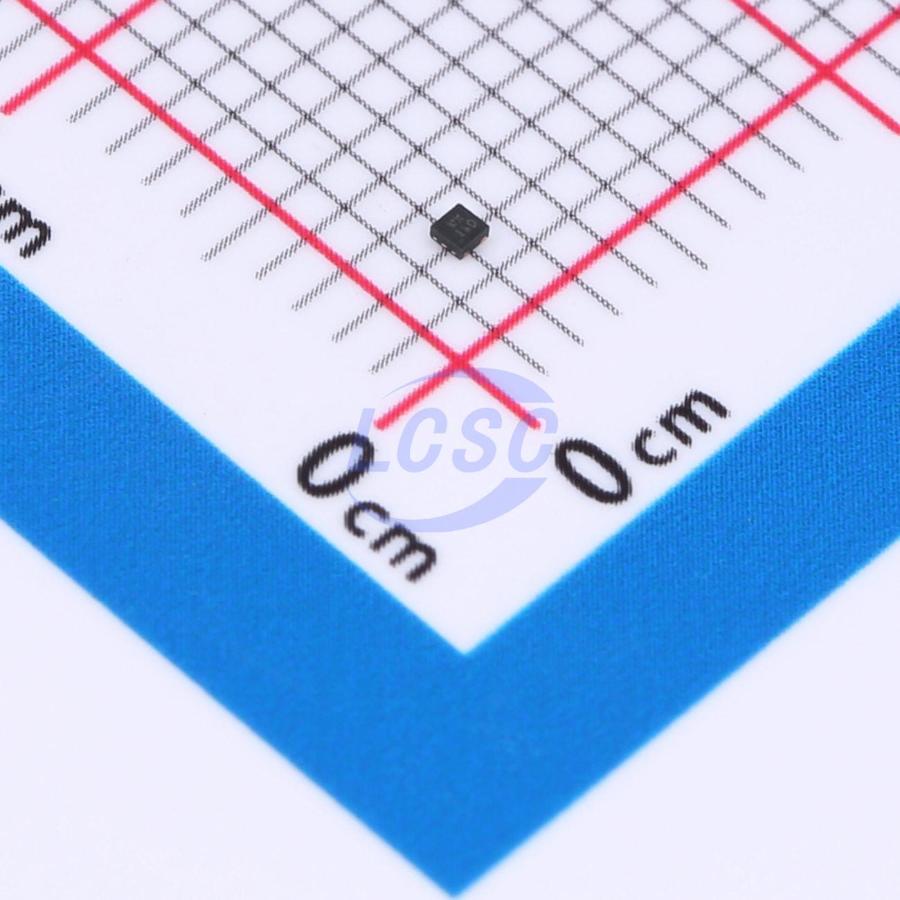

DIODES

74AUP1G34FS3-7

Schmitt trigger 0.8V~3.6V 1 1 2.1ns@3.3V,5pF X2-DFN0808-4 Buffers, Drivers, Receivers, Transceivers RoHS

X2-DFN0808-4ROHS3 CompliantActive

SINGLE BUFFER GATE

Manufacturer: DIODES
Manufacturer part #: 74AUP1G34FS3-7
Store part #: C842353
Package / case: X2-DFN0808-4
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

4,950 in stock

#C842353

Stock & price checked 7 days ago

Quantity	Unit price	Pack price
10+	₹6.15	₹61.50
100+	₹4.92	₹492.00
300+	₹4.30	₹1,290.00
1,000+	₹3.85	₹3,850.00
5,000+	₹3.48	₹17,400.00
10,000+	₹3.29	₹32,900.00

Quantity (min 10, multiples of 10)

10 × ₹6.15

₹61.50

excl. GST

₹72.57 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 5,000 per reel

74AUP1G34FS3-7

₹61.50 for 10 + GST

Specifications

Function: Power-off isolation
Input type: Schmitt trigger
Current - Output High(IOH): 4mA
Series: 74AUP
Voltage - Supply: 0.8V~3.6V
Current - Output Low(IOL): 4mA
Output Type: Push-pull
Number of Bits per Element: 1
Channel Type: Unidirectional
Number of Elements: 1
Operating Temperature: -40℃~+125℃
Quiescent Supply Current: 900nA
Propagation Delay: 2.1ns@3.3V,5pF

Packaging & compliance

RoHS: ROHS3 Compliant
Lifecycle: Active
ECCN: EAR99
Packaging: Tape & Reel (TR)
Standard pack: 5,000 / Reel
Sold per: Piece
Minimum order: 10 (multiples of 10)
Unit weight: 0.029 g

Overview

The Advanced, Ultra Low Power (AUP) CMOS logic family is designed for low power and extended battery life in portable applications. The 74AUP1G34 is a single buffer gate with a standard push-pull output designed for operation over a power supply range of 0.8V to 3.6V. The device is fully specified for partial power down applications using IOFF. The IOFF circuitry disables the output preventing damaging current backflow when the device is powered down. The gate performs the positive Boolean function: Y = A

Applications

Tablets, E-readers
Cell Phones, Personal Navigation / GPS
MP3 Players, Cameras, Video Recorders
PCs, Ultrabooks, Notebooks, Netbooks
Computer Peripherals, Hard Drives, SSDs, CD/DVD ROMs
TVs, DVDs, DVRs, Set-Top Boxes

Key features

Advanced Ultra Low Power (AUP) CMOS
Supply Voltage Range from 0.8V to 3.6V
±4mA Output Drive at 3.0V
Low Static Power Consumption lCC < 0.9μA
Low Dynamic Power Consumption CPD = 6.3pF (Typical at 3.6V)
Schmitt Trigger Action at all inputs makes the circuit tolerant for slower input rise and fall time. The hysteresis is typically 250mV at VCC = 3.0V
IOFF Supports Partial-Power-Down Mode Operation
ESD Protection Exceeds JESD 22 2000-V Human Body Model (A114) Exceeds 1000-V Charged Device Model (C101)
Latch-Up Exceeds 100mA per JESD 78, Class I
Leadless Packages Named per JESD30E
Totally Lead-Free & Fully RoHS Compliant
Halogen and Antimony Free. “Green” Device
