TECH PUBLICDatasheet (PDF)

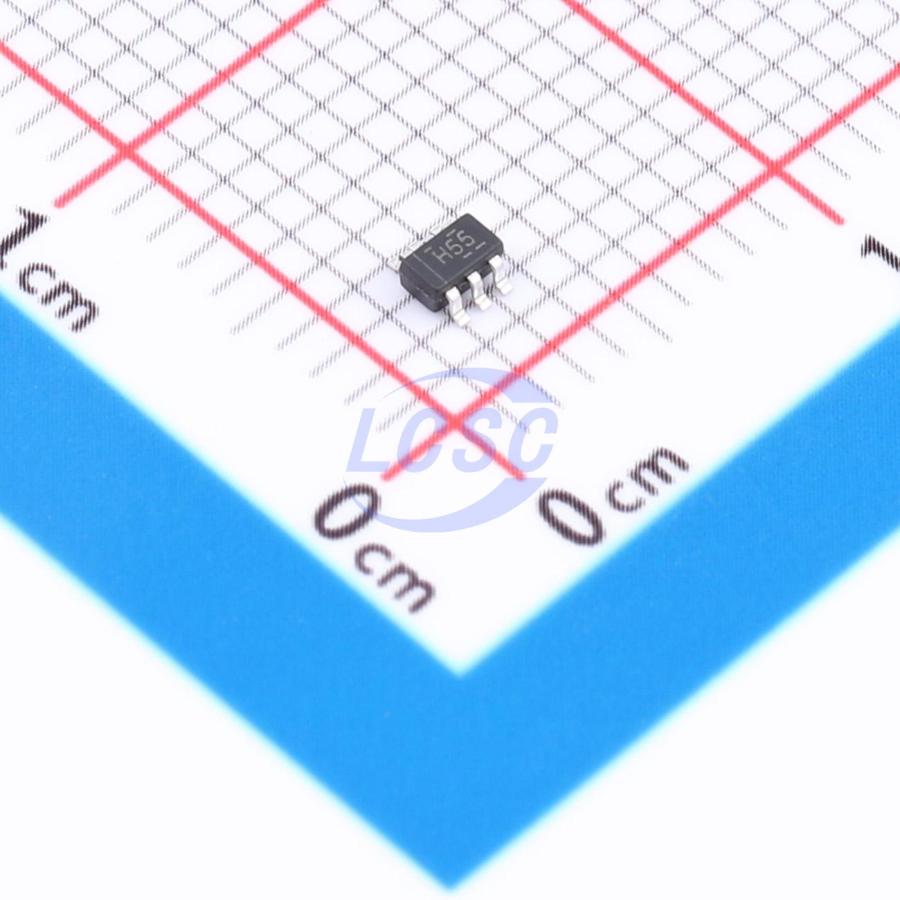

74AUP2G07GW-TP
0.8V~3.6V 2 2 2.2ns@3.3V,5pF SOT-363 Buffers, Drivers, Receivers, Transceivers
SOT-363RoHSActive
- Manufacturer
- TECH PUBLIC
- Manufacturer part #
- 74AUP2G07GW-TP
- Store part #
- C51886126
- Package / case
- SOT-363
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,990 in stock
#C51886126
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 10+ | ₹8.04 | ₹80.40 |
| 100+ | ₹6.34 | ₹634.00 |
| 300+ | ₹5.48 | ₹1,644.00 |
| 3,000+ | ₹4.84 | ₹14,520.00 |
| 6,000+ | ₹4.33 | ₹25,980.00 |
| 9,000+ | ₹4.07 | ₹36,630.00 |
10 × ₹8.04
₹80.40
excl. GST
₹94.87 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 3,000 per reel
74AUP2G07GW-TP
₹80.40 for 10 + GST
Specifications
- Function
- Power-off isolation
- Series
- 74AUP
- Voltage - Supply
- 0.8V~3.6V
- Current - Output Low(IOL)
- 4mA
- Output Type
- Open-drain
- Number of Bits per Element
- 2
- Channel Type
- Unidirectional
- Number of Elements
- 2
- Operating Temperature
- -40℃~+125℃
- Quiescent Supply Current
- 500nA
- Propagation Delay
- 2.2ns@3.3V,5pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 3,000 / Reel
- Sold per
- Piece
- Minimum order
- 10 (multiples of 10)
- Unit weight
- 0.029 g
Overview
The 74AUP2G07GW-TP is a dual non-inverting buffer with open-drain outputs. The open-drain output structure allows connection with other open-drain outputs to implement active-low wired-OR or active-high wired-AND functions.
Applications
- Audio/video receivers
- Embedded PCs
- Personal digital assistants
- Solid-state drives
- Wireless headsets, keyboards, and mice
Key features
- Wide supply voltage range: 0.8V to 3.6V
- Input accepts voltages up to 3.6V
- IOFF supports partial power-down mode
- Low quiescent current; max Icc = 0.5μA
- ESD protection exceeds JESD 22: ±2000V HBM, ±200V MM, ±1000V CDM
