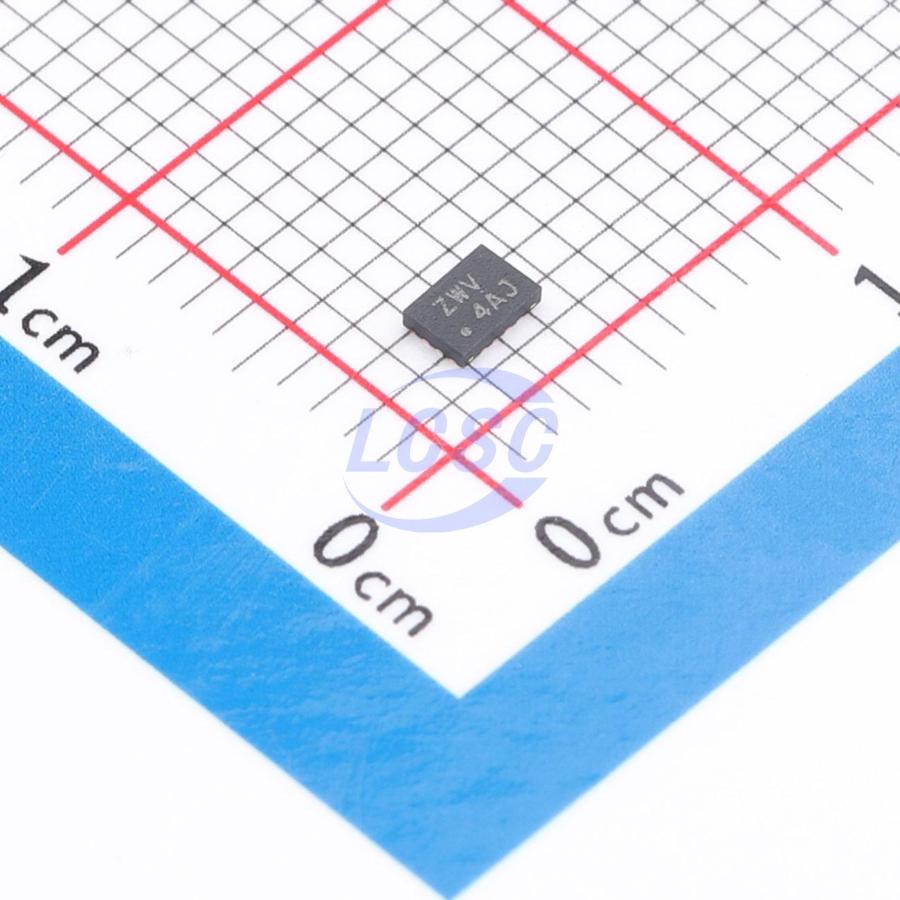

74AVCH4T245RSVR-NT

This 4-bit noninverting bus transceiver uses two separate configurable power-supply rails. The A port is designed to track V_CCA. V_CCA accepts any supply voltage from 1.2 V to 3.6 V. The B port is designed to track V_CCB. V_CCB accepts any supply voltage from 1.2 V to 3.6 V. The SN74AVCH4T245 is optimized to operate with V_CCA/V_CCB set at 1.4 V to 3.6 V. It is operational with V_CCA/V_CCB as low as 1.2 V. This allows for universal low voltage bidirectional translation between any of the 1.2V, 1.5V, 1.8V, 2.5V, and 3.3 V voltage nodes. The SN74AVCH4T245 is designed for asynchronous communication between two data buses. The logic levels of the direction-control (DIR) input and the output-enable (OE (overline)) input activate either the B-port outputs or the A-port outputs or place both output ports into the high-impedance mode. The device transmits data from the A bus to the B bus when the B-port outputs are activated, and from the B bus to the A bus when the A-port outputs are activated. The input circuitry on both A and B ports is always active and must have a logic HIGH or LOW level applied to prevent excess I_CC and ICCZ. The SN74AVCH4T245 device control pins (1DIR, 2DIR, 1OE, and 2OE) are supplied by V_CCA. This device is fully specified for partial-power-down applications using I_off. The I_off circuitry disables the outputs, preventing damaging current backflow through the device when it is powered down. Ensures that if either V_CC input is at GND, then both ports are in the high-impedance state, and the bus-hold circuitry on the powered-up side always stays active. Active bus-hold circuitry holds unused or undriven data inputs at a valid logic state. Use of pull-up or pull-down resistors with the bus-hold circuitry is not recommended. The bus-hold circuitry on the powered-up side always stays active. To ensure the high-impedance state during power up or power down, OC (overline) should be tied to V_CC through a pull-up resistor; the minimum value of the resistor is determined by the current-sinking capability of the driver.

Applications

• Personal Electronics
• Industrial
• Enterprise Telecom

Key features

• Control Inputs VI_H/VI_L Levels are Referenced to VCCA Voltage
• Fully Configurable Dual-Rail Design Allows Each Port to Operate Over the Full 1.2V to 3.6V Power Supply Range
• I/Os Are 4.6V Tolerant
• |off Supports Partial Power-Down-Mode Operation
• Bus Hold on Data Inputs Eliminates the Need for External pull-up/pull-down Resistors
• Max Data Rates
• 380 Mbps (1.8 V to 3.3 V Translation)
• 200 Mbps (< 1.8 V to 3.3 V Translation)
• 200 Mbps (Translate to 2.5 V or 1.8 V)
• 150 Mbps (Translate to 1.5 V)
• 100 Mbps (Translate to 1.2 V)
• Latch-Up Performance Exceeds 100 mA Per JESD 78, Class II
• ESD Protection Exceeds JESD 22 8000 V Human Body Model (A114-A) 200 V Machine Model (A115-A) 1000 V Charged-Device Model (C101)
