MDD(Microdiode Semiconductor)

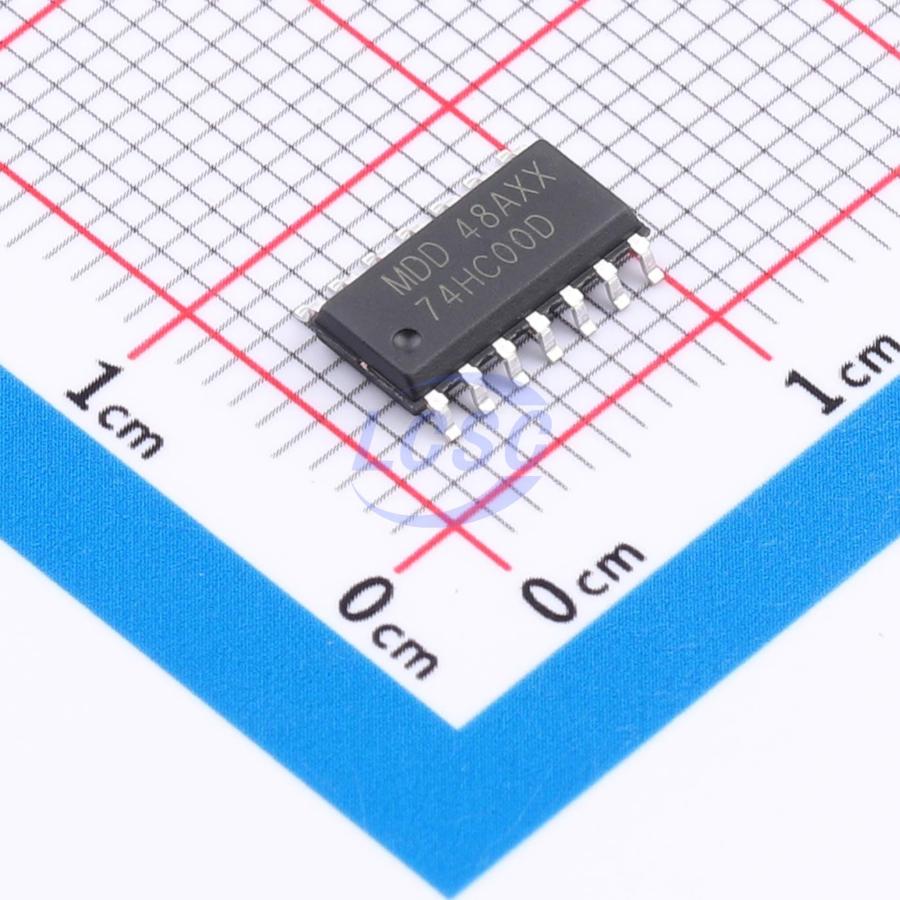

74HC00D

StandardCMOS 2V~6V 25ns@4.5V,15pF 40uA SOP-14L Gates and Inverters

SOP-14LRoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74HC00D
Store part #: C52140403
Package / case: SOP-14L
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,318 in stock

#C52140403

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹17.25	₹17.25
10+	₹13.60	₹136.00
30+	₹11.77	₹353.10
100+	₹10.40	₹1,040.00
500+	₹9.31	₹4,655.00
1,000+	₹8.76	₹8,760.00

Quantity (min 1)

1 × ₹17.25

₹17.25

excl. GST

₹20.36 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74HC00D

₹17.25 for 1 + GST

Specifications

Input Type: StandardCMOS
Logic Family: 74HC
Voltage - Supply: 2V~6V
Propagation Delay: 25ns@4.5V,15pF
Output Logic Level - Low: 400mV
Input Logic Level - Low: 500mV;1.35V;1.8V
Input Logic Level - High: 1.5V;3.15V;4.2V
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 5.9V
Quiescent Current(Iq): 40uA
Current - Output High(IOH): 5.2mA
Number of Channels: 4;2
Current - Output Low(IOL): 5.2mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.296 g

Overview

74HC00 and 74HCT00 are quad 2-input NAND gates. The inputs include clamp diodes, enabling the inputs to be connected to voltages exceeding VCC using current-limiting resistors.

Key features

Wide supply voltage range: 2.0V to 6.0V
High noise immunity
CMOS low power consumption
Latch-up performance exceeds 250mA
JEDEC compliant: JESD8C (2.7V to 3.6V) and JESD7A (2.0V to 6.0V)
Input levels: CMOS levels for 74HC00; TTL levels for 74HCT00
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
Multiple package options
