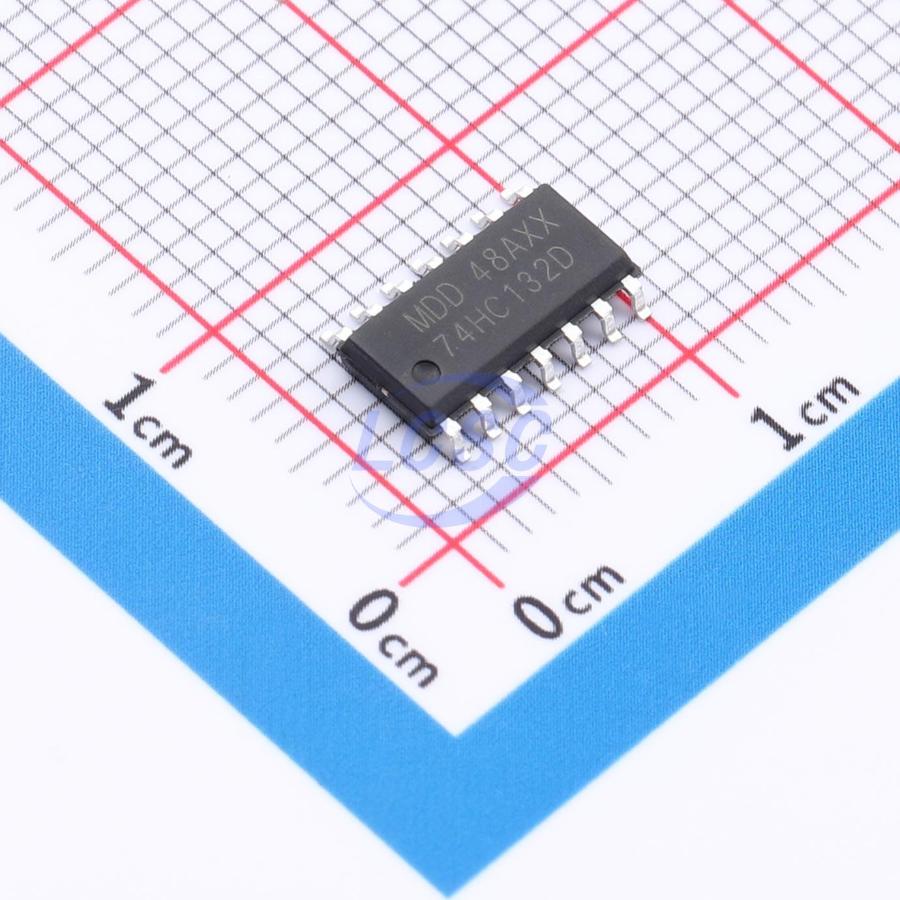

MDD(Microdiode Semiconductor)

74HC132D

Schmitt trigger 2V~6V 25ns@4.5V,15pF 40uA SOP-14L Gates and Inverters

SOP-14LRoHSActive

Manufacturer: MDD(Microdiode Semiconductor)
Manufacturer part #: 74HC132D
Store part #: C52140398
Package / case: SOP-14L
Category: Gates and Inverters
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

3,633 in stock

#C52140398

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
1+	₹30.72	₹30.72
10+	₹24.08	₹240.80
30+	₹21.23	₹636.90
100+	₹17.69	₹1,769.00
500+	₹16.10	₹8,050.00
1,000+	₹15.16	₹15,160.00

Quantity (min 1)

1 × ₹30.72

₹30.72

excl. GST

₹36.25 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 2,500 per reel

74HC132D

₹30.72 for 1 + GST

Specifications

Input Type: Schmitt trigger
Logic Family: 74HC
Voltage - Supply: 2V~6V
Propagation Delay: 25ns@4.5V,15pF
Output Logic Level - Low: 400mV
Operating Temperature: -40℃~+125℃
Output Logic Level - High: 3.7V;4.4V;5.9V
Quiescent Current(Iq): 40uA
Current - Output High(IOH): 4mA
Number of Channels: 4;2
Current - Output Low(IOL): 4mA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 2,500 / Reel
Sold per: Piece
Minimum order: 1
Unit weight: 0.28 g

Overview

The 74HC132 and 74HCT132 are quad 2-input NAND Schmitt trigger devices. The Schmitt trigger inputs convert slowly changing input signals into sharply defined, jitter-free output signals.

Key features

Wide supply voltage range: 2.0V to 6.0V
High noise immunity
CMOS low power consumption
Latch-up performance exceeds 250mA
Unrestricted rise and fall times
JEDEC compliant: JESD8C (2.7V to 3.6V), JESD7A (2.0V to 6.0V)
ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500V; CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
Multiple package options
