HANSCHIP semiconductorDatasheet (PDF)

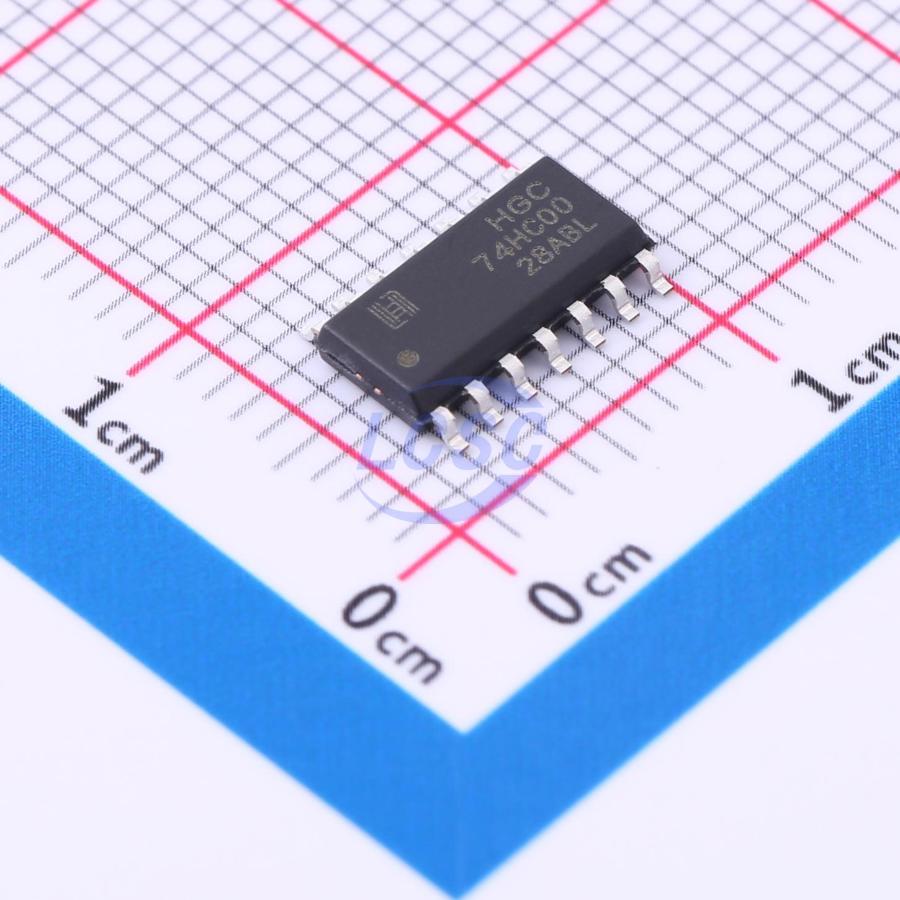

74HC00DRG
NAND Gate IC 4 Channel SOP-14
SOP-14ROHS CompliantActive
Quad 2-Input NAND Gates
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- 74HC00DRG
- Store part #
- C5145449
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
2,410 in stock
#C5145449
Stock & price checked 31 h ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹14.28 | ₹71.40 |
| 50+ | ₹11.46 | ₹573.00 |
| 150+ | ₹10.04 | ₹1,506.00 |
| 500+ | ₹8.98 | ₹4,490.00 |
| 2,500+ | ₹7.32 | ₹18,300.00 |
| 5,000+ | ₹6.91 | ₹34,550.00 |
5 × ₹14.28
₹71.40
excl. GST
₹84.25 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC00DRG
₹71.40 for 5 + GST
Specifications
- Operating Temperature
- -40℃~+85℃
- Input Logic Level - High
- 3.2V
- Input Logic Level - Low
- 2.8V
- Logic Family
- 74HC Series
- Output Logic Level - High
- 2V;4.5V;6V;4.32V;5.81V
- Quiescent Current(Iq)
- 20uA
- Voltage - Supply
- 2V~6V
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Propagation Delay
- 23ns@4.5V,50pF
- Output Logic Level - Low
- 0V;150mV;160mV
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Moisture sensitivity
- MSL 3 (168 hours)
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
74HC00 is a high-speed silicon gate CMOS device with dual-input NAND functionality. Compatible with low-power Schottky TTL (LSTTL) circuits. This circuit complies with JEDEC standard no.7A.
Key features
- Compatible with JEDEC Standard No.8-1A
- ESD capability: Human Body Model (EIA/JESD22-A114-A) exceeds 2000V
- ESD capability: Machine Model (EIA/JESD22-A115-A) exceeds 200V
- Wide operating temperature range: -40~85℃
- Package: DIP-14/SOP-14/TSSOP-14
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC132DRG#C5145444HANSCHIP semiconductor · SOP-14 | HANSCHIP semiconductor | SOP-14 | 1,185 | ₹17.58 · 1,185 in stock | View |
