HANSCHIP semiconductorDatasheet (PDF)

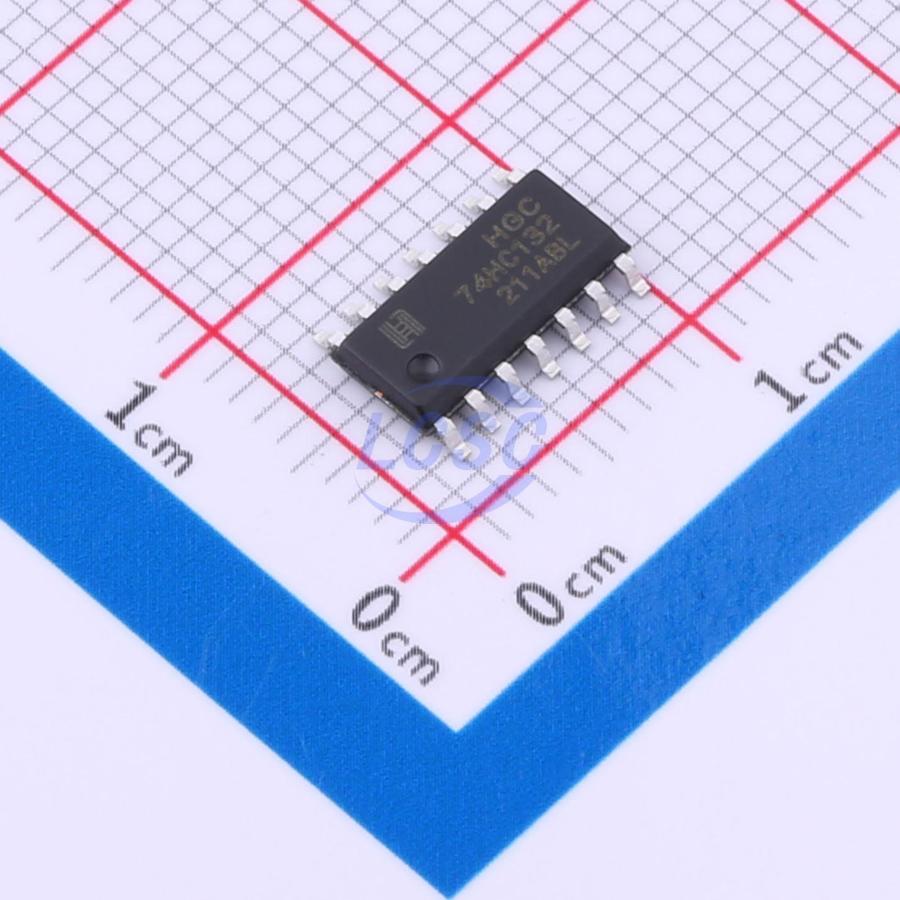

74HC132DRG
Schmitt trigger 2V~6V 31ns@4.5V,50pF 20uA SOP-14 Gates and Inverters RoHS
SOP-14ROHS CompliantActive
Quad 2-Input NAND Gate with Schmitt-Trigger Inputs
- Manufacturer
- HANSCHIP semiconductor
- Manufacturer part #
- 74HC132DRG
- Store part #
- C5145444
- Package / case
- SOP-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
1,185 in stock
#C5145444
Stock & price checked 5 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹17.58 | ₹87.90 |
| 50+ | ₹14.14 | ₹707.00 |
| 150+ | ₹12.42 | ₹1,863.00 |
| 500+ | ₹11.13 | ₹5,565.00 |
| 2,500+ | ₹8.59 | ₹21,475.00 |
| 5,000+ | ₹8.07 | ₹40,350.00 |
5 × ₹17.58
₹87.90
excl. GST
₹103.72 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC132DRG
₹87.90 for 5 + GST
Specifications
- Input Type
- Schmitt trigger
- Logic Family
- 74HC
- Voltage - Supply
- 2V~6V
- Propagation Delay
- 31ns@4.5V,50pF
- Output Logic Level - Low
- 100mV;260mV;330mV
- Operating Temperature
- -40℃~+85℃
- Output Logic Level - High
- 1.9V;4.4V;5.9V
- Quiescent Current(Iq)
- 20uA
- Number of Channels
- 4;2
Packaging & compliance
- RoHS
- ROHS Compliant
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.28 g
Overview
The 74HC132 is identical in pinout to the LS132. The device nputs are compatible with standard CMOS outputs; with pull−up resistors, they are compatible with LSTTL outputs. The HC132 can be used to enhance noise immunity or to square up slowly changing waveforms.
Key features
- Output Drive Capability: 10 LSTTL Loads
- Outputs Directly Interface to CMOS, NMOS, and TTL
- Operating Voltage Range: 2.0 to 6.0 V
- Low Input Current: 1.0 μA
- High Noise Immunity Characteristic of CMOS Devices
- In Compliance with the Requirements as Defined by JEDEC Standard No. 7A
- ESD Performance: HBM > 2000 V; Machine Model > 200 V
- Chip Complexity: 72 FETs or 18 Equivalent Gates
- These are Pb−Free Device
