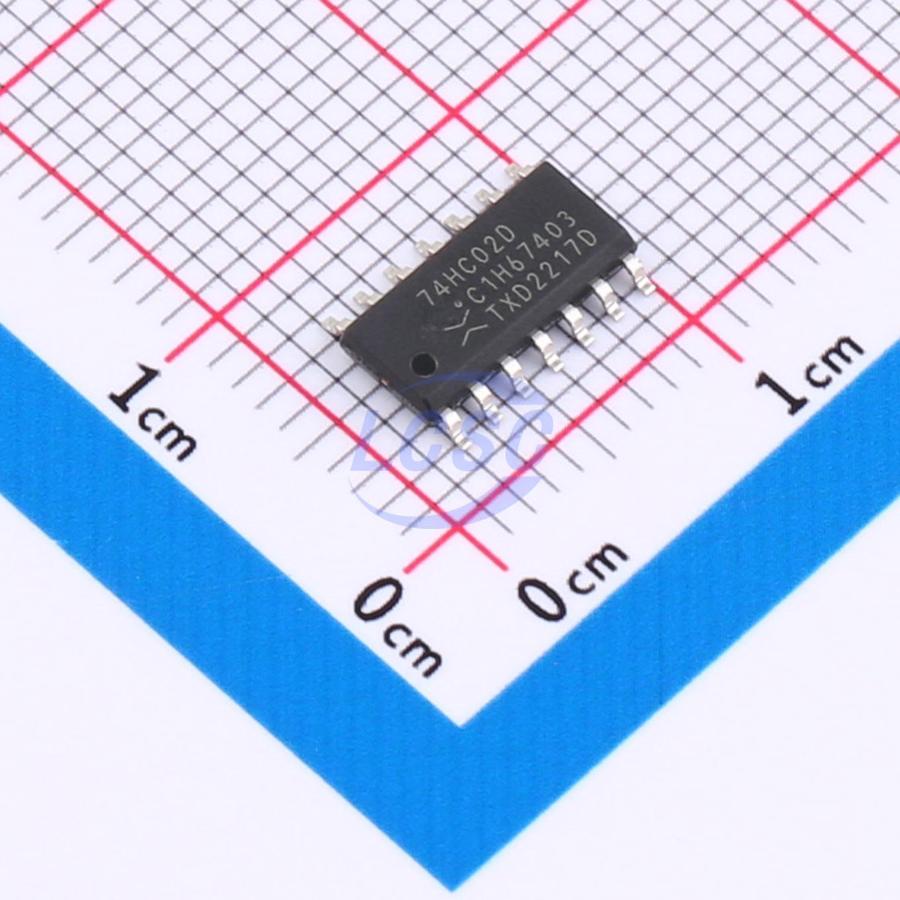

74HC02D,653
StandardCMOS 2V~6V 15ns@6V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quad 2-input NOR gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC02D,653
- Store part #
- C5588
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
46,790 in stock
#C5588
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹20.85 | ₹104.25 |
| 50+ | ₹16.30 | ₹815.00 |
| 150+ | ₹14.35 | ₹2,152.50 |
| 500+ | ₹11.92 | ₹5,960.00 |
| 2,500+ | ₹10.85 | ₹27,125.00 |
| 5,000+ | ₹10.20 | ₹51,000.00 |
5 × ₹20.85
₹104.25
excl. GST
₹123.02 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC02D,653
₹104.25 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 400mV
- Propagation Delay
- 15ns@6V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 5.9V;5.2V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.254 g
Overview
The 74HC02; 74HCT02 is a quad 2-input NOR gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of VCC.
Applications
- Digital logic circuits
- Signal processing
- Control systems
- Computer interfaces
- Communication equipment
- Consumer electronics
- Industrial automation
- Test & measurement equipment
Key features
- Wide supply voltage range from 2.0 V to 6.0 V
- CMOS low power dissipation
- High noise immunity
- Latch-up performance exceeds 100 mA per JESD 78 Class II Level B
- Input levels:
- For 74HC02: CMOS level
- For 74HCT02: TTL level
- Complies with JEDEC standards:
- JESD8C (2.7 V to 3.6 V)
- JESD7A (2.0 V to 6.0 V)
- ESD protection:
- HBM: ANSI/ESDA/JEDEC JS-001 class 2 exceeds 2000 V
- CDM: ANSI/ESDA/JEDEC JS-002 class C3 exceeds 1000 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | SN74HC02QDRQ1#C507232TI · SOIC-14 | TI | SOIC-14 | 53 | ₹70.42 · 53 in stock | View |
 | SN74HC02DR(LX)#C22436973lingxingic · SOP-14 | lingxingic | SOP-14 | 3,155 | ₹11.14 · 3,155 in stock | View |
 | 74HC02D-Q100,118#C503406Nexperia · SO-14 | Nexperia | SO-14 | 145 | ₹23.52 · 145 in stock | View |
| MM74HC02M#C897296onsemi · SOIC-14 | onsemi | SOIC-14 | 3 | ₹40.80 · 3 in stock | View | |
 | SN74LS02DR(LX)#C22374090lingxingic · SOP-14 | lingxingic | SOP-14 | 775 | ₹26.33 · 775 in stock | View |
