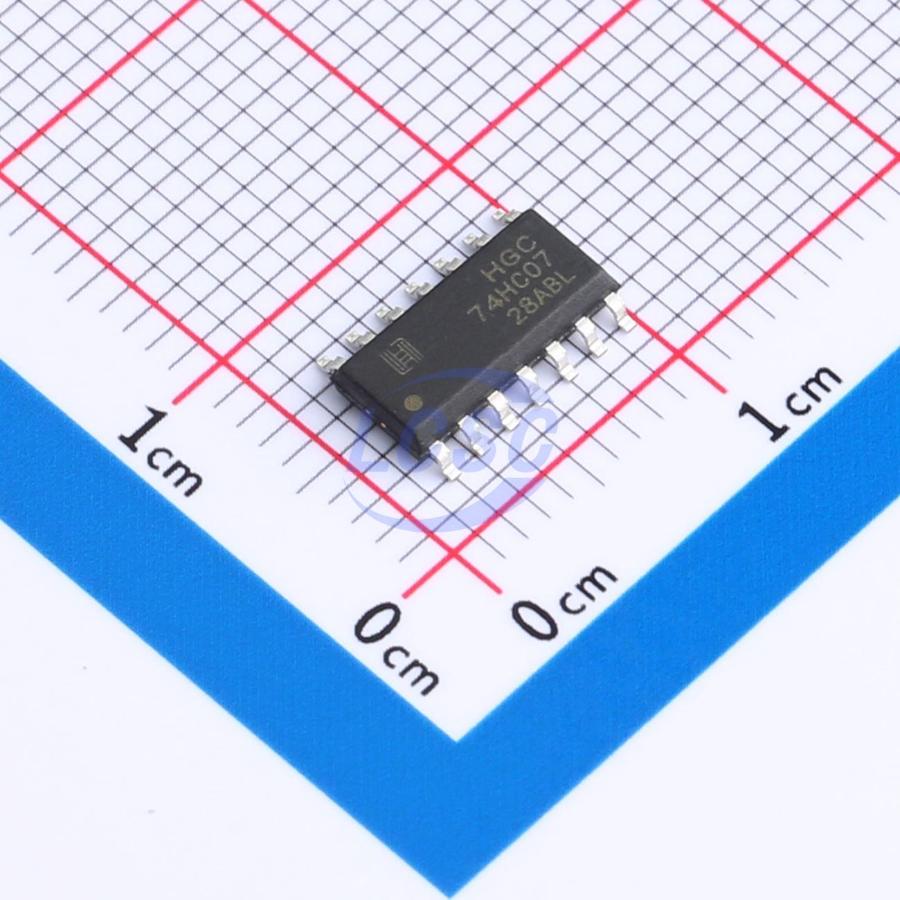

74HC07DRG

The 74HC07 is a high-speed CMOS hex open-drain buffer fabricated using silicon gate C2MOS technology. The internal circuit consists of two stages including buffered outputs, providing high noise immunity and stable output. All inputs are equipped with ESD and transient overvoltage protection circuits.

Key features

• High speed: propagation delay tPD = 6ns (typical), supply voltage VCC = 6V
• Low power: supply current ICC = 1μA (maximum), ambient temperature TA = 25°C
• High noise immunity: high-level noise margin VNIH = low-level noise margin VNIL = 28%VCC (minimum)
• Wide operating voltage range: VCC = 2V to 6V
• Pin and function compatible with 74 series 07
• Package types: DIP-14, SOP-14, TSSOP-14
