74HC07NS14ARDQ

2V~6V 6 6 SOP-14 Buffers, Drivers, Receivers, Transceivers

SOP-14RoHSActive

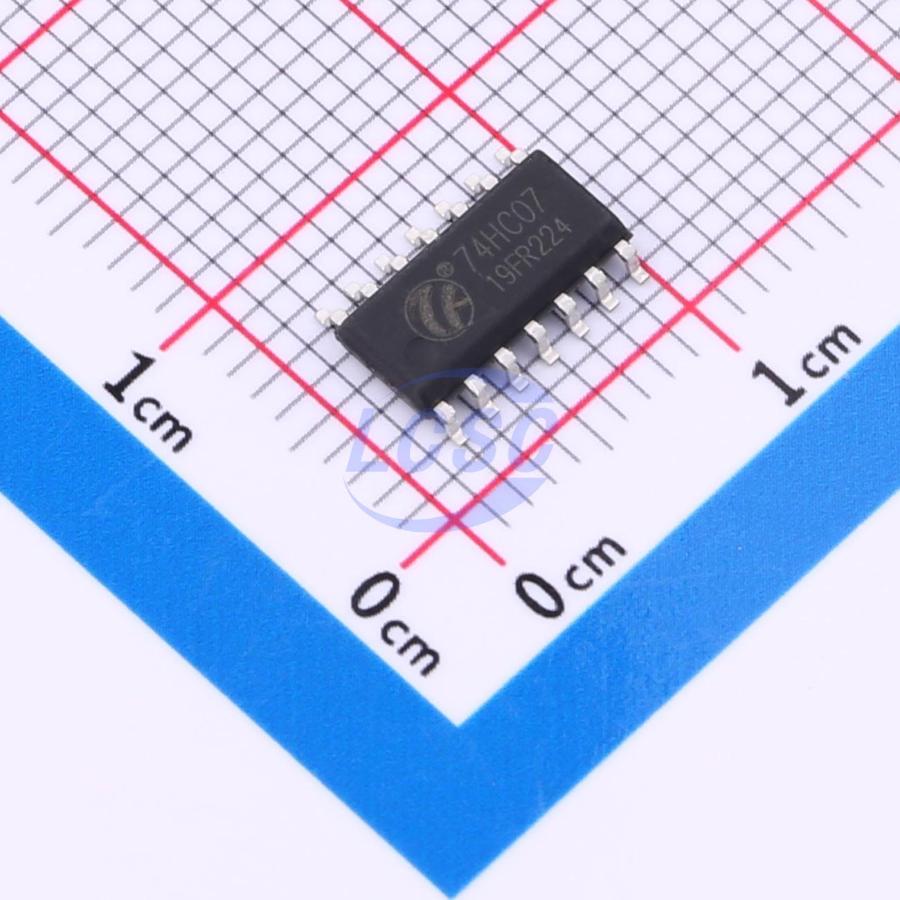

74HC07 Six-Channel Open-Drain Buffer

Manufacturer: GR
Manufacturer part #: 74HC07NS14ARDQ
Store part #: C42394259
Package / case: SOP-14
Category: Buffers, Drivers, Receivers, Transceivers
Packaging: Tape & Reel (TR)

Datasheet (PDF)

Every Order Guarantee

100% Authentic · 30-Day Return or Replacement · policy

2,245 in stock

#C42394259

Stock & price checked 6 days ago

Quantity	Unit price	Pack price
5+	₹14.41	₹72.05
50+	₹11.39	₹569.50
150+	₹9.88	₹1,482.00
500+	₹8.75	₹4,375.00
2,500+	₹7.85	₹19,625.00
4,000+	₹7.40	₹29,600.00

Quantity (min 5, multiples of 5)

5 × ₹14.41

₹72.05

excl. GST

₹85.02 incl. 18% GST

Need volume or a scheduled delivery? Request a quote

Dispatch in 7–10 working days
GST invoice with every order
Standard pack: 4,000 per reel

74HC07NS14ARDQ

₹72.05 for 5 + GST

Specifications

Series: 74HC
Voltage - Supply: 2V~6V
Current - Output Low(IOL): 5.2mA
Output Type: Open-drain
Number of Bits per Element: 6
Channel Type: Unidirectional
Number of Elements: 6
Operating Temperature: -40℃~+85℃
Quiescent Supply Current: 10uA

Packaging & compliance

RoHS: RoHS
Lifecycle: Active
Packaging: Tape & Reel (TR)
Standard pack: 4,000 / Reel
Sold per: Piece
Minimum order: 5 (multiples of 5)
Unit weight: 0.273 g

Overview

The 74HC07 is an high speed CMOS HEX OPEN DRAIN BUFFER. The internal circuit is composed of 2 stages including buffer output, which enables high noise immunity and stable output. All inputs are equipped with protection circuits against static discharge and transient voltage.
