NexperiaDatasheet (PDF)

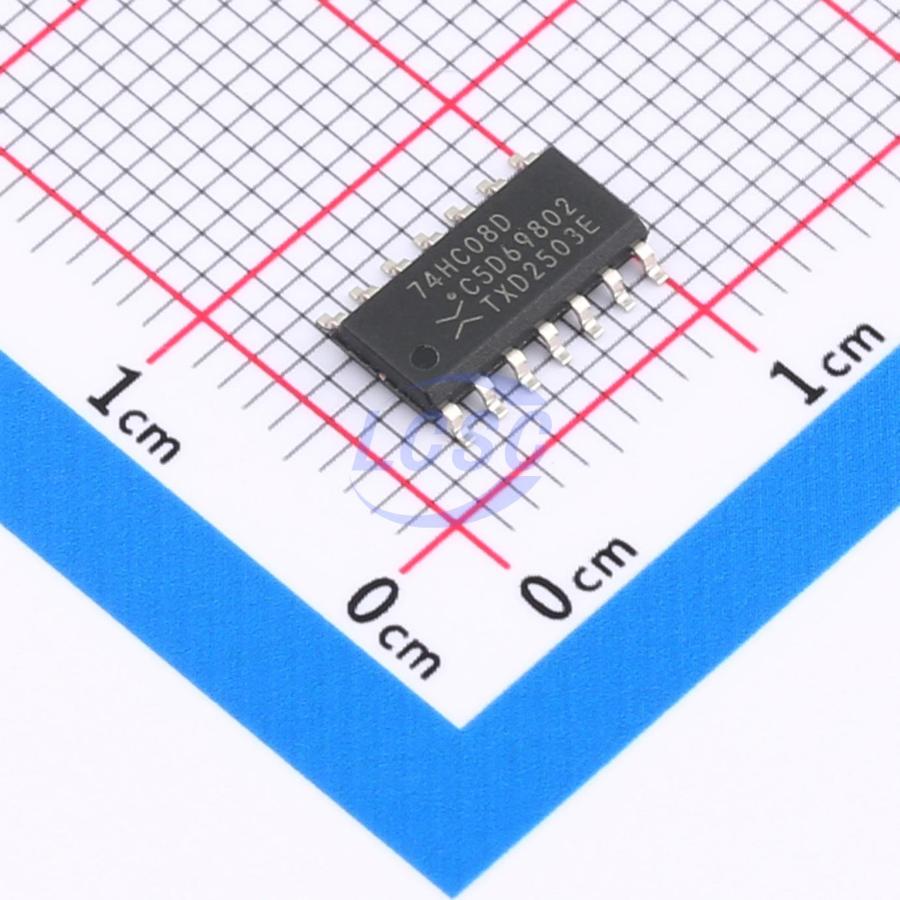

74HC08D,653
StandardCMOS 2V~6V 27ns@4.5V,50pF 2uA SOIC-14 Gates and Inverters RoHS
SOIC-14ROHS3 CompliantActive
Quad 2-input AND gate
- Manufacturer
- Nexperia
- Manufacturer part #
- 74HC08D,653
- Store part #
- C5593
- Package / case
- SOIC-14
- Category
- Gates and Inverters
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
57,080 in stock
#C5593
Stock & price checked 6 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 5+ | ₹16.76 | ₹83.80 |
| 50+ | ₹13.18 | ₹659.00 |
| 150+ | ₹11.38 | ₹1,707.00 |
| 500+ | ₹10.04 | ₹5,020.00 |
| 2,500+ | ₹8.97 | ₹22,425.00 |
| 5,000+ | ₹8.43 | ₹42,150.00 |
5 × ₹16.76
₹83.80
excl. GST
₹98.88 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC08D,653
₹83.80 for 5 + GST
Specifications
- Input Type
- StandardCMOS
- Logic Family
- 74HC Series
- Voltage - Supply
- 2V~6V
- Output Logic Level - Low
- 100mV;400mV
- Propagation Delay
- 27ns@4.5V,50pF
- Input Logic Level - High
- 1.5V~4.2V
- Input Logic Level - Low
- 500mV~1.8V
- Operating Temperature
- -40℃~+125℃
- Output Logic Level - High
- 1.9V;3.7V;5.2V
- Quiescent Current(Iq)
- 2uA
- Current - Output High(IOH)
- 5.2mA
- Number of Channels
- 4;2
- Current - Output Low(IOL)
- 5.2mA
Packaging & compliance
- RoHS
- ROHS3 Compliant
- Lifecycle
- Active
- ECCN
- EAR99
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 5 (multiples of 5)
- Unit weight
- 0.323 g
Overview
The 74HC08; 74HCT08 is a quad 2-input AND gate. Inputs include clamp diodes. This enables the use of current limiting resistors to interface inputs to voltages in excess of V_CC.
Key features
- Complies with JEDEC standard JESD7A
- Input levels: For 74HC08: CMOS level For 74HCT08: TTL level
- ESD protection: HBM JESD22-A114F exceeds 2000 V MM JESD22-A115-A exceeds 200 V
- Multiple package options
- Specified from -40 ℃ to +85 ℃ and from -40 ℃ to +125 ℃
Alternatives
Similar parts — check the datasheet before substituting.
| Part | Manufacturer | Package | Stock | Price from (excl. GST) | Action | |
|---|---|---|---|---|---|---|
 | 74HC08D-Q100,118#C546514Nexperia · SOP-14 | Nexperia | SOP-14 | 1,795 | ₹26.94 · 1,795 in stock | View |
 | SN74HC08QDRG4Q1#C2866969TI · SOIC-14 | TI | SOIC-14 | 89 | ₹95.04 · 89 in stock | View |
 | SN74HC08QDRQ1#C2866596TI · SOIC-14 | TI | SOIC-14 | 210 | ₹66.28 · 210 in stock | View |
 | 74HC08D#C52140400MDD(Microdiode Semiconductor) · SOP-14L | MDD(Microdiode Semiconductor) | SOP-14L | 6 | ₹20.48 · 6 in stock | View |
 | SN74HC08DR(LX)#C22436981lingxingic · SOP-14 | lingxingic | SOP-14 | 2,740 | ₹10.57 · 2,740 in stock | View |
