MDD(Microdiode Semiconductor)Datasheet (PDF)

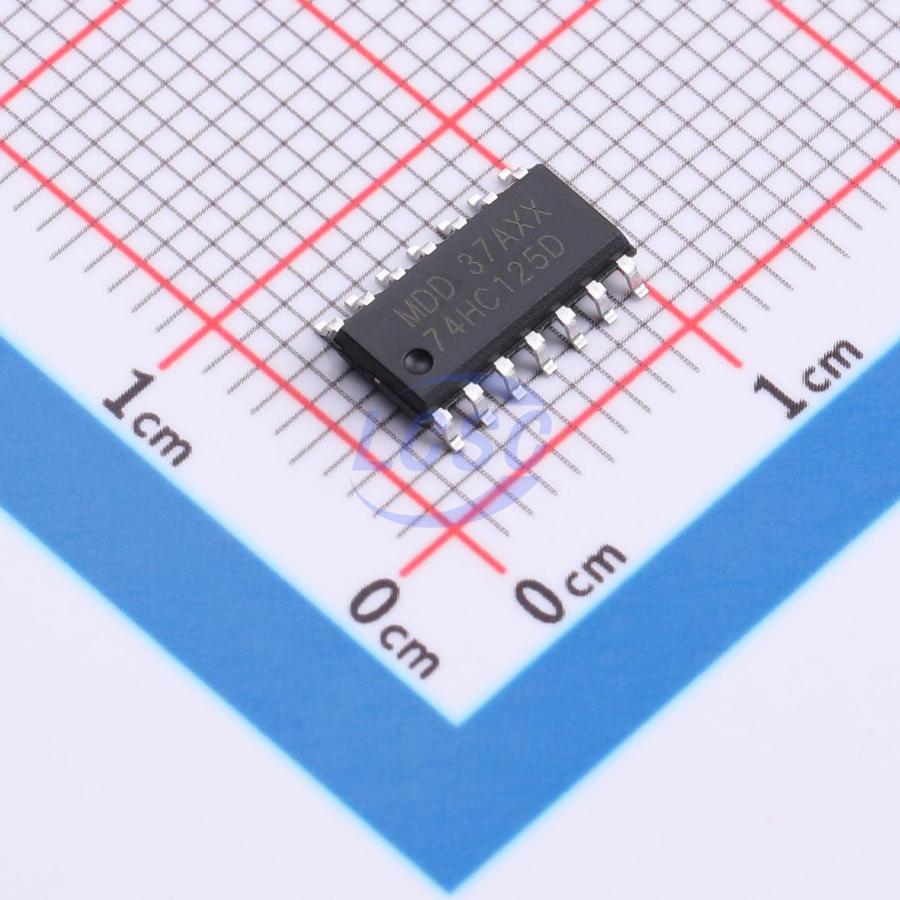

74HC125D
StandardCMOS 2V~6V 4 20ns@6.0V,15pF SOP-14L Buffers, Drivers, Receivers, Transceivers
SOP-14LRoHSActive
- Manufacturer
- MDD(Microdiode Semiconductor)
- Manufacturer part #
- 74HC125D
- Store part #
- C52140399
- Package / case
- SOP-14L
- Packaging
- Tape & Reel (TR)
Every Order Guarantee
100% Authentic · 30-Day Return or Replacement · policy
7,115 in stock
#C52140399
Stock & price checked 7 days ago
| Quantity | Unit price | Pack price |
|---|---|---|
| 1+ | ₹20.48 | ₹20.48 |
| 10+ | ₹16.06 | ₹160.60 |
| 30+ | ₹14.16 | ₹424.80 |
| 100+ | ₹11.79 | ₹1,179.00 |
| 500+ | ₹10.74 | ₹5,370.00 |
| 1,000+ | ₹10.11 | ₹10,110.00 |
1 × ₹20.48
₹20.48
excl. GST
₹24.17 incl. 18% GST
- Dispatch in 7–10 working days
- GST invoice with every order
- Standard pack: 2,500 per reel
74HC125D
₹20.48 for 1 + GST
Specifications
- Function
- Output enable
- Current - Output High(IOH)
- 7.8mA
- Input type
- StandardCMOS
- Series
- 74HC
- Voltage - Supply
- 2V~6V
- Output Type
- Tri-State
- Current - Output Low(IOL)
- 7.8mA
- Channel Type
- Unidirectional
- Operating Temperature
- -40℃~+125℃
- Number of Elements
- 4
- Quiescent Supply Current
- 40uA
- Propagation Delay
- 20ns@6.0V,15pF
Packaging & compliance
- RoHS
- RoHS
- Lifecycle
- Active
- Packaging
- Tape & Reel (TR)
- Standard pack
- 2,500 / Reel
- Sold per
- Piece
- Minimum order
- 1
- Unit weight
- 0.347 g
Overview
The 74HC125 and 74HCT125 are quad buffer/line drivers with 3-state outputs controlled by output enable inputs. When the output enable input is HIGH, the outputs are in a high-impedance OFF state. Inputs include clamping diodes, enabling the use of current-limiting resistors to interface inputs to voltages exceeding the supply voltage.
Key features
- Wide supply voltage range: 2.0V to 6.0V
- High noise immunity
- CMOS low power consumption
- Latch-up performance exceeds 250mA
- JEDEC compliant: JESD8C and JESD7A
- Input levels: CMOS for 74HC125, TTL for 74HCT125
- ESD protection: HBM ANSI/ESDA/JEDEC JS-001 Class 2 exceeds 3500V, CDM ANSI/ESDA/JEDEC JS-002 Class C3 exceeds 2000V
- Multiple package options
